GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRAMEHOLDERSTANDPILLION RIDER HANDLEFOOTRESTFUEL TANKFUEL TANK COVER (GSX250FRL)FUEL TANK COVER (GSX250FRLZ)FUEL TANK COVER (GSX250FRLX)EVAP SYSTEMFRAME COVER (GSX250FRLZ)FRAME COVER (GSX250FRLX)HANDLE LEVERSTEERING STEMREAR FENDERFRAME COVER GSX250FRL)FRONT WHEELCOWLING BODY (GSX250FRLX)FRAME LOWER COVER (GSX250FRLZ)HYDRAULIC UNITFRONT CALIPERCOWLING BODY (GSX250FRL)FRAME LOWER COVER (GSX250FRLX)FRONT BRAKE HOSEFRONT MASTER CYLINDERREAR SWINGINGARMUNDER COWLINGREAR SHOCK ABSORBERFRAME LOWER COVER (GSX250FRL)REAR WHEELSIDE COWLING (GSX250FRLZ)REAR CALIPERREAR MASTER CYLINDERFRONT FENDER (GSX250FRLZ)FRONT FENDER (GSX250FRLX)SIDE COWLING (GSX250FRLX)SIDE COWLING (GSX250FRL)SEATFRONT FORK DAMPERFRONT FENDER (GSX250FRL)HANDLEBARLABEL

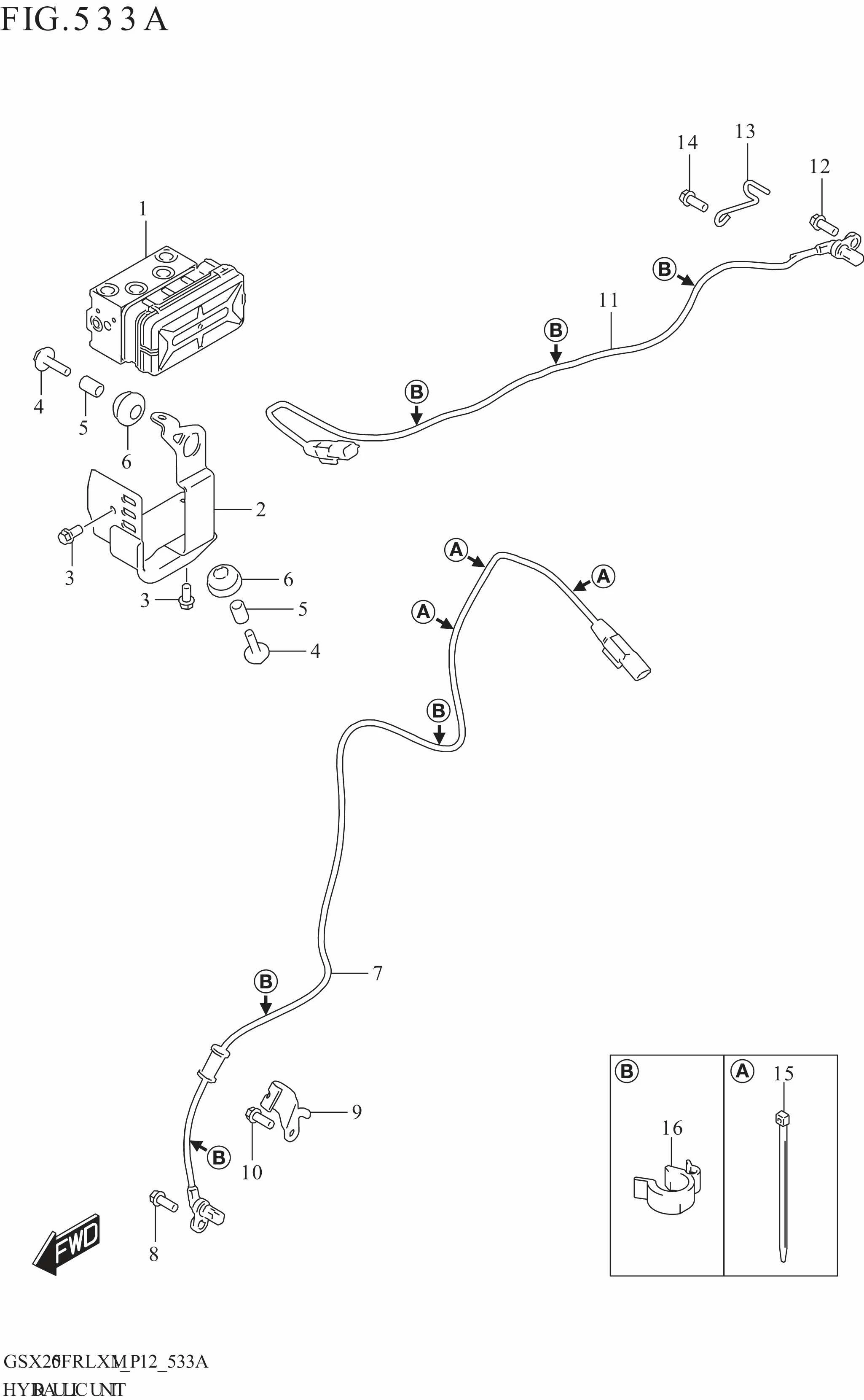

HYDRAULIC UNIT

HYDRAULIC UNIT
No No. Part Description Qty Price Per Pcs Remarks
1 55610-41K00-000 UNIT ASSY,HYDRAULIC ABS 1 Rp5.955.500
2 55660-41K00-000 HOLDER,HYDR UNIT ABS 1 Rp43.000
3 01547-0610A-000
SUB: 01547-0612B-000		 BOLT 2 Rp3.000
4 55661-34J00-000 BOLT,HYDR UNIT MTG 2 Rp13.500
5 55662-10G00-000 SPACER,HYDR UNIT MTG (#05) 2 Rp39.000
6 55663-34J00-000 RUBBER,HYDR UNIT MTG 2 Rp42.000
7 55710-41K00-000 SENSOR,FR WHEEL SPEED 1 Rp347.500
8 01547-0616A-000
SUB: 01547-0616B-000		 BOLT 1 Rp6.500
9 55731-41K00-000 CLAMP,FR WHL SPD SENSOR 1 Rp11.500
10 01547-0616A-000
SUB: 01547-0616B-000		 BOLT 1 Rp6.500
11 65710-41K00-000 SENSOR,RR WHEEL SPEED 1 Rp353.500
12 01547-0616A-000
SUB: 01547-0616B-000		 BOLT 1 Rp6.500
13 65741-41K00-000 GUIDE,RR WHL SPEED SENSOR LEAD 1 Rp17.500
14 01547-0616A-000
SUB: 01547-0616B-000		 BOLT 1 Rp6.500
15 09407-14407-000 CLAMP (L:145) 4 Rp18.500
16 55734-27K00-000 CLAMP,SENSOR 6 Rp9.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
