GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRAMEHOLDERSTANDPILLION RIDER HANDLEFOOTRESTFUEL TANKFUEL TANK COVER (GSX250FRL)FUEL TANK COVER (GSX250FRLZ)FUEL TANK COVER (GSX250FRLX)EVAP SYSTEMFRAME COVER (GSX250FRLZ)FRAME COVER (GSX250FRLX)HANDLE LEVERSTEERING STEMREAR FENDERFRAME COVER GSX250FRL)FRONT WHEELCOWLING BODY (GSX250FRLX)FRAME LOWER COVER (GSX250FRLZ)HYDRAULIC UNITFRONT CALIPERCOWLING BODY (GSX250FRL)FRAME LOWER COVER (GSX250FRLX)FRONT BRAKE HOSEFRONT MASTER CYLINDERREAR SWINGINGARMUNDER COWLINGREAR SHOCK ABSORBERFRAME LOWER COVER (GSX250FRL)REAR WHEELSIDE COWLING (GSX250FRLZ)REAR CALIPERREAR MASTER CYLINDERFRONT FENDER (GSX250FRLZ)FRONT FENDER (GSX250FRLX)SIDE COWLING (GSX250FRLX)SIDE COWLING (GSX250FRL)SEATFRONT FORK DAMPERFRONT FENDER (GSX250FRL)HANDLEBARLABEL

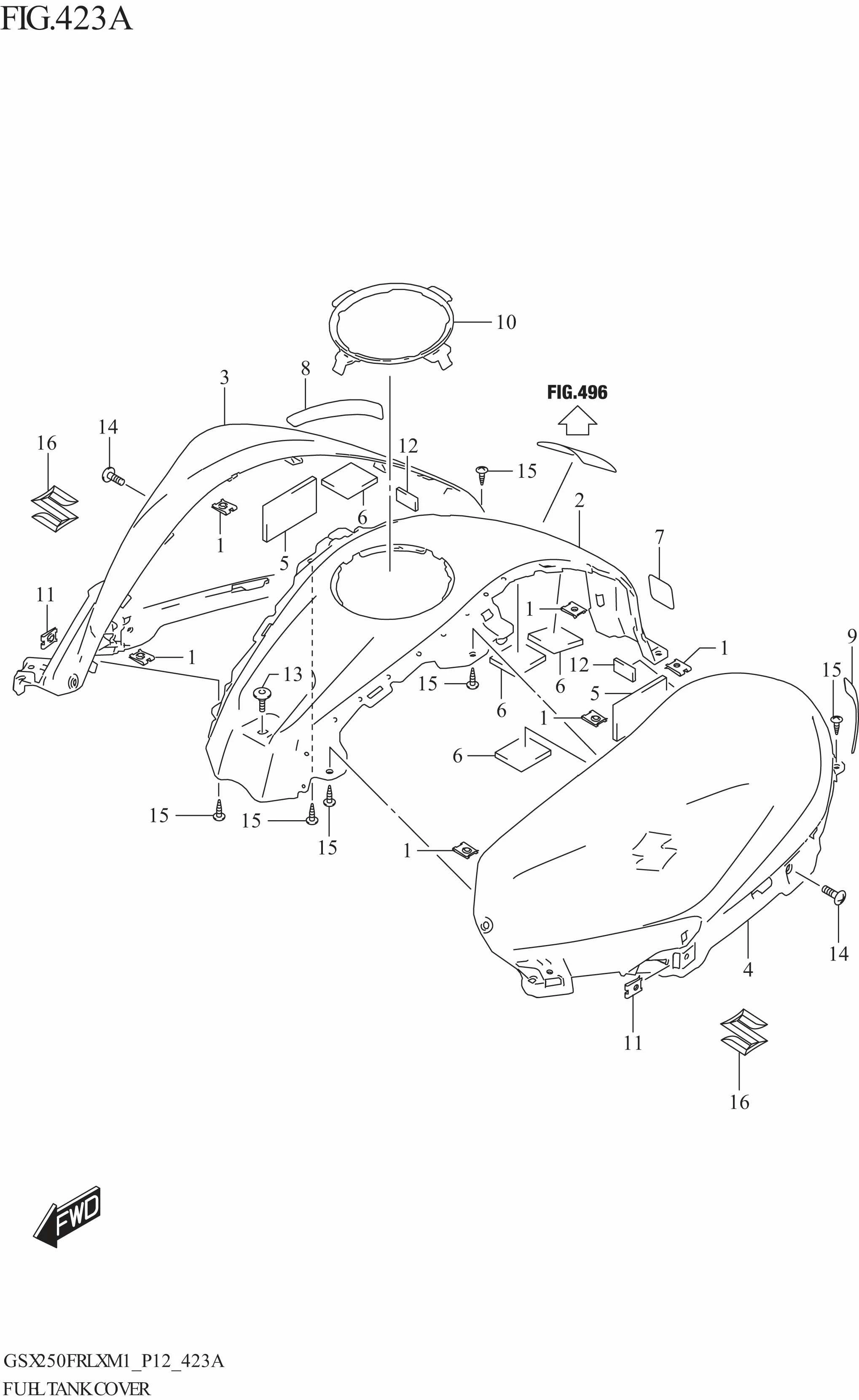

FUEL TANK COVER (GSX250FRL)

FUEL TANK COVER (GSX250FRL)
No No. Part Description Qty Price Per Pcs Remarks
1 09148-05L04-000 NUT 6 Rp7.500
2 44171-41K00-YKV COVER,FUEL TANK CENTER (BLACK) 1 Rp229.500
3 44181-41K00-YKV COVER,FUEL TANK,RH (BLACK) 1 Rp575.000
4 44191-41K00-YKV COVER,FUEL TANK,LH (BLACK) 2 Rp575.000
5 44271-34J01-000 CUSHION,FUEL TANK COVER 2 Rp31.500
6 44282-34J01-000 CUSHION,FUEL TANK COVER CTR 4 Rp5.500
7 44283-41K00-000 PROTECTOR,TANK COVER CTR 1 Rp5.500
8 44284-41K00-000 PROTECTOR,TANK COV NO.1 RH 1 Rp9.000
9 44285-41K00-000 PROTECTOR,TANK COV NO.1 LH 1 Rp9.000
10 44295-41K00-000 RUBBER,FUEL TANK COVER 2 Rp16.500
11 47349-34J01-000 NUT,BODY COWL UPPER (M5) 2 Rp5.500
12 48178-31C00-000 CUSHION (15X30X3) 2 Rp2.500
13 09139-05096-000 BOLT (5X13) 1 Rp24.000
14 DISCONTINUE
SUB: 02142-0608A-000		 SCREW 2 -
15 03541-0512A-000 SCREW 6 Rp3.500
16 68311-27K00-000 EMBLEM,S 2 Rp40.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
