GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRAMEHOLDERSTANDPILLION RIDER HANDLEFOOTRESTFUEL TANKFUEL TANK COVER (GSX250FRL)FUEL TANK COVER (GSX250FRLZ)FUEL TANK COVER (GSX250FRLX)EVAP SYSTEMFRAME COVER (GSX250FRLZ)FRAME COVER (GSX250FRLX)HANDLE LEVERSTEERING STEMREAR FENDERFRAME COVER GSX250FRL)FRONT WHEELCOWLING BODY (GSX250FRLX)FRAME LOWER COVER (GSX250FRLZ)HYDRAULIC UNITFRONT CALIPERCOWLING BODY (GSX250FRL)FRAME LOWER COVER (GSX250FRLX)FRONT BRAKE HOSEFRONT MASTER CYLINDERREAR SWINGINGARMUNDER COWLINGREAR SHOCK ABSORBERFRAME LOWER COVER (GSX250FRL)REAR WHEELSIDE COWLING (GSX250FRLZ)REAR CALIPERREAR MASTER CYLINDERFRONT FENDER (GSX250FRLZ)FRONT FENDER (GSX250FRLX)SIDE COWLING (GSX250FRLX)SIDE COWLING (GSX250FRL)SEATFRONT FORK DAMPERFRONT FENDER (GSX250FRL)HANDLEBARLABEL

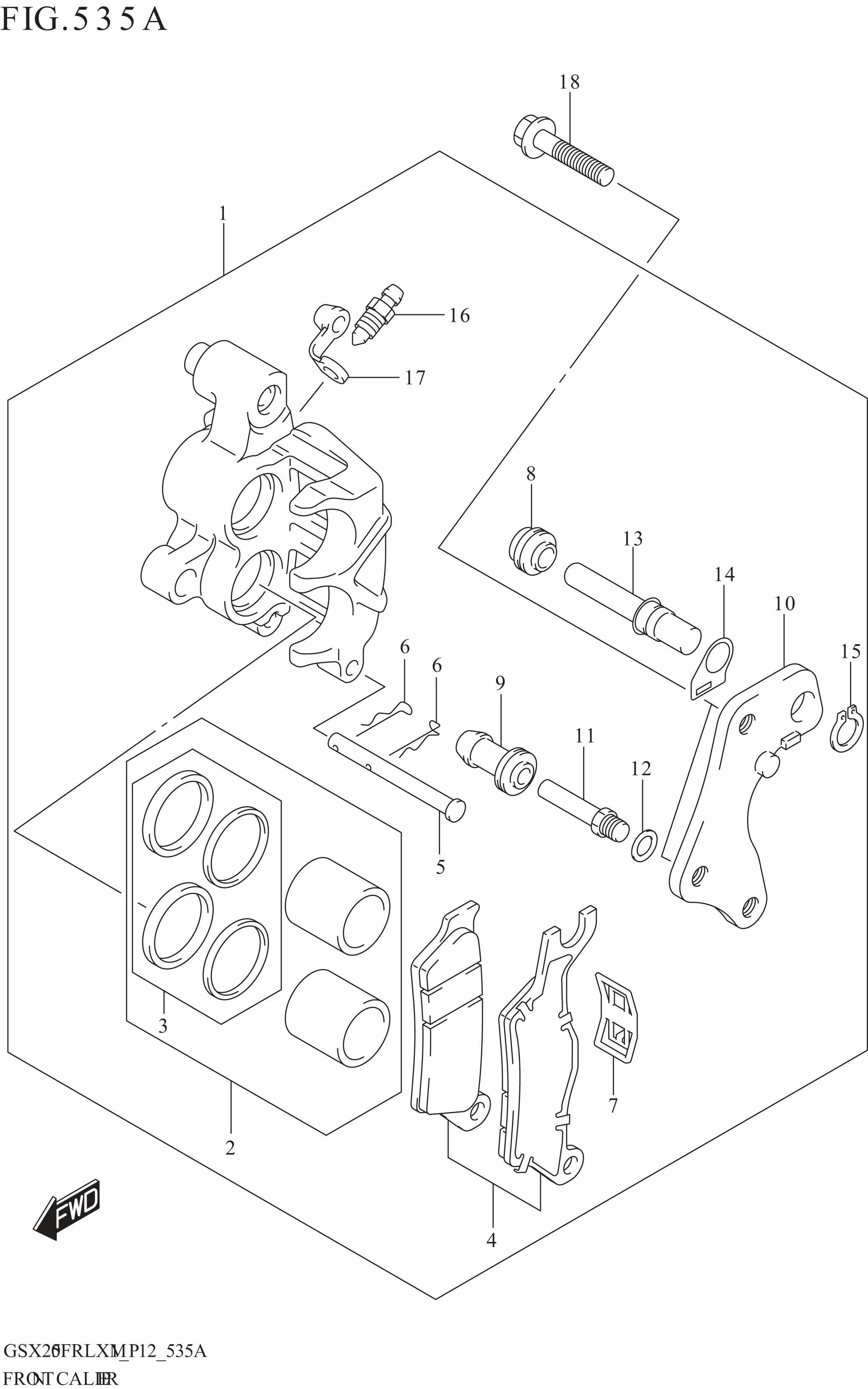

FRONT CALIPER

FRONT CALIPER
No No. Part Description Qty Price Per Pcs Remarks
1 59100-34J40-000 CALIPER ASSY,FRONT RH 1 Rp979.000
2 59100-34870-000 .PISTON SET 1 Rp117.500
3 59100-34860-000 ..SEAL SET,PISTON 1 Rp78.500
4 59100-34891-000 .PAD SET 1 Rp309.500
5 59141-34J10-000 .PIN,PAD 1 Rp21.500
6 59746-34J00-000 .CLIP 2 Rp11.500
7 59315-34J00-000 .SPRING,PAD 1 Rp18.000
8 59108-34J00-000 .DUST COVER 1 Rp13.500
9 59109-34J00-000 .INSULATOR 1 Rp15.500
10 59351-34J00-000 .BRACKET 1 Rp75.000
11 DISCONTINUE
SUB: 59187-34J00-000		 ..PIN 1 -
12 DISCONTINUE
SUB: 59188-34J00-000		 ..SPACER 1 -
13 DISCONTINUE
SUB: 59382-34J00-000		 ..PIN 1 -
14 DISCONTINUE
SUB: 59145-34J00-000		 ..STOPPER 1 -
15 DISCONTINUE
SUB: 59665-34J00-000		 ..CIRCLIP 1 -
16 59121-30H00-000 .SCREW,BLEEDER 1 Rp18.000
17 59122-30H00-000 .CAP,BLEEDER 1 Rp11.000
18 01550-0835A-000 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
