GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRAMEHOLDERSTANDPILLION RIDER HANDLEFOOTRESTFUEL TANKFUEL TANK COVER (GSX250FRL)FUEL TANK COVER (GSX250FRLZ)FUEL TANK COVER (GSX250FRLX)EVAP SYSTEMFRAME COVER (GSX250FRLZ)FRAME COVER (GSX250FRLX)HANDLE LEVERSTEERING STEMREAR FENDERFRAME COVER GSX250FRL)FRONT WHEELCOWLING BODY (GSX250FRLX)FRAME LOWER COVER (GSX250FRLZ)HYDRAULIC UNITFRONT CALIPERCOWLING BODY (GSX250FRL)FRAME LOWER COVER (GSX250FRLX)FRONT BRAKE HOSEFRONT MASTER CYLINDERREAR SWINGINGARMUNDER COWLINGREAR SHOCK ABSORBERFRAME LOWER COVER (GSX250FRL)REAR WHEELSIDE COWLING (GSX250FRLZ)REAR CALIPERREAR MASTER CYLINDERFRONT FENDER (GSX250FRLZ)FRONT FENDER (GSX250FRLX)SIDE COWLING (GSX250FRLX)SIDE COWLING (GSX250FRL)SEATFRONT FORK DAMPERFRONT FENDER (GSX250FRL)HANDLEBARLABEL

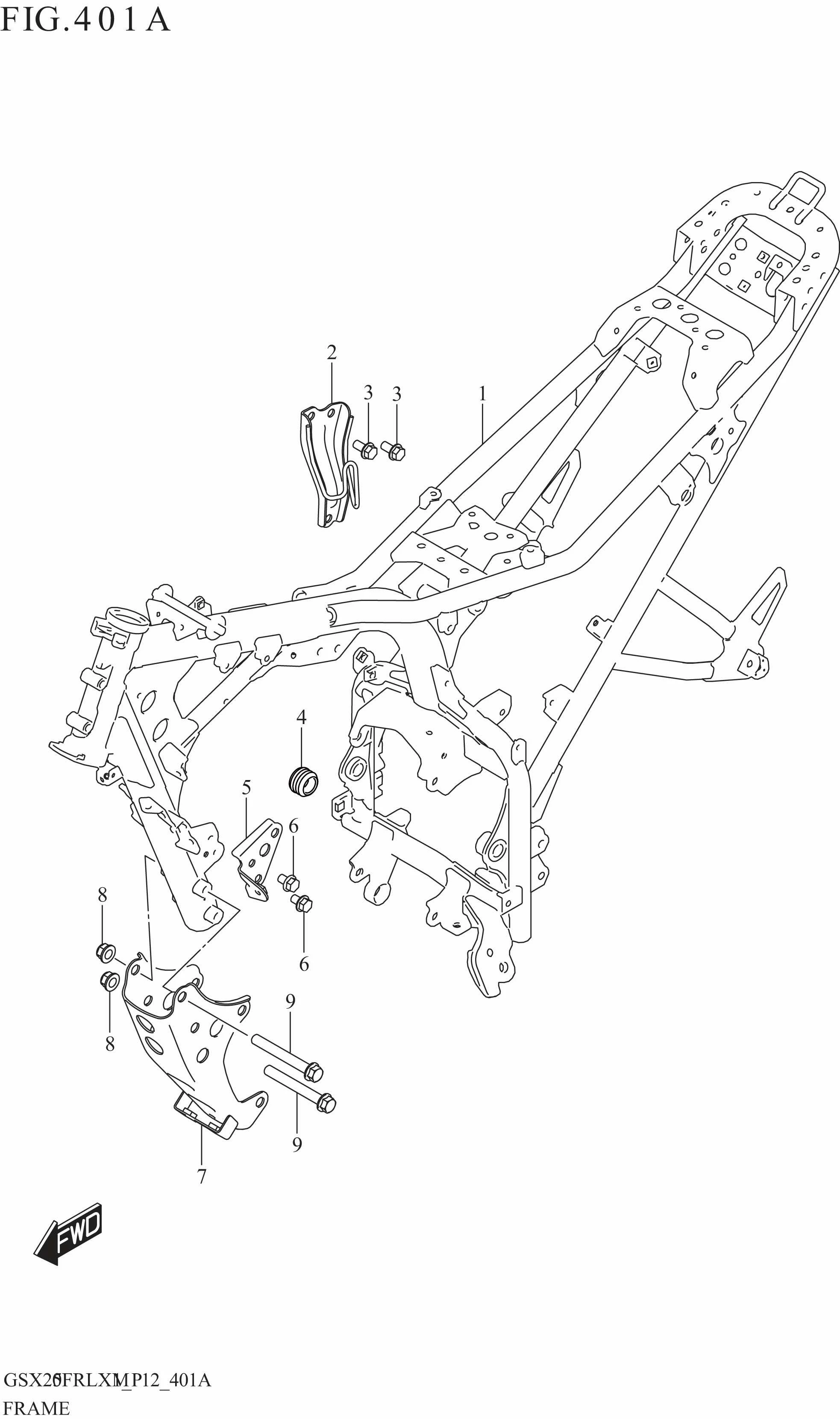

FRAME

FRAME
No No. Part Description Qty Price Per Pcs Remarks
1 41100-41K11-000 FRAME 1 Rp2.945.000
2 41980-41K00-000 PLATE,ENG MTG UPPER 1 Rp57.000
3 01550-0816A-000 BOLT 2 Rp6.000
4 43585-27K00-000 CAP,FRAME BRIDGE LOWER 1 Rp5.500
5 41994-41K00-000 PLATE,ENG MTG FRONT 1 Rp20.000
6 01550-0812B-000 BOLT 2 Rp5.500
7 41990-41K00-000 BRACKET,ENG MTG LOWER 1 Rp172.500
8 08319-3110A-000
SUB: 08319-3110B-000		 NUT 2 Rp4.500
9 41933-34J00-000 BOLT,ENG MTG LOWER 2 Rp30.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
