GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRAMEHOLDERSTANDPILLION RIDER HANDLEFOOTRESTFUEL TANKFUEL TANK COVER (GSX250FRL)FUEL TANK COVER (GSX250FRLZ)FUEL TANK COVER (GSX250FRLX)EVAP SYSTEMFRAME COVER (GSX250FRLZ)FRAME COVER (GSX250FRLX)HANDLE LEVERSTEERING STEMREAR FENDERFRAME COVER GSX250FRL)FRONT WHEELCOWLING BODY (GSX250FRLX)FRAME LOWER COVER (GSX250FRLZ)HYDRAULIC UNITFRONT CALIPERCOWLING BODY (GSX250FRL)FRAME LOWER COVER (GSX250FRLX)FRONT BRAKE HOSEFRONT MASTER CYLINDERREAR SWINGINGARMUNDER COWLINGREAR SHOCK ABSORBERFRAME LOWER COVER (GSX250FRL)REAR WHEELSIDE COWLING (GSX250FRLZ)REAR CALIPERREAR MASTER CYLINDERFRONT FENDER (GSX250FRLZ)FRONT FENDER (GSX250FRLX)SIDE COWLING (GSX250FRLX)SIDE COWLING (GSX250FRL)SEATFRONT FORK DAMPERFRONT FENDER (GSX250FRL)HANDLEBARLABEL

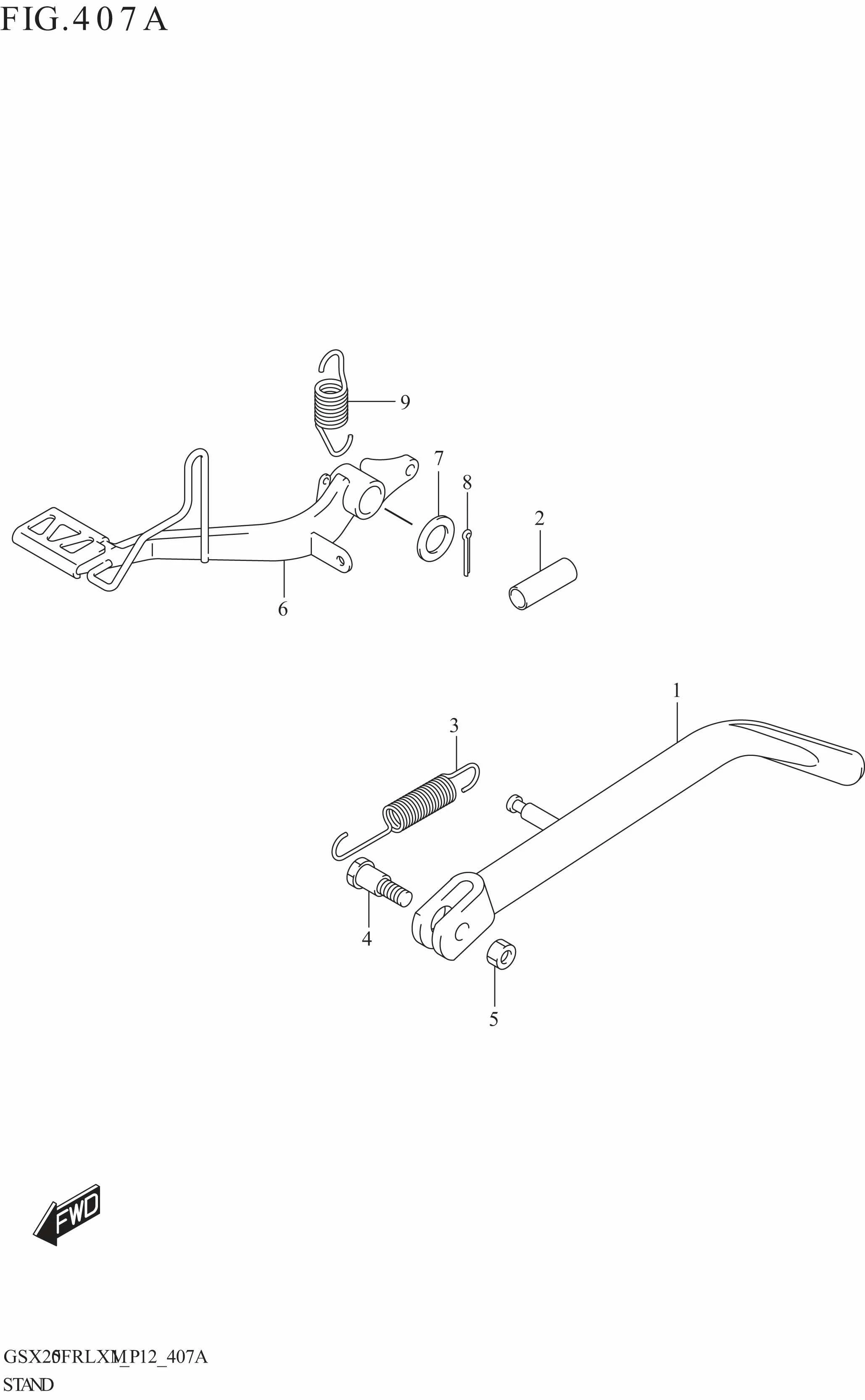

STAND

STAND
No No. Part Description Qty Price Per Pcs Remarks
1 42310-27K10-000 STAND,PROP 1 Rp86.000
2 42391-41K00-000 TUBE,PROP STAND SPRING 1 Rp5.000
3 09443-15033-000 SPRING 1 Rp15.000
4 42341-27K00-000 BOLT,PROP STAND (10X33) 1 Rp14.500
5 08319-2110B-000 NUT 1 Rp16.000
6 43110-34J20-000 PEDAL,BRAKE 1 Rp94.000
7 09160-15002-000 WASHER (15.5X26X2.3) 1 Rp12.000
8 04111-3025A-000 PIN 1 Rp3.500
9 43211-23J00-000 SPRING,BRAKE PEDAL 1 Rp12.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
