GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRAMEHOLDERSTANDPILLION RIDER HANDLEFOOTRESTFUEL TANKFUEL TANK COVER (GSX250FRL)FUEL TANK COVER (GSX250FRLZ)FUEL TANK COVER (GSX250FRLX)EVAP SYSTEMFRAME COVER (GSX250FRLZ)FRAME COVER (GSX250FRLX)HANDLE LEVERSTEERING STEMREAR FENDERFRAME COVER GSX250FRL)FRONT WHEELCOWLING BODY (GSX250FRLX)FRAME LOWER COVER (GSX250FRLZ)HYDRAULIC UNITFRONT CALIPERCOWLING BODY (GSX250FRL)FRAME LOWER COVER (GSX250FRLX)FRONT BRAKE HOSEFRONT MASTER CYLINDERREAR SWINGINGARMUNDER COWLINGREAR SHOCK ABSORBERFRAME LOWER COVER (GSX250FRL)REAR WHEELSIDE COWLING (GSX250FRLZ)REAR CALIPERREAR MASTER CYLINDERFRONT FENDER (GSX250FRLZ)FRONT FENDER (GSX250FRLX)SIDE COWLING (GSX250FRLX)SIDE COWLING (GSX250FRL)SEATFRONT FORK DAMPERFRONT FENDER (GSX250FRL)HANDLEBARLABEL

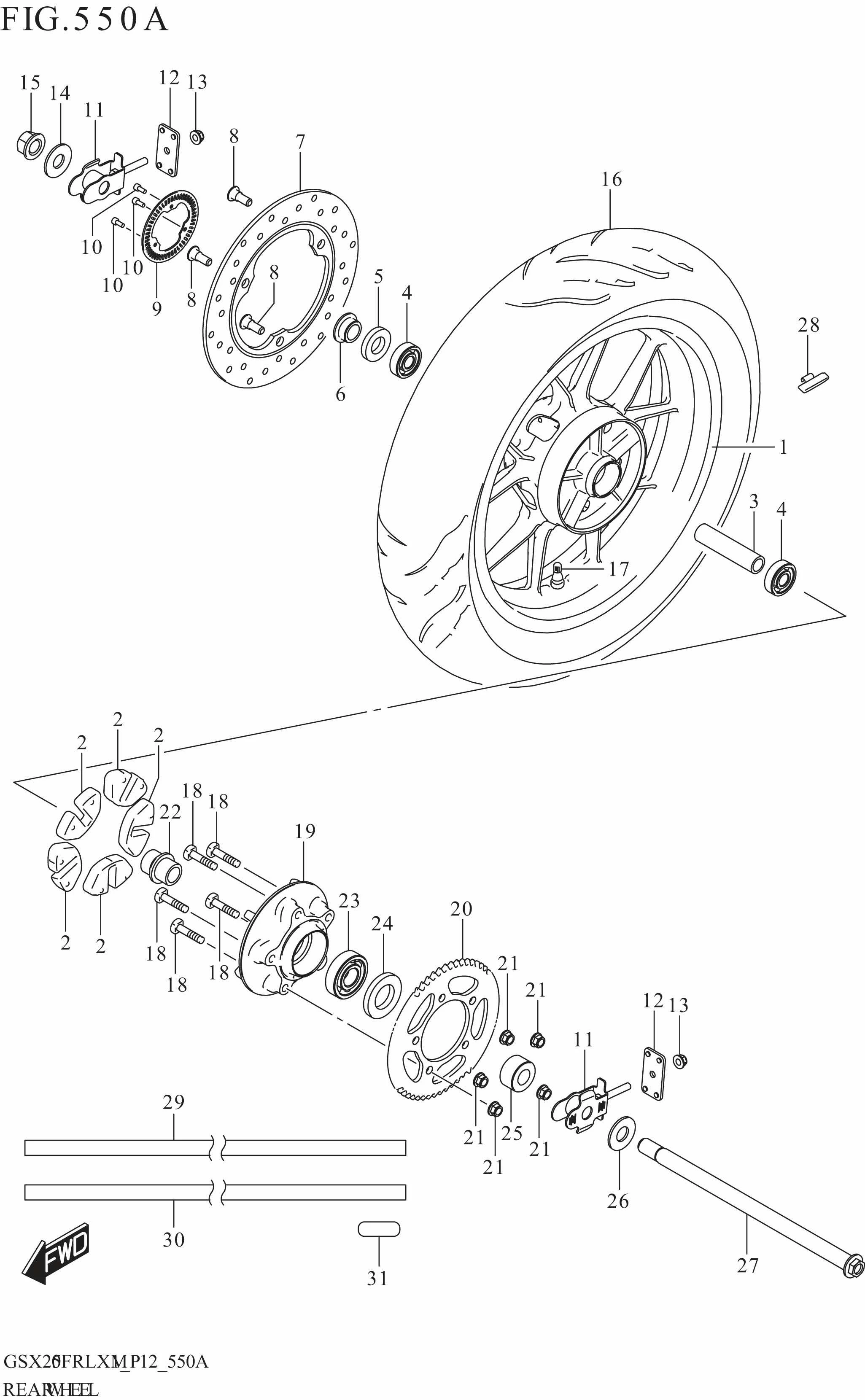

REAR WHEEL

REAR WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1 64111-41K01-QC3 WHEEL,RR (17M/CXMT4.00,BLACK) 1 Rp2.541.000
2 64651-41K00-000 ABSORBER,REAR HUB SHOCK 5 Rp32.500
3 64731-41K00-000 SPACER,REAR WHEEL HUB BEARING 1 Rp40.500
4 08123-6303B-000 BEARING 2 Rp154.500
5 64841-41K00-000 SEAL,REAR HUB BEARING 1 Rp24.000
6 64741-41K00-000 SPACER,REAR AXLE RH 1 Rp33.000
7 69211-41K00-000 DISC,REAR BRAKE 1 Rp569.500
8 59218-34J20-000 BOLT,FRONT BRAKE DISC 3 Rp21.500
9 54162-41K00-000 RING,SPEED SENSOR FRONT (50T) 1 Rp49.500
10 07130-0512A-000 BOLT 3 Rp4.000
11 61410-41K00-000 ADJUSTER,CHAIN 2 Rp43.500
12 61421-41K00-000 PLATE,CHAIN ADJUSTER GUIDE 2 Rp16.000
13 08319-3108A-000 NUT 2 Rp4.000
14 61445-41K00-000 WASHER,REAR AXLE RH 1 Rp31.000
15 64721-41K00-000 NUT,REAR AXLE 1 Rp31.000
16 65110-41K00-000 TIRE,REAR (150/60-17M/C 66S) 1 Rp1.808.000
17 43130-24A70-000 VALVE ASSY,WHEEL RIM (TR412) 1 Rp14.500
18 64541-41K00-000 BOLT,REAR SPROCKET 5 Rp16.000
19 64611-01D10-000 DRUM,REAR SPROCKET 1 Rp314.000
20 64511-41K00-000 SPROCKET,REAR (NT:40) 1 Rp274.500
21 08319-3110A-000 NUT 5 Rp4.500
22 64733-01D00-000 RETAINER,REAR SPROCKET DRUM 1 Rp51.000
23 08133-6305B-000 BEARING 1 Rp166.000
24 64831-41K00-000 SEAL,REAR SPROCKET DRUM OIL 1 Rp33.500
25 64751-41K00-000 SPACER,REAR AXLE LH 1 Rp44.000
26 61455-41K00-000 WASHER,REAR AXLE LH 1 Rp22.500
27 64711-41K00-000 AXLE,REAR 1 Rp116.000
28-1 55411-41K00-000 BALANCER,WHEEL NO.1 0 Rp10.000
28-2 55412-41K00-000 BALANCER,WHEEL NO.2 0 Rp14.500
28-3 55413-41K00-000 BALANCER,WHEEL NO.3 0 Rp19.500
29-1 68251-42K00-G7Z TAPE,WHEEL RH (YELLOW,BLACK) 1 Rp29.500
29-2 68251-42K00-B7P TAPE,WHEEL,R 1 Rp19.000
30-1 68252-42K00-G7Z TAPE,WHEEL LH (YELLOW,BLACK) 1 Rp29.500
30-2 68252-42K00-B7P TAPE,WHEEL,L 1 Rp19.000
31 68252-34J00-000 TAPE,WHEEL NO.2 2 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
