GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRAMEHOLDERSTANDPILLION RIDER HANDLEFOOTRESTFUEL TANKFUEL TANK COVER (GSX250FRL)FUEL TANK COVER (GSX250FRLZ)FUEL TANK COVER (GSX250FRLX)EVAP SYSTEMFRAME COVER (GSX250FRLZ)FRAME COVER (GSX250FRLX)HANDLE LEVERSTEERING STEMREAR FENDERFRAME COVER GSX250FRL)FRONT WHEELCOWLING BODY (GSX250FRLX)FRAME LOWER COVER (GSX250FRLZ)HYDRAULIC UNITFRONT CALIPERCOWLING BODY (GSX250FRL)FRAME LOWER COVER (GSX250FRLX)FRONT BRAKE HOSEFRONT MASTER CYLINDERREAR SWINGINGARMUNDER COWLINGREAR SHOCK ABSORBERFRAME LOWER COVER (GSX250FRL)REAR WHEELSIDE COWLING (GSX250FRLZ)REAR CALIPERREAR MASTER CYLINDERFRONT FENDER (GSX250FRLZ)FRONT FENDER (GSX250FRLX)SIDE COWLING (GSX250FRLX)SIDE COWLING (GSX250FRL)SEATFRONT FORK DAMPERFRONT FENDER (GSX250FRL)HANDLEBARLABEL

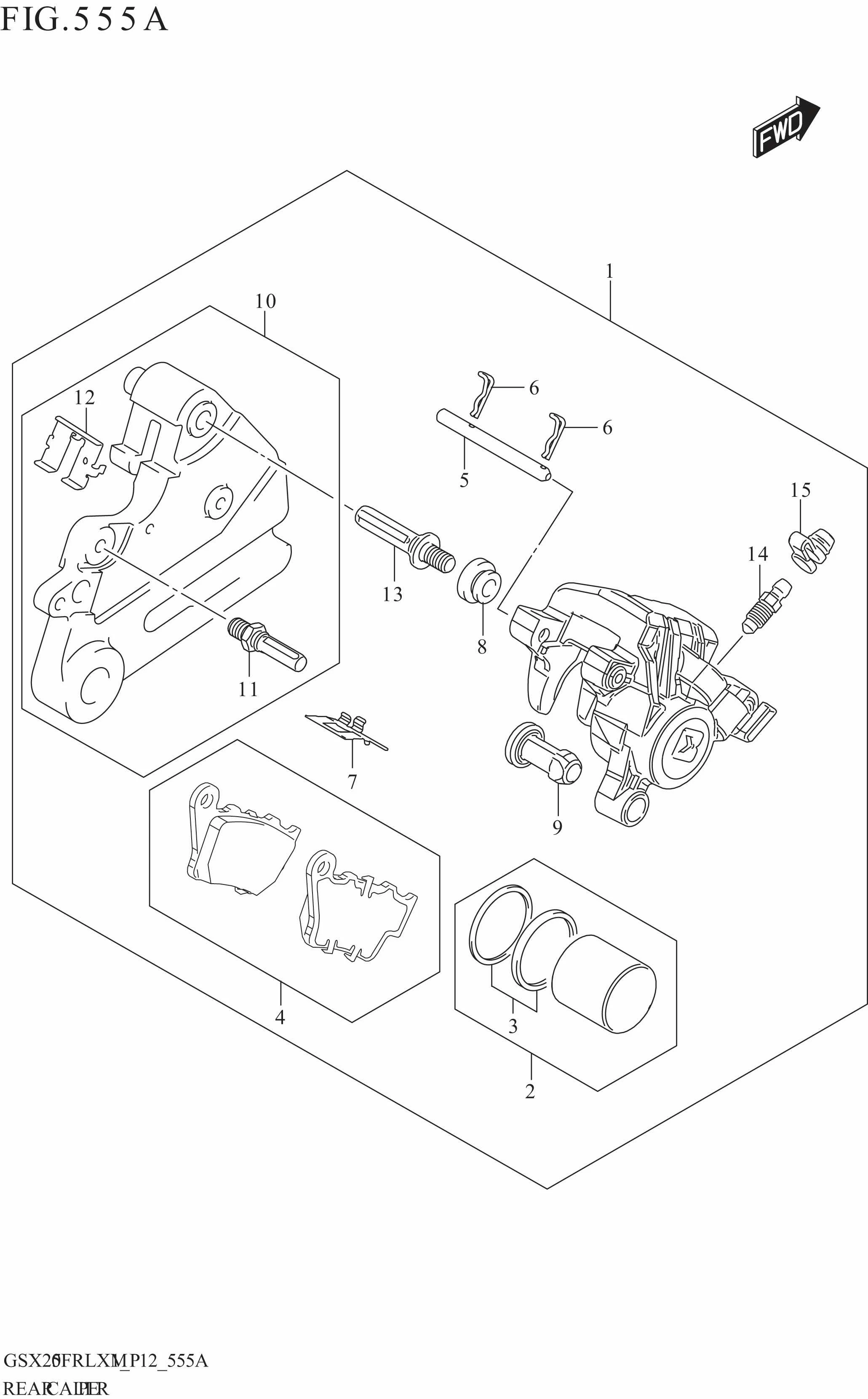

REAR CALIPER

REAR CALIPER
No No. Part Description Qty Price Per Pcs Remarks
1 69100-41K00-000 CALIPER ASSY,REAR 1 Rp1.159.000
2 69100-27870-000 .PISTON SET 1 Rp173.000
3 69100-27860-000 ..SEAL SET 1 Rp33.000
4 69100-27890-000 .PAD SET 1 Rp241.000
5 69345-27K00-000 .PIN,PAD 1 Rp9.000
6 69746-27K00-000 .CLIP 2 Rp14.500
7 69115-27K00-000 .SPRING,PAD 1 Rp19.000
8 59108-34J00-000 .DUST COVER 1 Rp13.500
9 59109-34J00-000 .INSULATOR 1 Rp15.500
10 69720-41K00-000 .BRACKET 1 Rp614.500
11 DISCONTINUE
SUB: 59187-34J00-000		 ..PIN 1 -
12 69116-27K00-000 ..RETAINER 1 Rp22.500
13 69187-27K00-000 .PIN 1 Rp31.000
14 59121-30H00-000 .SCREW,BLEEDER 1 Rp18.000
15 59122-30H00-000 .CAP,BLEEDER 1 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
