GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRAMEHOLDERSTANDPILLION RIDER HANDLEFOOTRESTFUEL TANKFUEL TANK COVER (GSX250FRL)FUEL TANK COVER (GSX250FRLZ)FUEL TANK COVER (GSX250FRLX)EVAP SYSTEMFRAME COVER (GSX250FRLZ)FRAME COVER (GSX250FRLX)HANDLE LEVERSTEERING STEMREAR FENDERFRAME COVER GSX250FRL)FRONT WHEELCOWLING BODY (GSX250FRLX)FRAME LOWER COVER (GSX250FRLZ)HYDRAULIC UNITFRONT CALIPERCOWLING BODY (GSX250FRL)FRAME LOWER COVER (GSX250FRLX)FRONT BRAKE HOSEFRONT MASTER CYLINDERREAR SWINGINGARMUNDER COWLINGREAR SHOCK ABSORBERFRAME LOWER COVER (GSX250FRL)REAR WHEELSIDE COWLING (GSX250FRLZ)REAR CALIPERREAR MASTER CYLINDERFRONT FENDER (GSX250FRLZ)FRONT FENDER (GSX250FRLX)SIDE COWLING (GSX250FRLX)SIDE COWLING (GSX250FRL)SEATFRONT FORK DAMPERFRONT FENDER (GSX250FRL)HANDLEBARLABEL

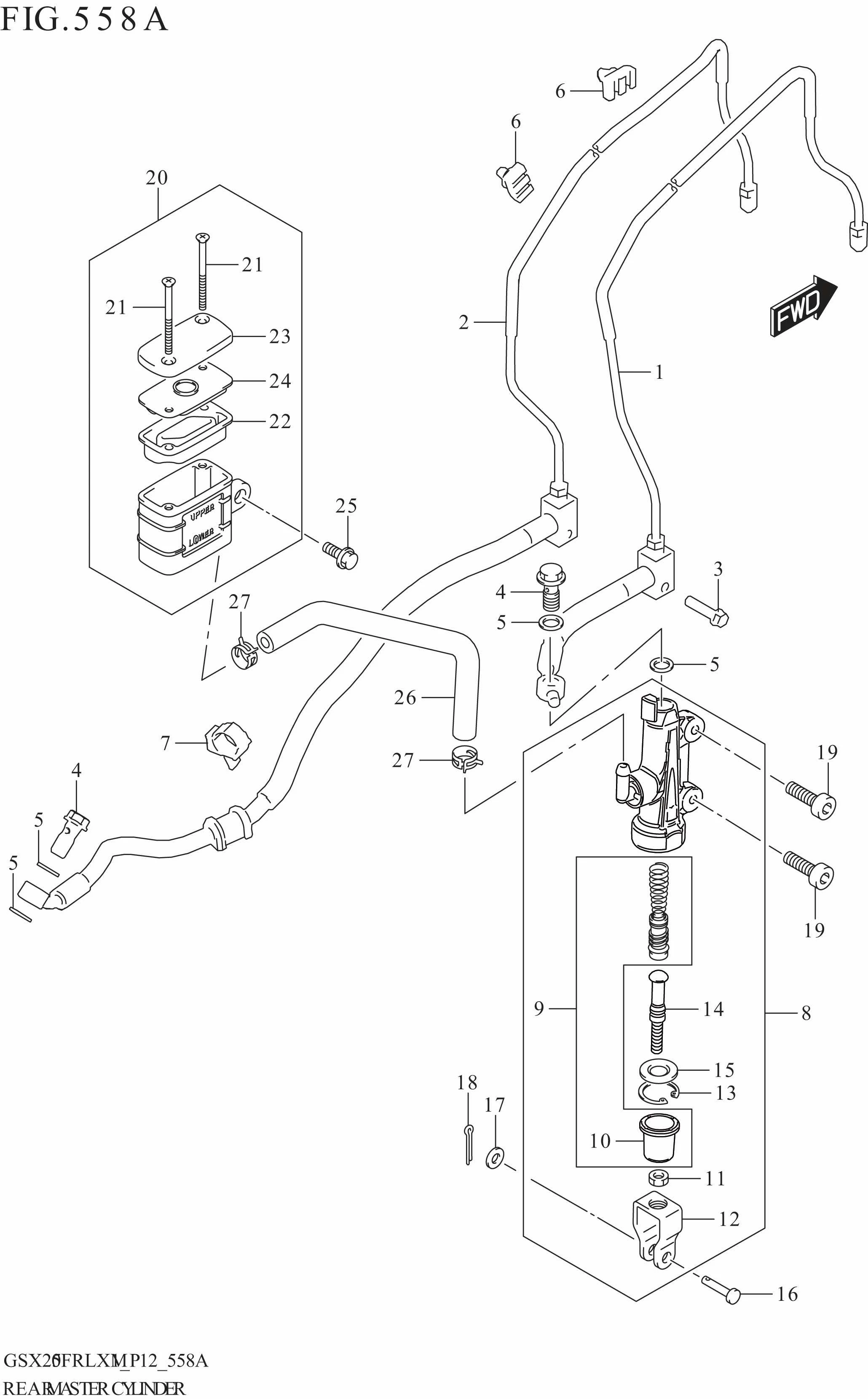

REAR MASTER CYLINDER

REAR MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 69200-41K00-000 HOSE ASSY,RR BK MASTER TO UNIT 1 Rp847.500
2 69400-41K00-000 HOSE ASSY,UNIT TO RR BK CLPR 1 Rp847.500
3 01547-0625A-000 BOLT 1 Rp6.500
4 59492-30H40-000 BOLT,BRAKE FLUID 2 Rp32.500
5 59502-30H00-000 WASHER,BRAKE FLUID 4 Rp43.500
6 09403-07410-000 CLAMP,RR BRAKE PIPE 2 Rp8.500
7 09403-17311-000 CLAMP,RR BRAKE HOSE 1 Rp15.000
8 69600-41K00-000 CYLINDER ASSY,REAR MASTER 1 Rp629.500
9 69600-41810-000 .PISTON/CUP SET 1 Rp84.000
10 69666-27K00-000 ..BOOT 1 Rp15.000
11 69692-41K00-000 .YOKE 1 Rp21.000
12 69693-27K00-000 .NUT 1 Rp5.500
13 69665-27K00-000 .CIRCLIP 1 Rp31.000
14 69671-41K00-000 .ROD,PUSH 1 Rp91.000
15 69872-27K00-000 .GUIDE,ROD 1 Rp29.000
16 09200-06037-000 PIN (6X18.2) 1 Rp3.500
17 08322-0106A-000 WASHER 1 Rp2.500
18 04111-2015A-000 PIN 1 Rp4.500
19 07130-0620A-000 BOLT 2 Rp16.500
20 69740-27K00-000 TANK ASSY,RR RESERVOIR 1 Rp187.000
21 69689-27K00-000 .SCREW 2 Rp24.000
22 69667-27K00-000 .DIAPHRAGM 1 Rp16.500
23 69669-27K00-000 .CAP 1 Rp18.000
24 69668-27K00-000 .PLATE,DIAPHRAGM 1 Rp14.500
25 01550-0612A-000 BOLT 1 Rp3.500
26 69731-41K00-000 HOSE,RR RESERVOIR TANK 1 Rp50.000
27 59735-27K00-000 CLIP 2 Rp9.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
