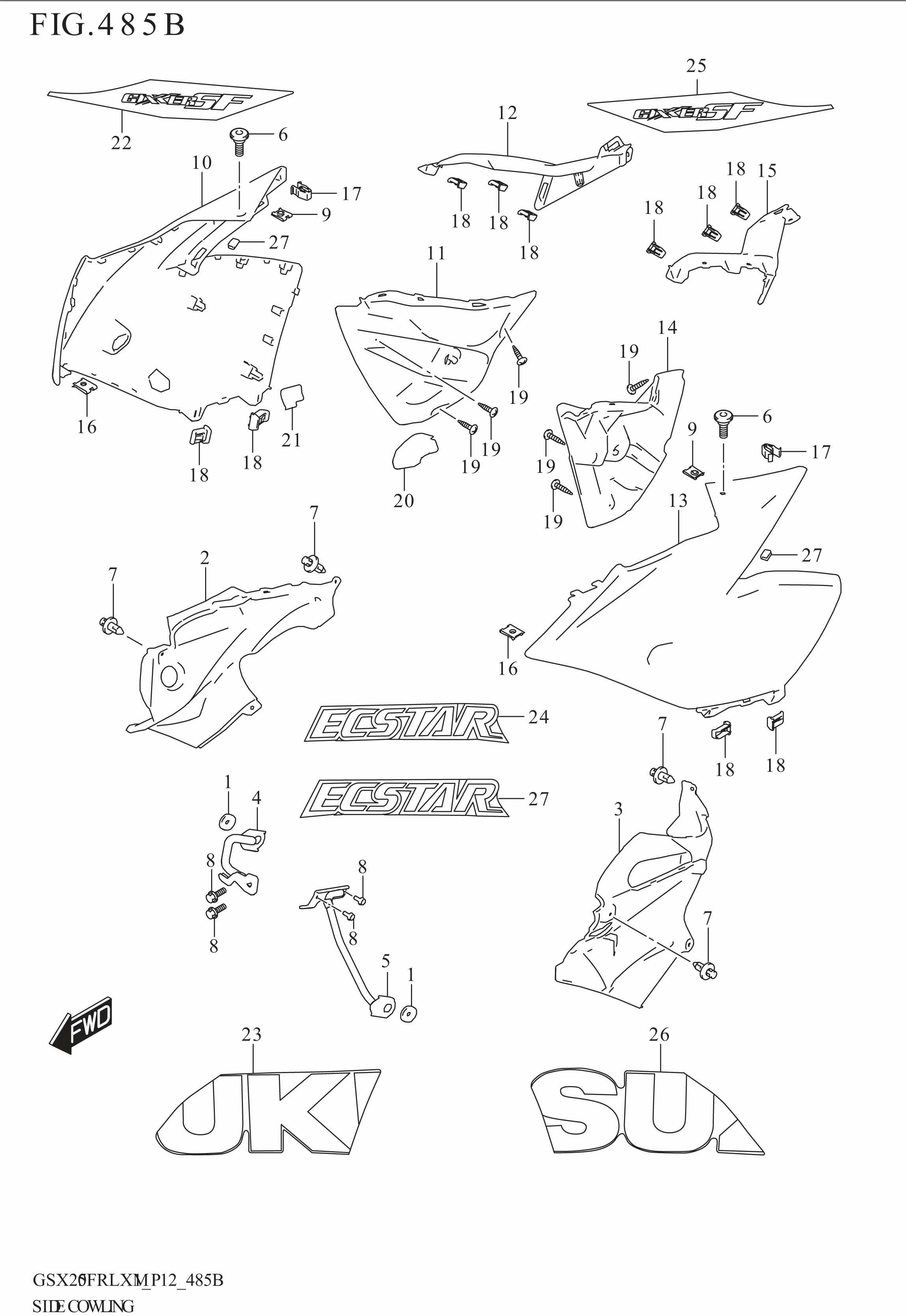

SIDE COWLING (GSX250FRLX)

SIDE COWLING (GSX250FRLX)
No No. Part Description Qty Price Per Pcs Remarks
1 47315-41K00-000 CUSHION (8-14X26-32X7) 2 Rp6.500
2 94461-41K00-000 COWLING,SIDE INNER RH 1 Rp130.000
3 94462-41K00-000 COWLING,SIDE INNER LH 1 Rp130.000
4 94530-41K00-000 BRACKET,SIDE COWL RH 1 Rp72.500
5 94540-41K00-000 BRACKET,SIDE COWL LH 1 Rp72.500
6 09139-05096-000 BOLT (5X13) 2 Rp24.000
7 09409-06L07-000 CLIP 4 Rp10.000
8 01550-0616A-000 BOLT 4 Rp3.500
9 47349-34J01-000 NUT,BODY COWL UPPER (M5) 2 Rp5.500
10 94431-41K02-YD8
SUB: 94431-41K00-YD8		 COWLING,SIDE RH (SILVER) 1 Rp460.500
11 94432-41K00-000 COVER,SIDE COWL INNER RH 1 Rp83.500
12 94433-41K00-000 COVER,SIDE COWL RH 1 Rp29.500
13 94441-41K02-YD8
SUB: 94441-41K00-YD8		 COWLING,SIDE LH (SILVER) 1 Rp460.500
14 94442-41K00-000 COVER,SIDE COWL INNER LH 1 Rp83.500
15 94443-41K00-000 COVER,SIDE COWL LH 1 Rp29.500
16 09148-05060-000 NUT 2 Rp29.500
17 09409-08L09-000 CLIP 2 Rp8.500
18 09409-08009-000 CLIP,SIDE COWL 10 Rp8.000
19 03541-0516A-000 SCREW 6 Rp3.500
20 94434-41K00-000 SHIELD,SIDE COVER HEAT 1 Rp42.000
21 94435-41K00-000 SHIELD,SIDE COWL HEAT 1 Rp19.000
22 68282-42K20-B6F TAPE,GIXXERSF,R 1 Rp115.000
23 68283-42K30-BPD TAPE,SIDE COWLING NO.1,R (SILVER,BLUE) 1 Rp89.000
24 68284-42K20-B6G TAPE,SIDE COWLING NO.2,R 1 Rp46.500
25 68292-42K20-B6F TAPE,GIXXERSF,L 1 Rp115.000
26 68293-42K30-BPD TAPE,SIDE COWLING NO.1,L (SILVER,BLUE) 1 Rp89.000
27 68294-42K20-B6G TAPE,SIDE COWLING NO.2,L 1 Rp46.500
