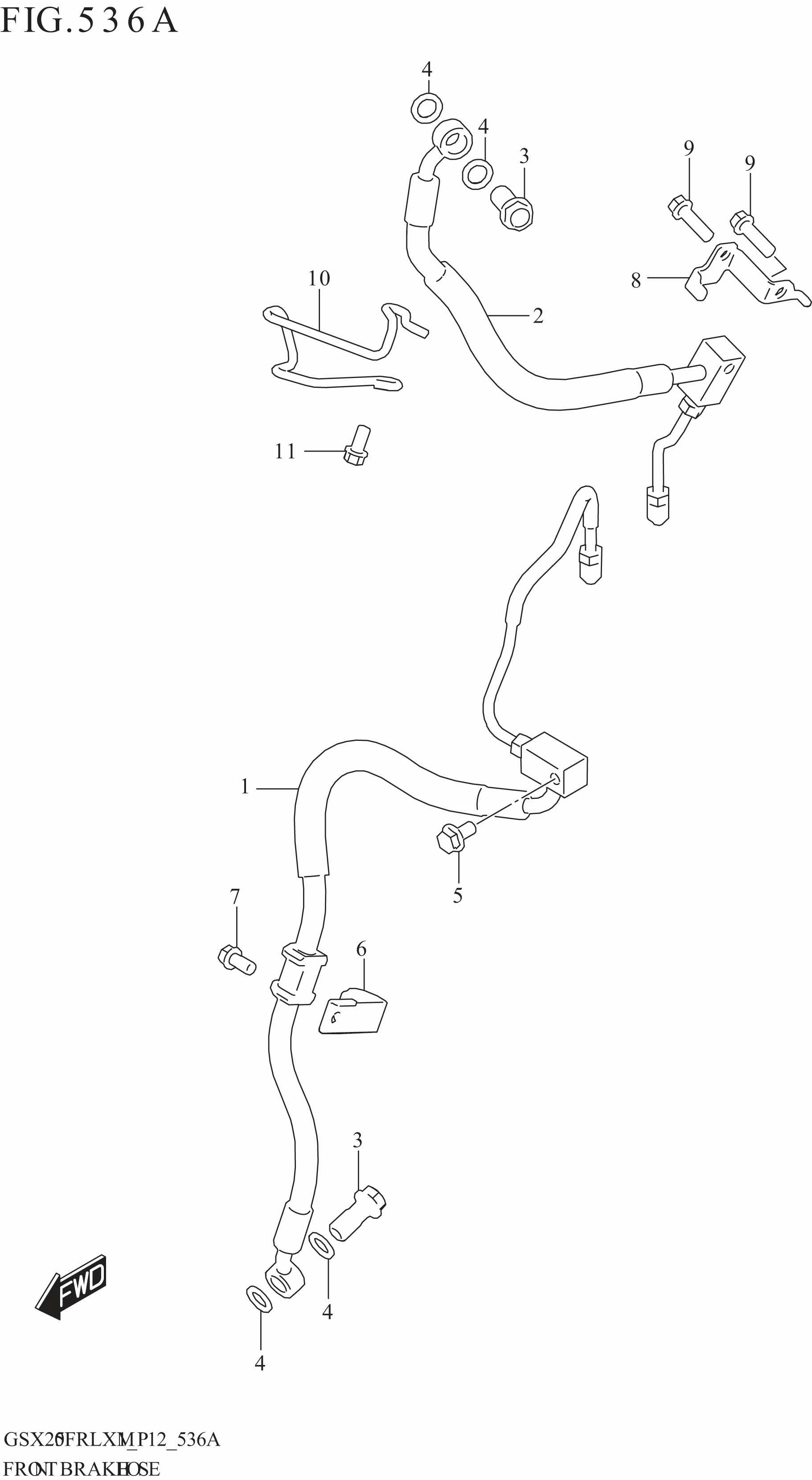

FRONT BRAKE HOSE

FRONT BRAKE HOSE
No No. Part Description Qty Price Per Pcs Remarks
1 59400-41K00-000 HOSE ASSY,UNIT TO FR BK CLPR 1 Rp512.500
2 59200-41K10-000 HOSE ASSY,FR BK MASTER TO UNIT 1 Rp408.500
3 59492-30H40-000 BOLT,BRAKE FLUID 2 Rp32.500
4 59502-30H00-000 WASHER,BRAKE FLUID 4 Rp43.500
5 01550-0612B-000 BOLT 1 Rp16.500
6 59266-34J00-000 CLAMP,FRONT BRAKE HOSE NO.1 1 Rp10.500
7 01547-0610A-000
SUB: 01547-0612B-000		 BOLT 1 Rp3.000
8 59541-41K00-000 GUIDE,FR BK HOSE 1 Rp20.000
9 01547-0620B-000 BOLT 2 Rp6.500
10 59243-42K00-000 GUIDE,FRONT BRAKE HOSE 1 Rp21.000
11 01547-0610A-000
SUB: 01547-0612B-000		 BOLT 1 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
