GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRAMEHOLDERSTANDPILLION RIDER HANDLEFOOTRESTFUEL TANKFUEL TANK COVER (GSX250FRL)FUEL TANK COVER (GSX250FRLZ)FUEL TANK COVER (GSX250FRLX)EVAP SYSTEMFRAME COVER (GSX250FRLZ)FRAME COVER (GSX250FRLX)HANDLE LEVERSTEERING STEMREAR FENDERFRAME COVER GSX250FRL)FRONT WHEELCOWLING BODY (GSX250FRLX)FRAME LOWER COVER (GSX250FRLZ)HYDRAULIC UNITFRONT CALIPERCOWLING BODY (GSX250FRL)FRAME LOWER COVER (GSX250FRLX)FRONT BRAKE HOSEFRONT MASTER CYLINDERREAR SWINGINGARMUNDER COWLINGREAR SHOCK ABSORBERFRAME LOWER COVER (GSX250FRL)REAR WHEELSIDE COWLING (GSX250FRLZ)REAR CALIPERREAR MASTER CYLINDERFRONT FENDER (GSX250FRLZ)FRONT FENDER (GSX250FRLX)SIDE COWLING (GSX250FRLX)SIDE COWLING (GSX250FRL)SEATFRONT FORK DAMPERFRONT FENDER (GSX250FRL)HANDLEBARLABEL

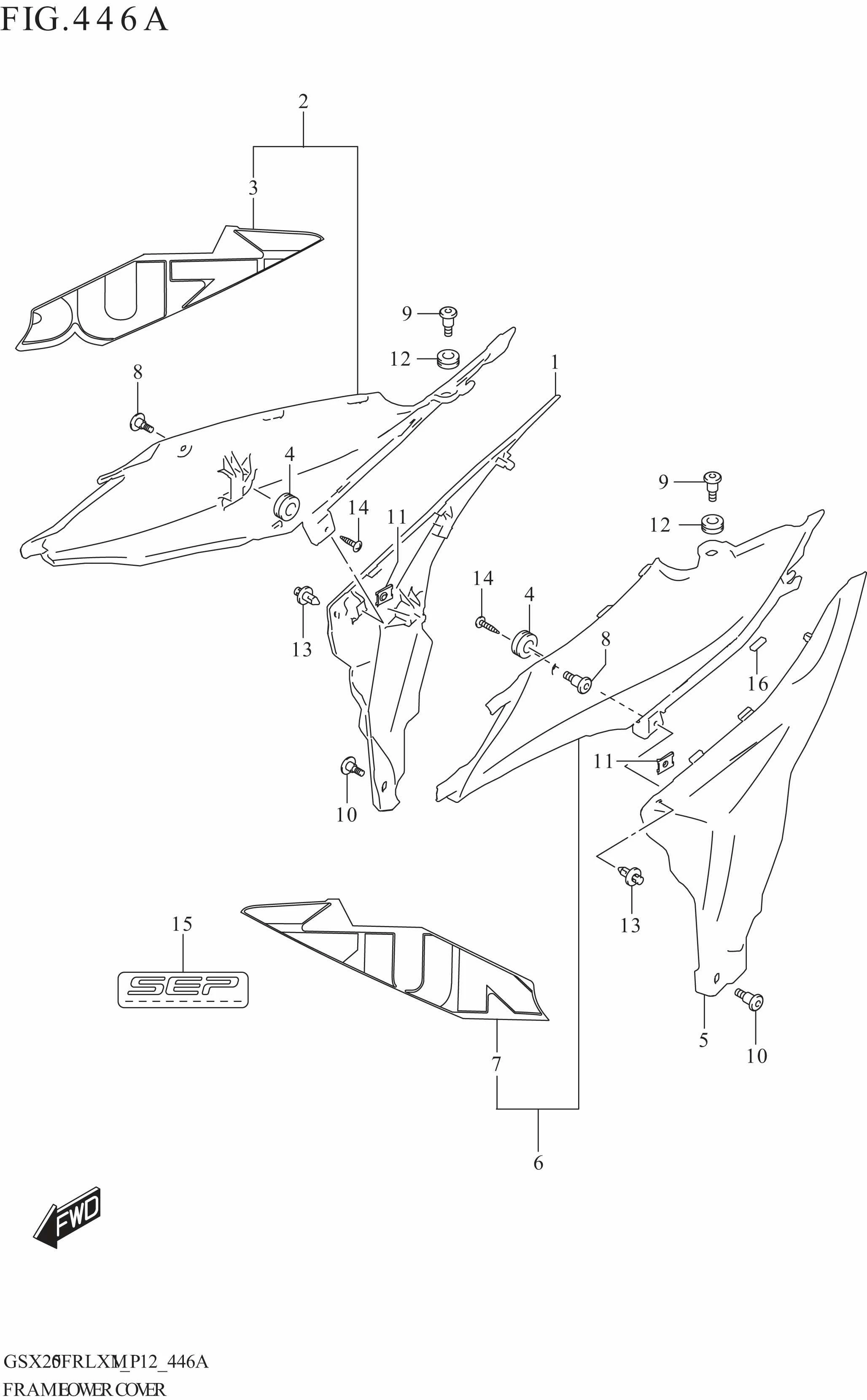

FRAME LOWER COVER (GSX250FRLZ)

FRAME LOWER COVER (GSX250FRLZ)
No No. Part Description Qty Price Per Pcs Remarks
1 47111-41K00-YKV COVER,FRAME RH (BLACK) 1 Rp193.500
2 47120-41K00-YSF COVER,FRAME FRONT RH (BLUE) 1 Rp311.500
3 68131-42K00-AGQ .TAPE,FRAME COVER FRONT RH (BLUE,WHITE) 1 Rp77.000
4 47312-37H10-000 CUSHION,FRAME COVER REAR (10X24X13) 2 Rp24.000
5 47211-41K00-YKV COVER,FRAME LH (BLACK) 1 Rp193.500
6 47220-41K00-YSF COVER,FRAME FRONT LH (BLUE) 1 Rp311.500
7 68141-42K00-AGQ .TAPE,FRAME COVER FRONT LH (BLUE,WHITE) 1 Rp77.000
8 09139-05096-000 BOLT (5X13) 2 Rp24.000
9 47123-41K00-000 BOLT (6X20) 2 Rp11.500
10 09139-06230-000 SCREW (6X13) 2 Rp22.000
11 09148-05060-000 NUT 2 Rp29.500
12 09320-09016-000 CUSHION (9X18X9.5) 2 Rp4.000
13 09409-06L07-000 CLIP 2 Rp10.000
14 03541-0512A-000 SCREW 2 Rp3.500
15 68136-39J10-000 EMBLEM,FRAME COVER 1 Rp8.000
16 47113-41K00-000 CUSHION,FRAME COVER FRONT NO.1 1 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
