GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRAMEHOLDERSTANDPILLION RIDER HANDLEFOOTRESTFUEL TANKFUEL TANK COVER (GSX250FRL)FUEL TANK COVER (GSX250FRLZ)FUEL TANK COVER (GSX250FRLX)EVAP SYSTEMFRAME COVER (GSX250FRLZ)FRAME COVER (GSX250FRLX)HANDLE LEVERSTEERING STEMREAR FENDERFRAME COVER GSX250FRL)FRONT WHEELCOWLING BODY (GSX250FRLX)FRAME LOWER COVER (GSX250FRLZ)HYDRAULIC UNITFRONT CALIPERCOWLING BODY (GSX250FRL)FRAME LOWER COVER (GSX250FRLX)FRONT BRAKE HOSEFRONT MASTER CYLINDERREAR SWINGINGARMUNDER COWLINGREAR SHOCK ABSORBERFRAME LOWER COVER (GSX250FRL)REAR WHEELSIDE COWLING (GSX250FRLZ)REAR CALIPERREAR MASTER CYLINDERFRONT FENDER (GSX250FRLZ)FRONT FENDER (GSX250FRLX)SIDE COWLING (GSX250FRLX)SIDE COWLING (GSX250FRL)SEATFRONT FORK DAMPERFRONT FENDER (GSX250FRL)HANDLEBARLABEL

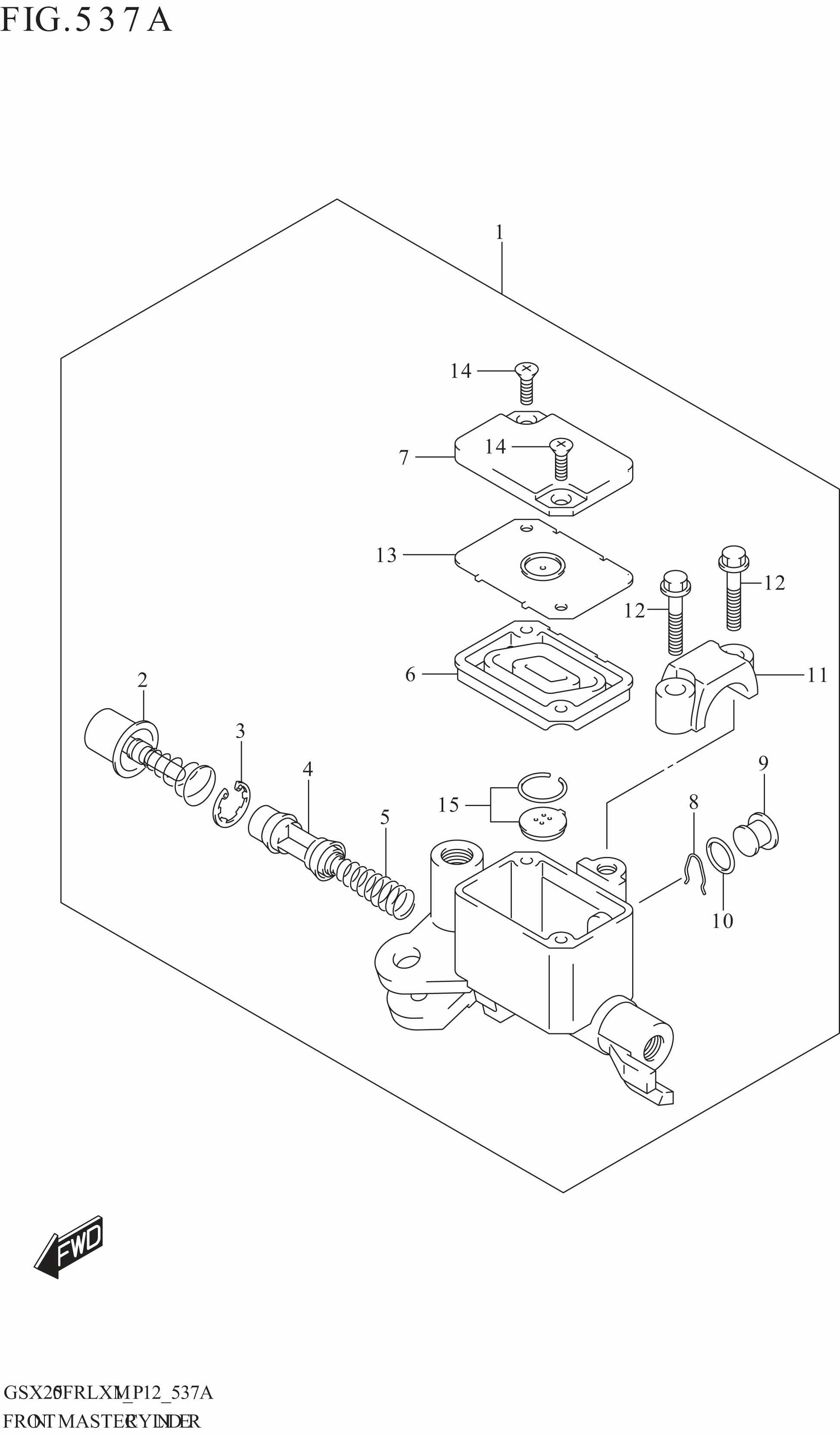

FRONT MASTER CYLINDER

FRONT MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 59600-30H30-000 CYLINDER ASSY,FRONT MASTER 1 Rp822.000
2 59870-30H00-000 .PUSH ROD ASSY 1 Rp21.000
3 59665-30H00-000 .CIRCLIP 1 Rp10.500
4 59610-30H00-000 .PISTON ASSY 1 Rp172.500
5 57318-30H00-000 .SPRING 1 Rp10.500
6 59667-12K00-000 .DIAPHRAGM 1 Rp18.000
7 59687-30H20-000 .COVER 1 Rp56.500
8 59745-30H00-000 .CLIP 1 Rp5.000
9 59743-12K00-000 .WINDOW 1 Rp10.000
10 59744-30H00-000 .O-RING 1 Rp10.000
11 59671-30H00-000 .CLAMP 1 Rp32.000
12 59688-30H00-000 .SCREW 2 Rp12.500
13 59668-30H00-000 .PLATE,DIAPHRAGM 1 Rp9.500
14 59691-30H00-000 .FLAT SCREW 2 Rp5.500
15 59669-30H00-000 .CAP 1 Rp11.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
