GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRAMEHOLDERSTANDPILLION RIDER HANDLEFOOTRESTFUEL TANKFUEL TANK COVER (GSX250FRL)FUEL TANK COVER (GSX250FRLZ)FUEL TANK COVER (GSX250FRLX)EVAP SYSTEMFRAME COVER (GSX250FRLZ)FRAME COVER (GSX250FRLX)HANDLE LEVERSTEERING STEMREAR FENDERFRAME COVER GSX250FRL)FRONT WHEELCOWLING BODY (GSX250FRLX)FRAME LOWER COVER (GSX250FRLZ)HYDRAULIC UNITFRONT CALIPERCOWLING BODY (GSX250FRL)FRAME LOWER COVER (GSX250FRLX)FRONT BRAKE HOSEFRONT MASTER CYLINDERREAR SWINGINGARMUNDER COWLINGREAR SHOCK ABSORBERFRAME LOWER COVER (GSX250FRL)REAR WHEELSIDE COWLING (GSX250FRLZ)REAR CALIPERREAR MASTER CYLINDERFRONT FENDER (GSX250FRLZ)FRONT FENDER (GSX250FRLX)SIDE COWLING (GSX250FRLX)SIDE COWLING (GSX250FRL)SEATFRONT FORK DAMPERFRONT FENDER (GSX250FRL)HANDLEBARLABEL

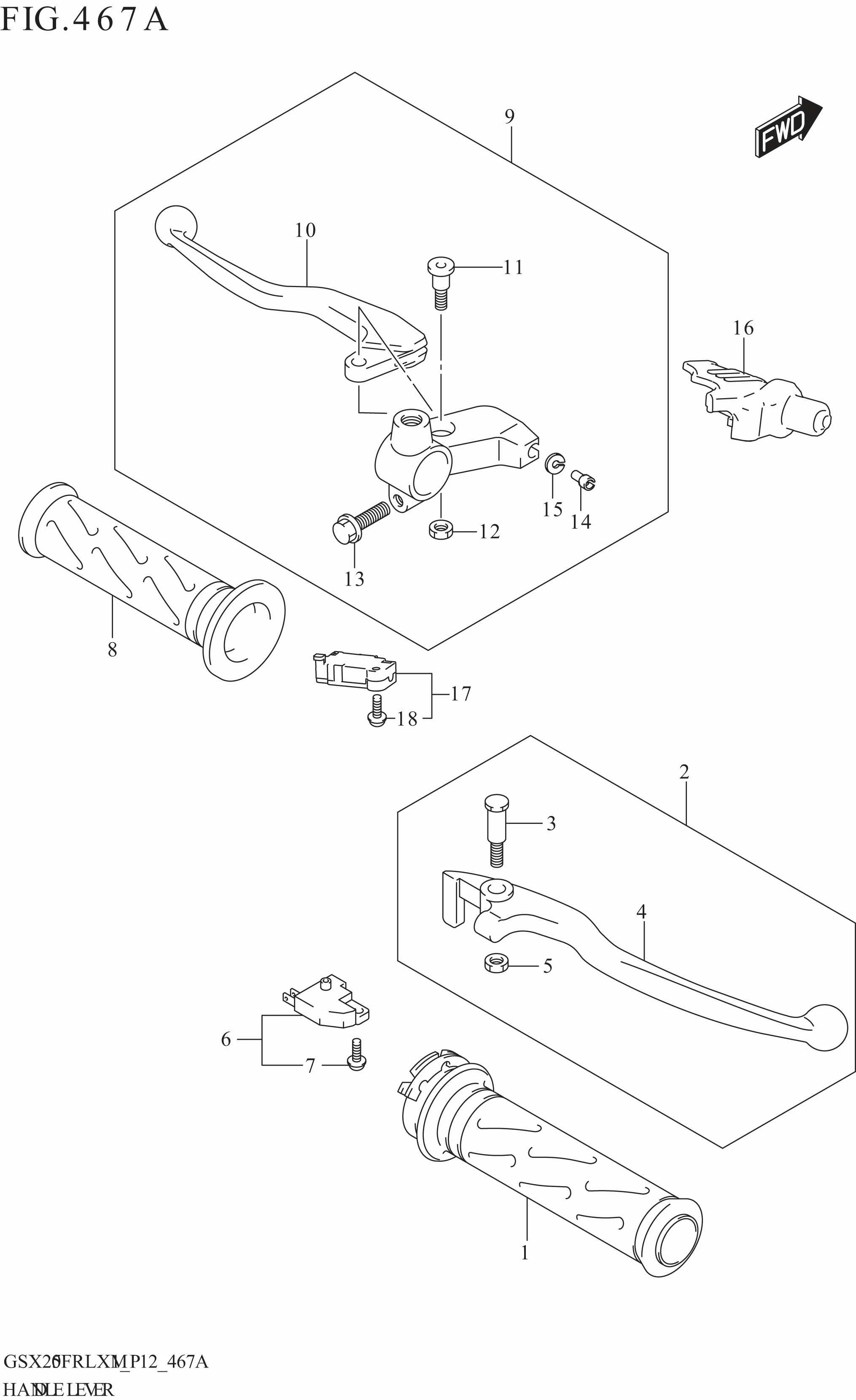

HANDLE LEVER

HANDLE LEVER
No No. Part Description Qty Price Per Pcs Remarks
1 57110-30H10-000 GRIP,THROTTLE 1 Rp40.500
2 57300-41K00-000 LEVER ASSY,BRAKE 1 Rp90.000
3 57431-30H20-000 .BOLT,BRAKE LEVER PIVOT 1 Rp20.500
4 57421-41K00-000 .LEVER,BRAKE 1 Rp88.000
5 57433-30H10-000 .NUT,BRAKE LEVER PIVOT 1 Rp8.500
6 57460-30H00-000 SWITCH ASSY,FRONT BRAKE 1 Rp36.500
7 57465-30H00-000 .SCREW 1 Rp6.500
8 57211-22D11-291 GRIP LH (BLACK) 1 Rp54.000
9 57500-41K00-000 LEVER ASSY,CLUTCH 1 Rp260.000
10 57621-41K00-000 .LEVER,CLUTCH 1 Rp60.500
11 57431-41K00-000 .BOLT,CLUTCH LEVER PIVOT 1 Rp15.500
12 08319-2106A-000 .NUT 1 Rp5.000
13 01547-0620B-000 .BOLT 1 Rp6.500
14 57441-41K00-000 .ADJUSTER,CLUTCH CABLE 1 Rp10.500
15 57442-41K00-000 .NUT,LOCK 1 Rp9.000
16 57661-41K00-000 COVER,CLUTCH LEVER 1 Rp9.500
17 37560-41K00-000 SWITCH ASSY,CLUTCH 1 Rp52.000
18 37562-41K00-000 .SCREW,CLUTCH SWITCH 1 Rp5.500
7000 57441-41K00-000 .ADJUSTER 0 Rp10.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
