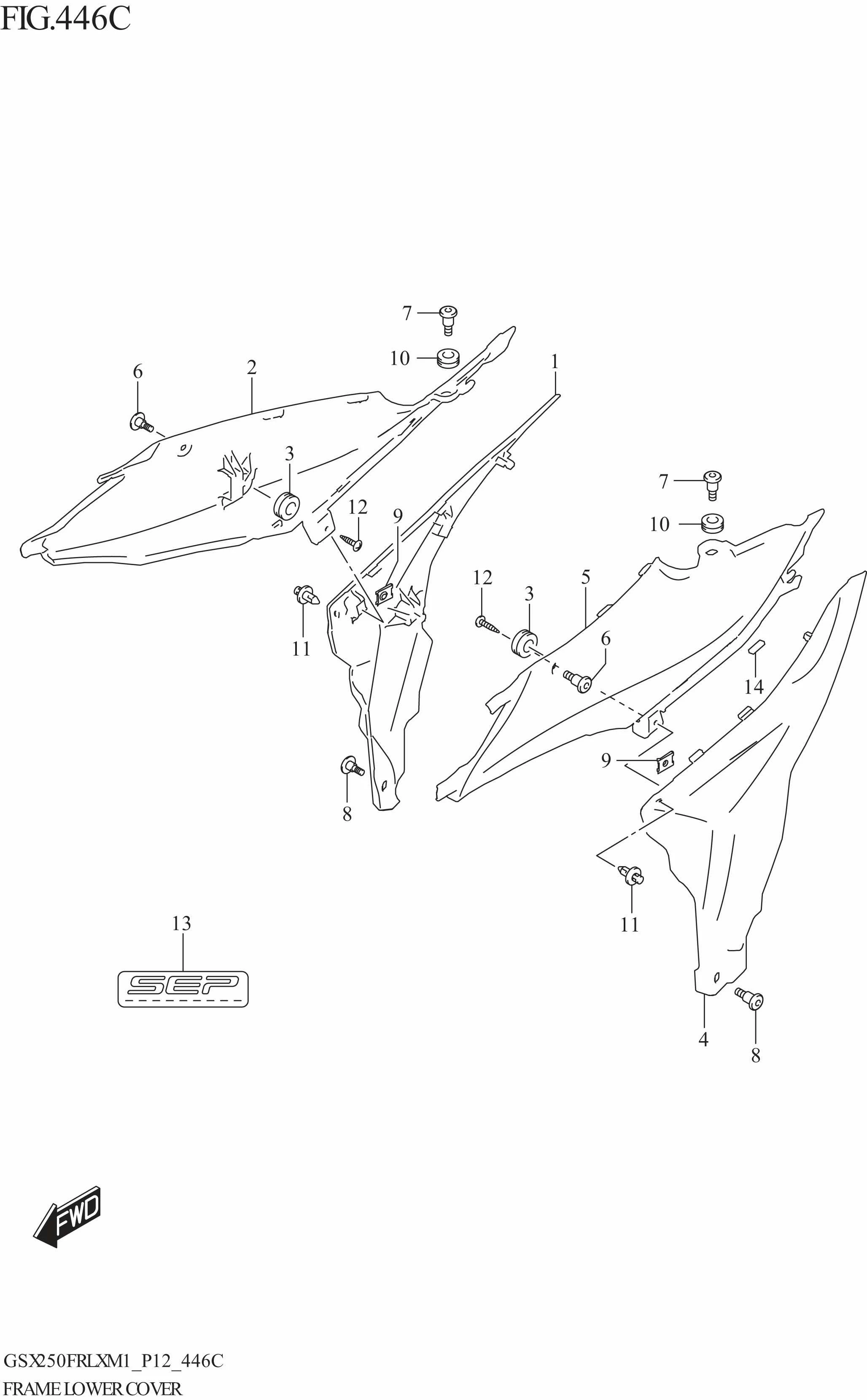

FRAME LOWER COVER (GSX250FRL)

FRAME LOWER COVER (GSX250FRL)
No No. Part Description Qty Price Per Pcs Remarks
1 47111-41K00-YKV COVER,FRAME RH (BLACK) 1 Rp193.500
2 47121-41K00-YKV COVER,FRAME FRONT RH (BLACK) 1 Rp340.000
3 47162-30H00-000 CUSHION (8X26X7) 2 Rp10.000
4 47211-41K00-YKV COVER,FRAME LH (BLACK) 1 Rp193.500
5 47221-41K00-YKV COVER,FRAME FRONT LH (BLACK) 1 Rp340.000
6 09139-05096-000 BOLT (5X13) 2 Rp24.000
7 47123-41K00-000 BOLT (6X20) 2 Rp11.500
8 09139-06230-000 SCREW (6X13) 2 Rp22.000
9 09148-05060-000 NUT 2 Rp29.500
10 09320-09016-000 CUSHION (9X18X9.5) 2 Rp4.000
11 09409-06L07-000 CLIP 2 Rp10.000
12 03541-0512A-000 SCREW 2 Rp3.500
13 68136-39J10-000 EMBLEM,FRAME COVER 1 Rp8.000
14 47113-41K00-000 CUSHION,FRAME COVER FR NO.1 1 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
