DF300A E01 012

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER BLOCK FIG 3 RING GEAR COVER (DF300A E1)FIG 4 RING GEAR COVER (DF300A E40)FIG 5 CRANKSHAFT FIG 6 TIMING CHAIN FIG 7 CAMSHAFT FIG 8 INTAKE MANIFOLD FIG 9 EXHAUST COVER FIG 10 FUEL PUMP / FUEL VAPOR SEPARATOR (DF300A E1)FIG 11 FUEL PUMP / FUEL VAPOR SEPARATOR (DF300A E40)FIG 12 FUEL INJECTOR (DF300A E1)FIG 13 FUEL INJECTOR (DF300A E40)FIG 14 WATER PUMP (DF300A E1)FIG 15 WATER PUMP (DF300A E40)FIG 16 THERMOSTAT FIG 17 THROTTLE BODY FIG 18 OIL PUMP FIG 19 OIL PAN FIG 20 CLUTCH SHAFT FIG 21 CLUTCH ROD FIG 22 TRANSMISSION FIG 23 STARTING MOTOR FIG 24 MAGNETO FIG 25 RECTIFIER / IGNITION COIL FIG 26 SENSOR FIG 27 HARNESS (DF300A E1)FIG 28 HARNESS (DF300A E40)FIG 29 PTT SWITCH / ENGINE CONTROL UNIT FIG 30 CLAMP BRACKET FIG 31 SWIVEL BRACKET FIG 32 TRIM CYLINDER FIG 33 PTT MOTOR FIG 34 ENGINE HOLDER FIG 35 DRIVE SHAFT HOUSING FIG 36 GEAR CASE FIG 37 SIDE COVER FIG 38 ENGINE COVER FIG 39 FUEL HOSE (DF300A E1)FIG 40 FUEL HOSE (DF300A E40)FIG 41 OPT:METER FIG 42 OPT:HARNESS FIG 43 OPT:SWITCH FIG 44 OPT:TOP MOUNT SINGLE FIG 45 OPT:TOP MOUNT DUAL FIG 46 OPT: FLUSH MOUNT REMOCON FIG 47 OPT:GASKET SET (DF300A E1)FIG 48 OPT:GASKET SET (DF300A E40)FIG 49 OPT:LOWRANCE GAUGE

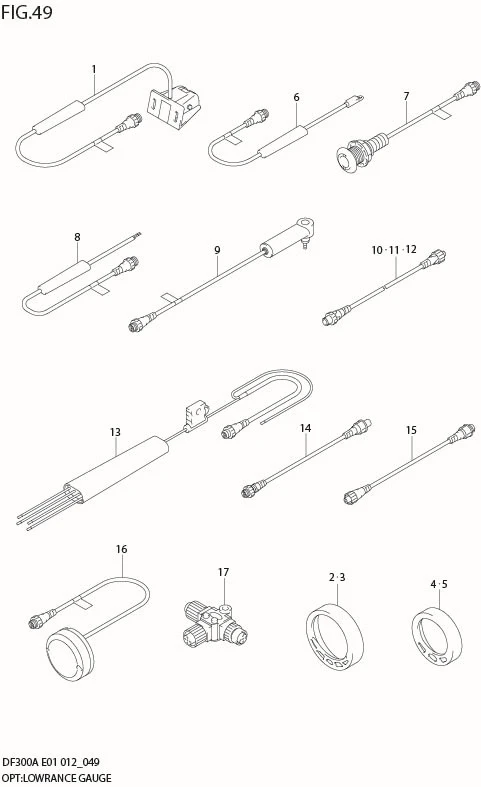

FIG 49 OPT:LOWRANCE GAUGE

FIG 49 OPT:LOWRANCE GAUGE

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	34190-88L00-000	SENSOR ASSY,PAD WHEEL	1	Rp2.822.500
2	34193-88L00-000	BEZEL, 4 IN CHR	1	Rp256.500
3	34193-88L20-000	BEZEL, 4 IN WHITE	1	Rp256.500
4	34193-88L40-000	BEZEL, 2 IN CHR	1	Rp545.000
5	34193-88L60-000	BEZEL, 2 IN WHITE	1	Rp256.500
6	34455-88L00-000	SENSOR ASSY, WATER TEMP	1	Rp2.562.500
7	34455-88L10-000	SENSOR ASSY, WATER TEMP	1	Rp2.443.000
8	DISCONTINUE SUB: 34810-88L00-000	SENSOR ASSY, FLUID LEVEL	1	-
9	34960-88L00-000	SENSOR ASSY, WATER PRESSURE	1	Rp3.825.500
10	36662-88L10-000	WIRE, 2 EXTENSION	1	Rp458.000
11	36662-88L20-000	WIRE, 6 EXTENSION	1	Rp725.000
12	36662-88L30-000	WIRE, 15 EXTENSION	1	Rp1.161.500
13	36663-88L10-000	HARNESS ASSY, NETWORK POWER	1	Rp2.001.500
14	36666-88L00-000	WIRE, ADAPTER TO N NETWORK	1	Rp820.000
15	36666-88L10-000	WIRE, ADAPTER TO L NETWORK	1	Rp1.292.500
16	39950-88L02-000 SUB: 39950-88L00-000	MODULE ASSY, GPS RECEIVER	1	Rp9.214.000
17	36664-88L00-000	CONNECTOR, BRANCH	1	Rp412.500
17	36664-88L00-000	CONNECTOR, BRANCH	1	Rp412.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
