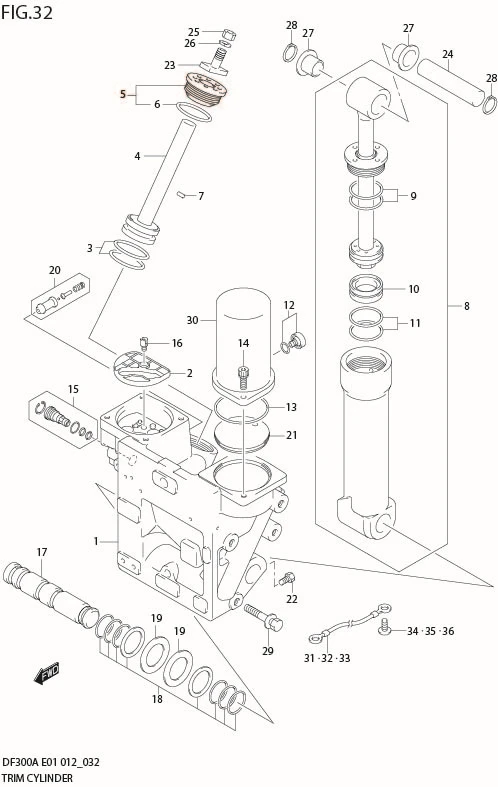

FIG 32 TRIM CYLINDER

No	No. Part	Description	Qty	Price Per Pcs
1	48500-98J03-000 SUB: 48500-98J02-000	MANIFOLD ASSY	1	Rp9.114.500
2	48582-95E01-000	?FILTER	1	Rp304.000
3	48605-93J00-000	?O RING SET	2	Rp98.000
4	48610-93J01-000	?PISTON / RAM	2	Rp1.283.500
5	48630-98L02-000 SUB: 48630-98J01-000	?ROD GUIDE	2	Rp650.500
6	48633-93J00-000	??O RING	2	Rp66.000
7	48691-93J00-000	?CHECK VALVE	1	Rp53.000
8	48400-98J01-000	CYLINDER ASSY	1	-
9	48405-93J00-000	?O RING SET	1	Rp96.000
10	48650-93J00-000	?PISTON, FREE	1	Rp520.000
11	48627-93J00-000	?O RING SET	1	Rp71.000
12	48572-87J10-000	PLUG	1	Rp169.500
13	48585-95E00-000	O RING	1	Rp34.000
14	48862-87J20-000 SUB: 48862-87J10-000	BOLT, RESERVOIR	2	Rp111.500
15	48864-93J01-000 SUB: 48864-93J00-000	MANUAL VALVE	1	Rp1.094.000
16	48583-95E00-000	JOINT, DRIVE	1	Rp95.500
17	48121-93J20-000 SUB: 48121-93J12-000	SHAFT	1	Rp784.000
18	48125-93J00-000	O RING SET	1	Rp197.500
19	48126-93J00-000	WASHER, TILT CYL TO MANIF	2	Rp149.000
20	48320-93J00-000	VALVE SET, UP BLOW	1	Rp175.000
21	48573-93J00-000	COVER	1	Rp310.000
22	48128-93J10-000	BOLT	1	Rp52.500
23	48311-96J00-000	PAD, TRIM CYL RAM	2	Rp201.500
24	48321-93J00-000	SHAFT, TILT CYL UPPER	1	Rp384.000
25	09140-10031-000 SUB: 29141-93J20-000	NUT, TRIM CYL RAM	2	Rp14.500
26	09162-10005-000	LOCK WASHER (10.2X18.4X2.5)	2	Rp13.000
27	09306-24001-000	BUSH	2	Rp18.000
28	09380-21002-000	CIRCLIP	2	Rp23.500
29	09116-10175-000	BOLT (10X50)	8	Rp77.500
30	48571-93J00-000	RESERVOIR TANK	1	Rp1.403.000
31	36894-87D00-000	LEAD, PTT TO ANODE	1	Rp98.500
32	36895-87D01-000	LEAD, PTT TO ANODE	1	Rp116.000
33	36895-87D01-000	LEAD, PTT TO ANODE	1	Rp116.000
34	09125-06063-000	SCREW (6X10)	1	Rp15.000
35	09125-06063-000	SCREW (6X10)	1	Rp15.000
36	09125-06063-000	SCREW (6X10)	1	Rp15.000
