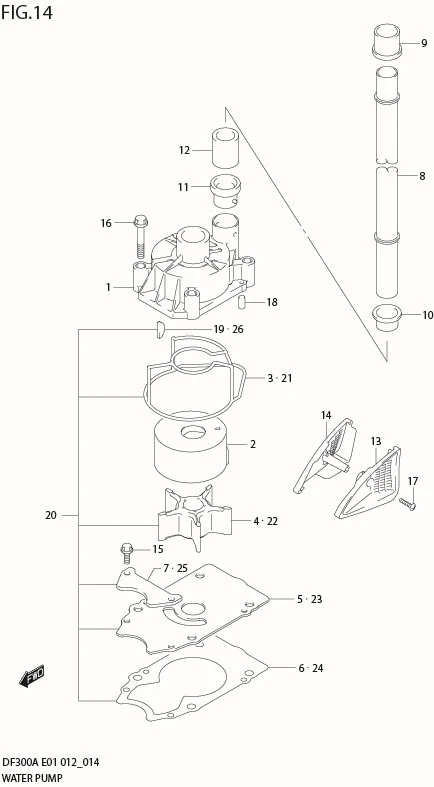

FIG 14 WATER PUMP (DF300A E1)

FIG 14 WATER PUMP (DF300A E1)
No No. Part Description Qty Price Per Pcs Remarks
1 17410-93J01-000
SUB: 17410-93J00-000		 CASE, WATER PUMP 1 Rp605.000
2 17413-93J02-000 SLEEVE, CASE 1 Rp250.500
3 17416-93J01-000
SUB: 17416-93J00-000		 SEALING, CASE 1 Rp87.000
4 17461-93J02-000
SUB: 17461-93J00-000		 IMPELLER, WATER PUMP 1 Rp314.500
5 17471-98J01-000 PANEL, PUMP CASE UNDER 1 Rp117.000
6 17472-98J00-000 GASKET, PUMP CASE PANEL 1 Rp70.000
7 17473-98J00-000 PANEL, WATER PUMP NO.2 1 Rp70.500
8-1 17561-93J03-000 TUBE, WATER (UL) 1 Rp416.500 W/TRANSOM(X)
8-2 17561-93J13-000 TUBE, WATER (XX) 1 Rp571.000 W/TRANSOM(XX)
9 17562-93J01-000
SUB: 17562-93J00-000		 BUSH, WATER TUBE UPPER 1 Rp31.500
10 17563-93J01-000
SUB: 17563-93J00-000		 BUSH, WATER TUBE LOWER 1 Rp32.000
11 17564-93J01-000
SUB: 17564-93J00-000		 BUSH, WATER PUMP CASE 1 Rp32.500
12 17612-93J00-000 SPACER, WATER TUBE 1 Rp45.500
13 17631-93L00-000 FILTER, WATER PORT SIDE 1 Rp119.000
14 17632-93L00-000 FILTER, WATER STBD SIDE 1 Rp123.000
15 29116-93J00-000 BOLT, PUMP CASE PANEL 2 Rp23.000
16 09116-08131-000 BOLT (8X45) 4 Rp40.500
17 09132-04034-000 SCREW (4X18) 1 Rp15.000
18 09202-06031-000 PIN (6X12) 2 Rp21.500
19 09420-05009-000 KEY 1 Rp75.500
20 DISCONTINUE
SUB: 17400-98J01-000		 WATER PUMP REPAIR KIT 1 - OPT
21 17416-93J01-000
SUB: 17416-93J00-000		 ?SEALING, CASE 1 Rp87.000 OPT
22 17461-93J02-000
SUB: 17461-93J00-000		 ?IMPELLER, WATER PUMP 1 Rp314.500 OPT
23 17471-98J01-000 ?PANEL, PUMP CASE UNDER 1 Rp117.000 OPT
24 17472-98J00-000 ?GASKET, PUMP CASE PANEL 1 Rp70.000 OPT
25 17473-98J00-000 ?PANEL, WATER PUMP NO.2 1 Rp70.500 OPT
26 09420-05009-000 ?KEY 1 Rp75.500 OPT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
