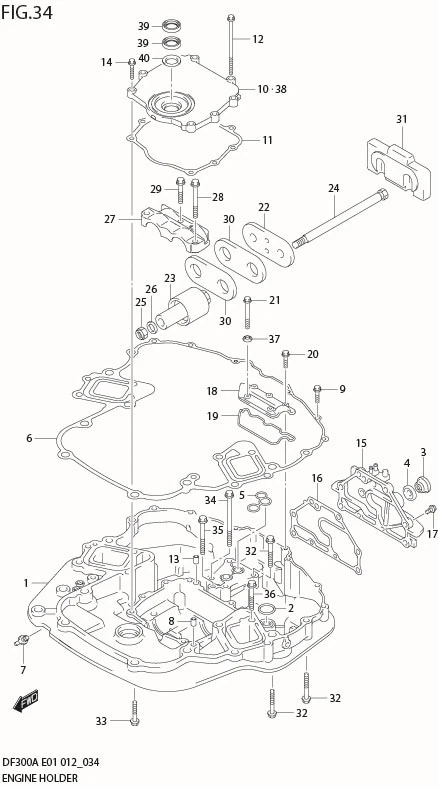

FIG 34 ENGINE HOLDER

No	No. Part	Description	Qty	Price Per Pcs
1	51111-93J05-0EP SUB: 51111-93J03-0EP	HOLDER, ENGINE (BLACK)	1	Rp16.068.000
2	16519-93J00-000	SEAL, ENGINE HOLDER OIL	1	Rp42.500
3	17913-93J00-000	PLUG, WATER	1	Rp39.000
4	17914-93J01-000 SUB: 17914-93J00-000	GASKET, WATER PLUG	1	Rp25.000
5	51116-93J01-000 SUB: 51116-93J00-000	SEAL, WATER RETURN	1	Rp45.500
6	51211-93J00-000	GASKET, ENGINE HOLDER	1	Rp744.500
7	61155-93J20-000	UNION, WATER INDICATOR	1	Rp146.000
8	09206-08001-000 SUB: 09206B08001N000	PIN (8X11)	2	Rp5.500
9	01550-08307-000	BOLT	6	Rp24.000
10	51120-93J02-000 SUB: 51122-93J02-000	COVER, MOUNT OIL SEAL	1	Rp2.022.500
11	51123-93J01-000 SUB: 51123-93J00-000	GASKET, MOUNT OIL SEAL COVER	1	Rp81.500
12	09103-08109-000	BOLT (8X120)	2	Rp19.000
13	09206-08001-000 SUB: 09206B08001N000	PIN (8X11)	2	Rp5.500
14	01550-0830A-000 SUB: 01550B0830AN000	BOLT	6	Rp4.000
15	DISCONTINUE SUB: 51140-98J00-0EP	COVER, ENGINE HOLDER (BLACK)	1	-
16	51142-93J00-000	GASKET, ENGINE HOLDER COV	1	Rp71.000
17	09116-08122-000	BOLT (8X30)	8	Rp29.000
18	51151-93J00-000	COVER, ENGINE HOLDER UPPER	1	Rp372.500
19	51152-93J00-000	SEAL, ENGINE HOLDER UPPER COV	1	Rp65.000
20	01550-08307-000	BOLT	3	Rp24.000
21	01550-08607-000	BOLT	2	Rp38.000
22	54123-93J03-000 SUB: 54123-93J02-000	PLATE, UPPER MOUNT	1	Rp718.500
23	54130-93J02-000 SUB: 54130-93J01-000	MOUNT, UPPER	2	Rp618.000
24	54112-93J00-000 SUB: 09100-14004-000	BOLT (14X220)	2	Rp795.500
25	29159-93J00-000 SUB: 09159-14026-000	NUT	2	Rp140.500
26	09160-15051-000	WASHER (15X24X3)	2	Rp16.000
27	54137-93J02-000	COVER, UPPER MOUNT	1	Rp567.000
28	DISCONTINUE SUB: 09116-10135-000	BOLT (10X95)	2	-
29	09116-10175-000	BOLT (10X50)	1	Rp77.500
30	54121-98J01-000 SUB: 54121-98J00-000	STOPPER, UPPER THRUST	2	Rp157.500
31	54140-98J11-000 SUB: 54140-98J00-000	MOUNT, UPPER THRUST REVERSE	1	Rp1.039.500
32	09116-10137-000	BOLT (10X70)	6	Rp88.000
33	09116-10175-000	BOLT (10X50)	4	Rp77.500
34	09116-10146-000	BOLT (10X195)	2	Rp227.000
35	DISCONTINUE SUB: 09116-10134-000	BOLT (10X115)	1	-
36	DISCONTINUE SUB: 09116-08126-000	BOLT (8X65)	4	-
37	09169-08038-000	WASHER (8.3X15X3)	2	Rp24.500
38	51120-93J02-000 SUB: 51122-93J02-000	COVER, MOUNT OIL SEAL	1	Rp2.022.500
39	51124-93J01-000 SUB: 51124-93J00-000	OIL SEAL	2	Rp89.500
40	51125-93J00-000	SCRAPER	1	Rp114.500
