DF300A E01 012

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEADFIG 2 CYLINDER BLOCKFIG 3 RING GEAR COVER (DF300A E1)FIG 4 RING GEAR COVER (DF300A E40)FIG 5 CRANKSHAFTFIG 6 TIMING CHAINFIG 7 CAMSHAFTFIG 8 INTAKE MANIFOLDFIG 9 EXHAUST COVERFIG 10 FUEL PUMP / FUEL VAPOR SEPARATOR (DF300A E1)FIG 11 FUEL PUMP / FUEL VAPOR SEPARATOR (DF300A E40)FIG 12 FUEL INJECTOR (DF300A E1)FIG 13 FUEL INJECTOR (DF300A E40)FIG 14 WATER PUMP (DF300A E1)FIG 15 WATER PUMP (DF300A E40)FIG 16 THERMOSTATFIG 17 THROTTLE BODYFIG 18 OIL PUMPFIG 19 OIL PANFIG 20 CLUTCH SHAFTFIG 21 CLUTCH RODFIG 22 TRANSMISSIONFIG 23 STARTING MOTORFIG 24 MAGNETOFIG 25 RECTIFIER / IGNITION COILFIG 26 SENSORFIG 27 HARNESS (DF300A E1)FIG 28 HARNESS (DF300A E40)FIG 29 PTT SWITCH / ENGINE CONTROL UNITFIG 30 CLAMP BRACKETFIG 31 SWIVEL BRACKETFIG 32 TRIM CYLINDERFIG 33 PTT MOTORFIG 34 ENGINE HOLDERFIG 35 DRIVE SHAFT HOUSINGFIG 36 GEAR CASEFIG 37 SIDE COVERFIG 38 ENGINE COVERFIG 39 FUEL HOSE (DF300A E1)FIG 40 FUEL HOSE (DF300A E40)FIG 41 OPT:METERFIG 42 OPT:HARNESSFIG 43 OPT:SWITCHFIG 44 OPT:TOP MOUNT SINGLEFIG 45 OPT:TOP MOUNT DUALFIG 46 OPT: FLUSH MOUNT REMOCONFIG 47 OPT:GASKET SET (DF300A E1)FIG 48 OPT:GASKET SET (DF300A E40)FIG 49 OPT:LOWRANCE GAUGE

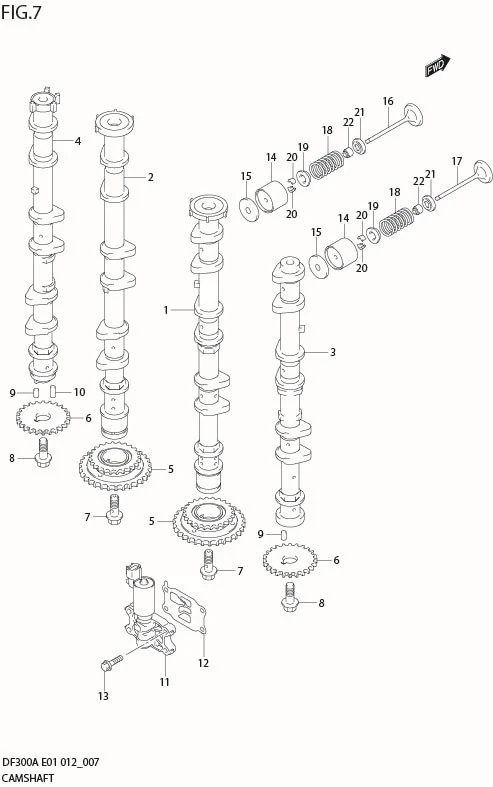

FIG 7 CAMSHAFT

FIG 7 CAMSHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 12701-98J10-000 CAMSHAFT, INTAKE STBD 1 Rp4.293.500
2 12705-98J10-000 CAMSHAFT, INTAKE PORT 1 Rp3.195.000
3 12721-98J10-000 CAMSHAFT, EXH STBD 1 Rp2.834.500
4 12729-98J20-000 CAMSHAFT, EXH PORT 1 Rp4.567.000
5 12740-93J00-000 SPROCKET ASSY, CAM TIMING 2 Rp3.116.500
6 12748-93J00-000 SPROCKET, EXH CAMSHAFT 2 Rp234.000
7 DISCONTINUE
SUB: 12753-93J00-000		 BOLT, INTAKE CAMSHAFT 2 -
8 12749-93J00-000 BOLT, CAMSHAFT EXHAUST 2 Rp27.000
9 09202-05032-000 PIN (5X12) 3 Rp12.000
10 09261-05006-000 PIN (5X18) 1 Rp13.500
11 16550-93J00-000 VALVE, OIL CONTROL 2 Rp1.786.000
12 16555-93J10-000
SUB: 16555-93J00-000		 GASKET, VALVE 2 Rp149.500
13 01550-06257-000
SUB: 01550B06257N000		 BOLT 8 Rp3.500
14 12891-93J10-000
SUB: 12891-93J00-000		 TAPPET 24 Rp296.500
15-14 12892-93J10-250
SUB: 12892-93J00-250		 SHIM, TAPPET 0 Rp93.000
15-20 12892-93J10-265
SUB: 12892-93J00-265		 SHIM, TAPPET 0 Rp91.000
15-21 12892-93J10-268
SUB: 12892-93J00-268		 SHIM, TAPPET 0 Rp92.500
15-19 12892-93J10-263
SUB: 12892-93J00-263		 SHIM, TAPPET 0 Rp96.000
15-22 12892-93J10-270
SUB: 12892-93J00-270		 SHIM, TAPPET 0 Rp92.500
15-23 12892-93J10-273
SUB: 12892-93J00-273		 SHIM, TAPPET 0 Rp100.000
15-24 12892-93J00-275 SHIM, TAPPET 0 Rp63.000
15-25 12892-93J00-278 SHIM, TAPPET 0 Rp87.500
15-26 12892-93J10-280
SUB: 12892-93J00-280		 SHIM, TAPPET 0 Rp103.000
15-27 12892-93J00-283 SHIM, TAPPET 0 Rp58.500
15-28 12892-93J00-285 SHIM, TAPPET 0 Rp58.500
15-29 DISCONTINUE
SUB: 12892-93J00-288		 SHIM, TAPPET 0 -
15-30 12892-93J00-290 SHIM, TAPPET 0 Rp63.000
15-31 12892-93J00-293 SHIM, TAPPET 0 Rp63.000
15-32 12892-93J00-295 SHIM, TAPPET 0 Rp63.000
15-33 12892-93J00-298 SHIM, TAPPET 0 Rp58.500
15-34 12892-93J00-300 SHIM, TAPPET 0 Rp63.000
15-17 12892-93J10-258
SUB: 12892-93J00-258		 SHIM, TAPPET 0 Rp93.000
15-1 12892-93J10-218
SUB: 12892-93J00-218		 SHIM, TAPPET 0 Rp95.500
15-2 12892-93J10-220
SUB: 12892-93J00-220		 SHIM, TAPPET 0 Rp100.000
15-3 12892-93J00-223 SHIM, TAPPET 0 Rp63.000
15-4 12892-93J10-225
SUB: 12892-93J00-225		 SHIM, TAPPET 0 Rp100.000
15-5 12892-93J10-228
SUB: 12892-93J00-228		 SHIM, TAPPET 0 Rp100.000
15-6 12892-93J10-230
SUB: 12892-93J00-230		 SHIM, TAPPET 0 Rp92.500
15-7 12892-93J10-233
SUB: 12892-93J00-233		 SHIM, TAPPET 0 Rp94.000
15-8 12892-93J10-235
SUB: 12892-93J00-235		 SHIM, TAPPET 0 Rp94.000
15-9 12892-93J10-238
SUB: 12892-93J00-238		 SHIM, TAPPET 0 Rp94.000
15-10 12892-93J10-240
SUB: 12892-93J00-240		 SHIM, TAPPET 0 Rp101.500
15-11 12892-93J10-243
SUB: 12892-93J00-243		 SHIM, TAPPET 0 Rp96.000
15-12 12892-93J10-245
SUB: 12892-93J00-245		 SHIM, TAPPET 0 Rp100.000
15-13 12892-93J00-248 SHIM, TAPPET 0 Rp63.000
15-15 12892-93J10-253
SUB: 12892-93J00-253		 SHIM, TAPPET 0 Rp93.000
15-16 12892-93J10-255
SUB: 12892-93J00-255		 SHIM, TAPPET 0 Rp95.500
15-18 12892-93J10-260
SUB: 12892-93J00-260		 SHIM, TAPPET 0 Rp98.000
16 12911-98J00-000 VALVE, INTAKE 12 Rp204.000
17 12915-93J60-000
SUB: 12915-93J10-000		 VALVE, EXHAUST 12 Rp397.000
18 12921-93J11-000
SUB: 12921-93J10-000		 SPRING, VALVE 24 Rp53.000
19 12931-78G00-000 RETAINER, VALVE SPRING 24 Rp35.500
20 12932-24400-000 COTTER, VALVE 48 Rp13.000
21 12933-69G10-000 SEAT, VALVE SPRING 24 Rp24.000
22 12934M68K00-000
SUB: 09289M05012-000		 OIL SEAL (5.5X11.5X9.3) 24 Rp16.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
