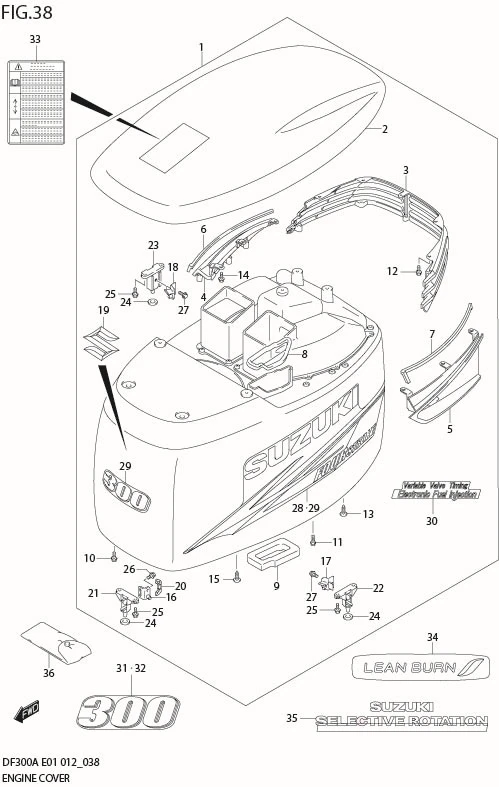

FIG 38 ENGINE COVER

No	No. Part	Description	Qty	Price Per Pcs
1	61400-98Y50-0EP	COVER SET, ENGINE (BLACK)	1	Rp14.151.500
2	61431-98J03-0EP	?COVER, TOP (BLACK)	1	-
3	61432-98J01-000	?LOUVER, AIR INTAKE	1	Rp595.500
4	61433-98J01-000	?GRIP, UPPER COVER STBD	1	Rp696.500
5	61434-98J02-000	?GRIP, UPPER COVER PORT	1	Rp696.500
6	DISCONTINUE SUB: 61439-98J00-000	?SEAL, GRIP STBD	1	-
7	DISCONTINUE SUB: 61439-98J10-000	?SEAL, GRIP PORT	1	-
8	61439-98J21-000	?SEAL, AIR VENT NO.2	1	Rp103.000
9	DISCONTINUE SUB: 61476-98J00-000	?SEAL, AIR VENT NO.1	1	-
10	01550-06167-000	?BOLT	2	Rp16.500
11	01550-06207-000 SUB: 01550B06207N000	?BOLT	3	Rp3.000
12	01550-06167-000	?BOLT	3	Rp16.500
13	03542-06169-000	?BOLT	5	Rp16.000
14	01550-06167-000	?BOLT	4	Rp16.500
15	03542-06169-000	?BOLT	4	Rp16.000
16	61610-98J00-000	?FASTENER (FRONT)	1	Rp151.500
17	61610-98J30-000	?FASTENER (PORT)	1	Rp413.500
18	61610-98J40-000	?FASTENER (STBD)	1	Rp413.500
19	77811-54GC0-0PG SUB: 77811B54GC0N0PG	?EMBLEM "S" (CHROME)	1	Rp49.500
20	DISCONTINUE SUB: 61614-98J00-000	?PROTECTOR, FASTENER	1	-
21	61621-98J01-000	?BRACKET, FASTENER FRONT	1	Rp143.500
22	61624-98J10-000	?BRACKET, FASTENER PORT	1	Rp143.500
23	61625-98J10-000	?BRACKET, FASTENER STBD	1	Rp143.500
24	61619-98J00-000	?CUSHION, ENG COV FASTENER	3	Rp50.000
25	01547-0616A-000 SUB: 01547-06167-000	?BOLT	6	Rp6.500
26	01550-06127-000	?BOLT	1	Rp17.000
27	01550-06127-000	?BOLT	2	Rp17.000
28	61443-93J32-000	?STRIPE, ENGINE COVER STBD	1	Rp805.000
29	61453-93J32-000	?STRIPE, ENGINE COVER PORT	1	Rp805.000
30	61446-93J33-000 SUB: 61446-93J32-000	?DECAL, EFI & VVT	1	Rp438.500
31	61422-98J12-000	MARK, EMBLEM FRONT (300)	1	Rp115.000
32	61435-98J12-000	MARK, EMBLEM REAR (300)	1	Rp149.500
33	61458-99E40-000	LABEL, ENGINE COVER	1	Rp93.500
34	61471-98J00-000	DECAL, LEAN BURN	1	Rp89.500
35	61473-98J00-000	DECAL (S.S.R.)	1	Rp46.500
36	09800-81834-000	TOOL SET	1	Rp226.500
