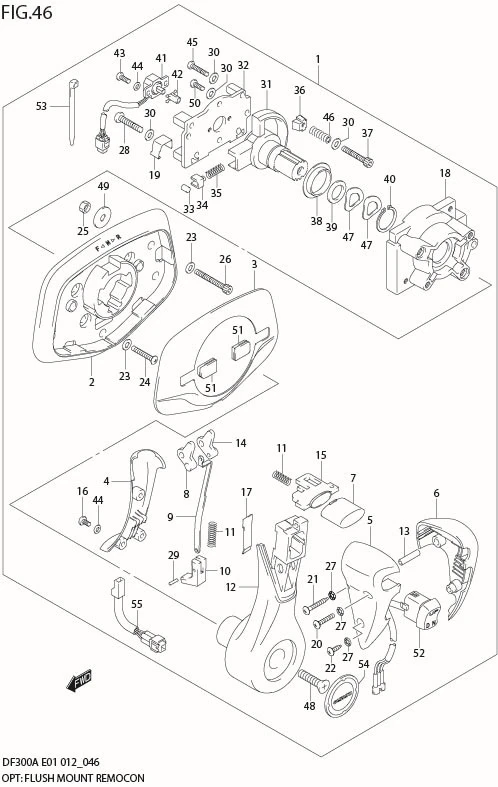

FIG 46 OPT: FLUSH MOUNT REMOCON

No	No. Part	Description	Qty	Price Per Pcs
1	67200-98J22-000	REMOCON ASSY, FLUSH MOUNT	1	Rp10.478.500
2	67271-98J20-000	?COVER, BOTTON BASE	1	Rp470.000
3	67264-98J00-000	?COVER, TOP BASE	1	Rp1.199.500
4	67263-98J20-000	?COVER, LEVER	1	Rp1.087.000
5	67261-98J20-000	?GRIP, A	1	Rp163.000
6	67261-98J30-000	?GRIP, B	1	Rp163.000
7	67265-98J00-000	?BUTTON, NEUTRAL LOCK	1	Rp679.500
8	67255-98J00-000	?LINK, NEUTRAL LOCK NO.1	1	Rp95.000
9	67258-98J00-000	?PLATE, JOINT	1	Rp104.000
10	67256-98J00-000	?BLOCK, NEUTRAL LOCK	1	Rp3.696.000
11	67259-98J00-000	?SPRING	3	Rp69.500
12	67251-98J20-000	?LEVER, HANDLE	1	Rp6.796.500
13	67294-98J00-000	?SPACER	1	Rp282.000
14	67254-98J00-000	?LINK, NEUTRAL LOCK NO.2	1	Rp95.000
15	67233-98J00-000	?SLIDER, NEUTRAL BUTTON	1	Rp139.000
16	67296-98JA0-000	?SCREW (4X10)	3	Rp41.500
17	67234-98J00-000	?PLATE, LEVER	1	Rp86.000
18	67211-98J20-000	?HOUSING	1	Rp907.000
19	67269-98J20-000	?CLAMP, LEAD	1	Rp2.568.500
20	67296-98JB0-000	?SCREW (4X30)	1	Rp52.500
21	67227-98J20-000	?SCREW, TAPPING (4X35)	1	Rp49.500
22	67227-98J30-000	?SCREW, TAPPING (4X20)	1	Rp47.500
23	67288-98J50-000	?WASHER, PLANE	8	Rp23.000
24	67296-98JC0-000	?SCREW (6X40)	4	Rp50.500
25	67287-98J00-000	?NUT	4	Rp28.000
26	67226-98J10-000	?BOLT (6X50)	4	Rp65.000
27	67288-98J60-000	?WASHER, INNTERNAL TOOTH (M4)	3	Rp35.000
28	67296-98JD0-000	?SCREW (5X40)	1	Rp51.500
29	67238-98J00-000	?PIN	2	Rp46.500
30	67288-98J70-000	?WASHER, PLANE	5	Rp26.000
31	DISCONTINUE SUB: 67246-98J00-000	?SHAFT, DRIVE REMOCON	1	-
32	DISCONTINUE SUB: 67222-98J00-000	?PANEL ASSY, BACK	1	-
33	DISCONTINUE SUB: 67236-98J00-000	?ROLLER, DETENT	1	-
34	DISCONTINUE SUB: 67235-98J00-000	?GUIDE, DETENT ROLLER	1	-
35	DISCONTINUE SUB: 67237-98J00-000	?SPRING, DETENT	1	-
36	DISCONTINUE SUB: 67223-98J00-000	?PAD, BRAKE	1	-
37	67296-98JE0-000	?SCREW, ADJUST (5X35)	1	Rp58.500
38	DISCONTINUE SUB: 67252-98J00-000	?BUSH, DRIVE	1	-
39	DISCONTINUE SUB: 67288-98J20-000	?WASHER, PLANE	1	-
40	DISCONTINUE SUB: 67292-98J00-000	?C RING	1	-
41	15980-98J00-000	?POTENTIOMETER	1	Rp2.772.000
42	DISCONTINUE SUB: 67227-98J10-000	?LEVER, POTENTIOMETER NO.2	1	-
43	67296-94300-000	?SCREW (4X10)	2	Rp10.500
44	DISCONTINUE SUB: 67288-98J00-000	?WASHER, PLANE	5	-
45	DISCONTINUE SUB: 67296-98J10-000	?SCREW (5X35)	1	-
46	DISCONTINUE SUB: 67288-98J10-000	?WASHER, SPRING	8	-
47	DISCONTINUE SUB: 67228-98J50-000	?WASHER, WAVE	2	-
48	DISCONTINUE SUB: 67296-98J60-000	?SCREW (8X30)	1	-
49	09160-06104-000	?WASHER (6.5X24X2)	4	Rp18.000
50	DISCONTINUE SUB: 67296-98J50-000	?SCREW (5X18)	2	-
51	DISCONTINUE SUB: 67272-98J00-000	?GROMMET	2	-
52	37850-98J02-000	?SWITCH ASSY, PTT	1	Rp487.000
53	DISCONTINUE SUB: 67269-98J10-000	?BAND	1	-
54	DISCONTINUE SUB: 68165-98J00-000	?MARK, LEVER (SUZUKI)	1	-
55	36890-98J00-000	?CONDENSER, ADAPTER HARNESS	1	Rp843.000
