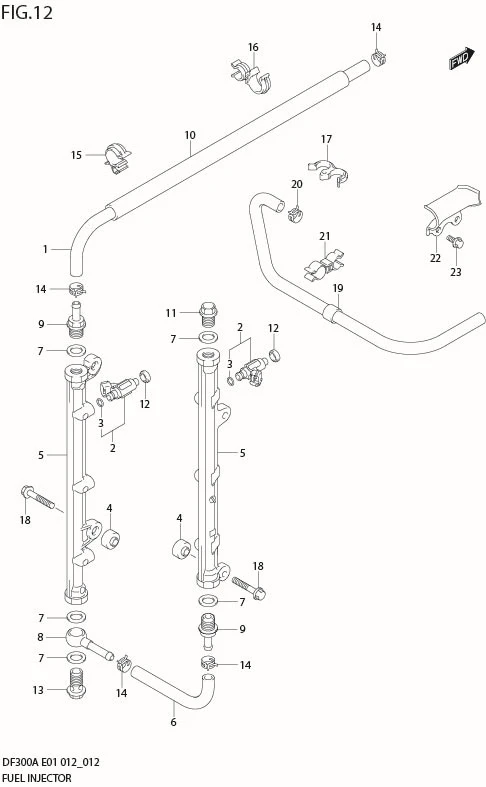

FIG 12 FUEL INJECTOR (DF300A E1)

FIG 12 FUEL INJECTOR (DF300A E1)
No No. Part Description Qty Price Per Pcs Remarks
1 15681-93J02-000
SUB: 15681-93J01-000		 HOSE, FUEL (3WAY TO DLVY PIPE) 1 Rp449.500
2 15710-96J00-000 INJECTOR ASSY, FUEL 6 Rp1.817.000
3 15717-16G00-000 ?O RING 6 Rp65.000
4 15735-58B00-000 INSULATOR, DELIVERY PIPE 4 Rp45.500
5 15751-93J00-000 PIPE, DELIVERY 2 Rp869.500
6 15756-93J02-000
SUB: 15756-93J01-000		 HOSE, FUEL (DLVY TO DLVY) 1 Rp287.500
7 15762-93J00-000 GASKET, DELIVERY PIPE 5 Rp15.000
8 15830-77EA0-000 UNION, DELIVERY PIPE 1 Rp124.500
9 15831-93J01-000
SUB: 15831-93J00-000		 UNION, DELIVERY PIPE 2 Rp105.000
10 18498-93J01-000
SUB: 18498-93J00-000		 PROTECTOR, FUEL HOSE (L:340) 1 Rp83.000
11 09247-14041-000 PLUG (14X14) 1 Rp33.000
12 09320-09022-000
SUB: 09320-08062-000		 CUSHION 6 Rp8.500
13 09360-14009-000 UNION 1 Rp72.500
14 09401-11425-000 CLIP 4 Rp35.500
15 DISCONTINUE
SUB: 09403-16307-000		 CLAMP 1 -
16 09408-00105-000 CLAMP 1 Rp30.500
17 09408-00155-000 CLAMP 1 Rp23.000
18 01550-08407-000 BOLT 4 Rp24.000
19 15680-93J21-000 HOSE, FUEL (PUMP TO FILTER) 1 Rp1.708.000
20 09401-13423-000 CLIP 1 Rp24.000
21 09408-00135-000 CLIP 2 Rp22.500
22 15684-98J00-000 GUIDE, FUEL HOSE 1 Rp76.500
23 DISCONTINUE
SUB: 01550-06107-000		 BOLT 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
