DF300A E01 012

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEADFIG 2 CYLINDER BLOCKFIG 3 RING GEAR COVER (DF300A E1)FIG 4 RING GEAR COVER (DF300A E40)FIG 5 CRANKSHAFTFIG 6 TIMING CHAINFIG 7 CAMSHAFTFIG 8 INTAKE MANIFOLDFIG 9 EXHAUST COVERFIG 10 FUEL PUMP / FUEL VAPOR SEPARATOR (DF300A E1)FIG 11 FUEL PUMP / FUEL VAPOR SEPARATOR (DF300A E40)FIG 12 FUEL INJECTOR (DF300A E1)FIG 13 FUEL INJECTOR (DF300A E40)FIG 14 WATER PUMP (DF300A E1)FIG 15 WATER PUMP (DF300A E40)FIG 16 THERMOSTATFIG 17 THROTTLE BODYFIG 18 OIL PUMPFIG 19 OIL PANFIG 20 CLUTCH SHAFTFIG 21 CLUTCH RODFIG 22 TRANSMISSIONFIG 23 STARTING MOTORFIG 24 MAGNETOFIG 25 RECTIFIER / IGNITION COILFIG 26 SENSORFIG 27 HARNESS (DF300A E1)FIG 28 HARNESS (DF300A E40)FIG 29 PTT SWITCH / ENGINE CONTROL UNITFIG 30 CLAMP BRACKETFIG 31 SWIVEL BRACKETFIG 32 TRIM CYLINDERFIG 33 PTT MOTORFIG 34 ENGINE HOLDERFIG 35 DRIVE SHAFT HOUSINGFIG 36 GEAR CASEFIG 37 SIDE COVERFIG 38 ENGINE COVERFIG 39 FUEL HOSE (DF300A E1)FIG 40 FUEL HOSE (DF300A E40)FIG 41 OPT:METERFIG 42 OPT:HARNESSFIG 43 OPT:SWITCHFIG 44 OPT:TOP MOUNT SINGLEFIG 45 OPT:TOP MOUNT DUALFIG 46 OPT: FLUSH MOUNT REMOCONFIG 47 OPT:GASKET SET (DF300A E1)FIG 48 OPT:GASKET SET (DF300A E40)FIG 49 OPT:LOWRANCE GAUGE

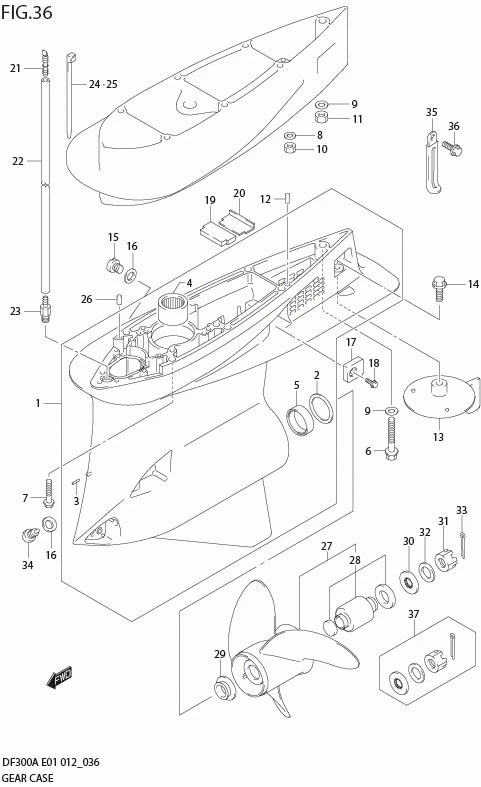

FIG 36 GEAR CASE

FIG 36 GEAR CASE
No No. Part Description Qty Price Per Pcs Remarks
1 55110-93L00-0EP CASE, GEAR (BLACK) 1 Rp25.343.000
2 55118-93L00-000 ?WASHER, FORWARD GEAR THRUST 1 Rp855.500
3 09206-03001-000 ?BUSH (2X3X11) 1 Rp27.500
4 09263-35048-000 ?BEARING (35X56X37) 1 Rp2.226.000
5 09263-80001-000 ?BEARING 1 Rp3.352.500
6 09100-12052-000 BOLT (12X70) 1 Rp112.000 W/TRANSOM(X)
7 09116-10150-000 BOLT (10X55) 6 Rp128.000 W/TRANSOM(X)
8 09160-10141-000 WASHER (10.5X19X2) 6 Rp27.000 W/TRANSOM(XX)
9 09160-12066-000 WASHER (12.5X22X2.5) 1 Rp13.500
10 09140-10031-000
SUB: 29141-93J20-000		 NUT, EXTENSION BOLT NO.1 6 Rp14.500 W/TRANSOM(XX)
11 09159-12014-000 NUT 1 Rp37.000 W/TRANSOM(XX)
12 09202-08006-000 PIN (8X12) 2 Rp27.000
13 55125-93L00-0EP
SUB: 55125-93L00-000		 TAB, TRIM 1 Rp1.398.500
14 09116-08137-000 BOLT (8X22) 1 Rp49.000
15 55128-93J10-000 PLUG, DRAIN 1 Rp97.500
16 09168-10038-000
SUB: 09168-10034-000		 GASKET (9.5X16.5X2) 2 Rp20.500
17 55320-95311-000
SUB: 55321-93J00-000		 ANODE, PROTECTION 2 Rp119.500
18 09116-06094-000 BOLT (6X15) 2 Rp19.000
19 55332-98J01-000
SUB: 55332-98J00-000		 RUBBER, EXHAUST SEAL 1 Rp70.000
20 55333-98J00-000 PLATE, EXHAUST SEAL 1 Rp124.500
21 DISCONTINUE
SUB: 55127-87D00-000		 UNION, SPEEDOMETER HOSE 1 -
22 DISCONTINUE
SUB: 09355-40805-00B		 HOSE (4X8X2000) 1 - L:2000->1300
23 09362-09008-000 UNION 1 Rp26.500
24 DISCONTINUE
SUB: 09407-10404-000		 CLAMP (L:100) 1 -
25 09401-08412-000 CLIP 1 Rp20.000
26 09202-06031-000 PIN (6X12) 2 Rp21.500
27-20 58200-93LA0-000 PROPELLER (3X16X18.5) 1 Rp11.967.000 W/COUNTER ROTATION
27-21 58800-93L20-000
SUB: 58200-93LB0-000		 PROPELLER (3X16X20) 1 Rp15.198.000 W/COUNTER ROTATION
27-22 58800-93L30-000
SUB: 58200-93LC0-000		 PROPELLER (3X16X21.5) 1 Rp15.198.000 W/COUNTER ROTATION
27-23 58800-93L40-000
SUB: 58200-93LD0-000		 PROPELLER (3X16X23) 1 Rp15.198.000 W/COUNTER ROTATION
27-24 58800-93L00-000
SUB: 58200-93LE0-000		 PROPELLER (3X16X17) 1 Rp15.198.000 W/COUNTER ROTATION
27-25 DISCONTINUE
SUB: 58200-93LF0-000		 PROPELLER (3X16X24.5) 1 - OPT
27-26 58800-93L60-000
SUB: 58200-93LG0-000		 PROPELLER (3X16X24.5) 1 Rp15.198.000 OPT
27-11 58200-96J20-000 PROPELLER (3X14.75X21) 1 Rp8.684.500 OPT
27-27 DISCONTINUE
SUB: 58200-96JA0-000		 PROPELLER (3X15.5X17) 1 - OPT
27-28 DISCONTINUE
SUB: 58200-96JB0-000		 PROPELLER (3X15.25X19) 1 - OPT
27-29 DISCONTINUE
SUB: 58200-96JC0-000		 PROPELLER (3X14.75X21) 1 - OPT
27-30 DISCONTINUE
SUB: 58200-96JD0-000		 PROPELLER (3X14.75X23) 1 - OPT
27-31 DISCONTINUE
SUB: 58200-96JE0-000		 PROPELLER (3X14.5X25) 1 - OPT
27-32 DISCONTINUE
SUB: 58200-96JF0-000		 PROPELLER (3X14.5X27) 1 - OPT
27-33 DISCONTINUE
SUB: 58300-93JA0-000		 PROPELLER (3X15.25X20) 1 - OPT
27-34 DISCONTINUE
SUB: 58300-93JB0-000		 PROPELLER (3X15.25X22) 1 - OPT
27-35 DISCONTINUE
SUB: 58300-93JC0-000		 PROPELLER (3X15.25X24) 1 - OPT
27-36 DISCONTINUE
SUB: 58300-93JD0-000		 PROPELLER (3X15.25X26) 1 - OPT
27-18 DISCONTINUE
SUB: 58300-93J30-000		 PROPELLER (4X15.25X24) 1 - OPT
27-1 58700-93L01-000
SUB: 58200-93L00-000		 PROPELLER (3X16X17) 1 Rp15.198.000 W/REGULAR ROTATION
27-2 58700-93L11-000
SUB: 58200-93L10-000		 PROPELLER (3X16X18.5) 1 Rp15.198.000 W/REGULAR ROTATION
27-3 58700-93L21-000
SUB: 58200-93L20-000		 PROPELLER (3X16X20) 1 Rp15.198.000 W/REGULAR ROTATION
27-4 58700-93L31-000
SUB: 58200-93L30-000		 PROPELLER (3X16X21.5) 1 Rp15.198.000 W/REGULAR ROTATION
27-5 58700-93L41-000
SUB: 58200-93L40-000		 PROPELLER (3X16X23) 1 Rp15.198.000 W/REGULAR ROTATION
27-6 58700-93L50-000
SUB: 58200-93L50-000		 PROPELLER (3X16X24.5) 1 Rp12.289.500 W/REGULAR ROTATION
27-7 58700-93L60-000
SUB: 58200-93L60-000		 PROPELLER (3X16X26) 1 Rp8.257.500 OPT
27-8 58700-93L70-000
SUB: 58200-93L70-000		 PROPELLER (3X16X27.5) 1 Rp15.664.000 OPT
27-10 DISCONTINUE
SUB: 58200-96J10-000		 PROPELLER (3X15.25X19) 1 - OPT
27-12 DISCONTINUE
SUB: 58200-96J30-000		 PROPELLER (3X14.75X23) 1 - OPT
27-13 DISCONTINUE
SUB: 58200-96J40-000		 PROPELLER (3X14.5X25) 1 - OPT
27-14 DISCONTINUE
SUB: 58200-96J50-000		 PROPELLER (3X14.5X27) 1 - OPT
27-15 DISCONTINUE
SUB: 58300-93J00-000		 PROPELLER (4X15.25X18) 1 - OPT
27-16 DISCONTINUE
SUB: 58300-93J10-000		 PROPELLER (4X15.25X20) 1 - OPT
27-17 DISCONTINUE
SUB: 58300-93J20-000		 PROPELLER (4X15.25X22) 1 - OPT
27-19 DISCONTINUE
SUB: 58300-93J40-000		 PROPELLER (4X15.25X26) 1 - OPT
27-9 DISCONTINUE
SUB: 58200-96J00-000		 PROPELLER (3X15.5X17) 1 - OPT
28 58105-93J10-000 ?BUSH SET, PROPELLER 1 Rp1.917.000 OPT
29 57632-93L01-000
SUB: 57632-93L00-000		 STOPPER, PROPELLER BUSH 1 Rp1.199.000
30 57633-87D30-000 SPACER, PROPELLER NUT 1 Rp349.500
31 09141-18005-000 NUT 1 Rp71.000
32 09160-18028-000 WASHER (18.5X31X1) 1 Rp25.500
33 09204-03003-000 COTTER PIN 1 Rp17.500
34 55128-93L00-000 PLUG, DRAIN 1 Rp126.000
35 DISCONTINUE
SUB: 29404-93J10-000		 CLAMP 1 -
36 01550-06127-000 BOLT 2 Rp17.000
37 57630-92E00-000 KIT, PROPELLER NUT 1 Rp1.017.000 OPT
38 25700-93L00-000 KIT, GEAR CASE SEALING 1 Rp361.500 OPT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
