DF300A E01 012

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEADFIG 2 CYLINDER BLOCKFIG 3 RING GEAR COVER (DF300A E1)FIG 4 RING GEAR COVER (DF300A E40)FIG 5 CRANKSHAFTFIG 6 TIMING CHAINFIG 7 CAMSHAFTFIG 8 INTAKE MANIFOLDFIG 9 EXHAUST COVERFIG 10 FUEL PUMP / FUEL VAPOR SEPARATOR (DF300A E1)FIG 11 FUEL PUMP / FUEL VAPOR SEPARATOR (DF300A E40)FIG 12 FUEL INJECTOR (DF300A E1)FIG 13 FUEL INJECTOR (DF300A E40)FIG 14 WATER PUMP (DF300A E1)FIG 15 WATER PUMP (DF300A E40)FIG 16 THERMOSTATFIG 17 THROTTLE BODYFIG 18 OIL PUMPFIG 19 OIL PANFIG 20 CLUTCH SHAFTFIG 21 CLUTCH RODFIG 22 TRANSMISSIONFIG 23 STARTING MOTORFIG 24 MAGNETOFIG 25 RECTIFIER / IGNITION COILFIG 26 SENSORFIG 27 HARNESS (DF300A E1)FIG 28 HARNESS (DF300A E40)FIG 29 PTT SWITCH / ENGINE CONTROL UNITFIG 30 CLAMP BRACKETFIG 31 SWIVEL BRACKETFIG 32 TRIM CYLINDERFIG 33 PTT MOTORFIG 34 ENGINE HOLDERFIG 35 DRIVE SHAFT HOUSINGFIG 36 GEAR CASEFIG 37 SIDE COVERFIG 38 ENGINE COVERFIG 39 FUEL HOSE (DF300A E1)FIG 40 FUEL HOSE (DF300A E40)FIG 41 OPT:METERFIG 42 OPT:HARNESSFIG 43 OPT:SWITCHFIG 44 OPT:TOP MOUNT SINGLEFIG 45 OPT:TOP MOUNT DUALFIG 46 OPT: FLUSH MOUNT REMOCONFIG 47 OPT:GASKET SET (DF300A E1)FIG 48 OPT:GASKET SET (DF300A E40)FIG 49 OPT:LOWRANCE GAUGE

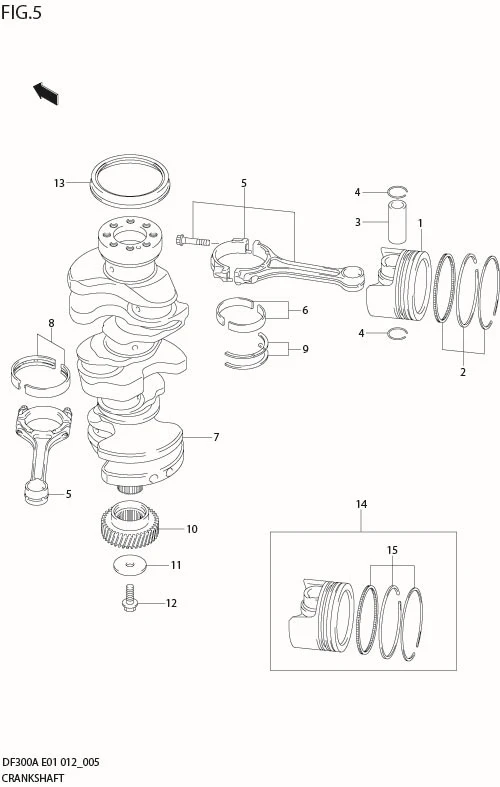

FIG 5 CRANKSHAFT

FIG 5 CRANKSHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 12111-98J00-0B0 PISTON 6 Rp1.629.000
2 12140-98J00-000 RING SET, PISTON 6 Rp570.000
3 12151-02F00-000 PIN, PISTON 6 Rp138.500
4 09381-22010-000 CIRCLIP 12 Rp14.500
5 12160-98J00-000 CONNROD ASSY 6 Rp1.188.000
6-1 12100-98810-0A0 BEARING SET, CONNROD (GREEN) 6 Rp201.000
6-2 12100-98810-025 BEARING SET, CONNROD (US:0.25) 6 Rp241.000 OPT
7 12220-98J00-000 CRANKSHAFT 1 Rp20.756.000
8-6 DISCONTINUE
SUB: 12300-98810-0AA		 BEARING SET, CRANKSHAFT 4 - OPT
8-10 DISCONTINUE
SUB: 12300-98810-0EA		 BEARING SET, CRANKSHAFT 4 - OPT
8-9 DISCONTINUE
SUB: 12300-98810-0DA		 BEARING SET, CRANKSHAFT 4 - OPT
8-8 DISCONTINUE
SUB: 12300-98810-0CA		 BEARING SET, CRANKSHAFT 4 - OPT
8-7 DISCONTINUE
SUB: 12300-98810-0BA		 BEARING SET, CRANKSHAFT (RED) 4 - OPT
8-5 12340-98J00-0E0 BEARING SET, CRANKSHAFT (PINK) 4 Rp390.000
8-4 12340-98J00-0D0 BEARING SET, CRANKSHAFT (BULE) 4 Rp390.000
8-3 12340-98J00-0C0 BEARING SET, CRANKSHAFT 4 Rp382.500
8-2 12340-98J00-0B0 BEARING SET, CRANKSHAFT (NON) 4 Rp364.000
8-1 12340-98J00-0A0 BEARING SET, CRANKSHAFT 4 Rp381.500
9-1 12300-98821-000 BEARING SET, CRANK THRUST 1 Rp236.500
9-2 12300-98821-012 BEARING SET, CRANK THRUST 1 Rp211.500 OPT
10 12242-98J00-000 GEAR, DRIVE 1 Rp1.298.500
11 09160-10104-000 WASHER (10.5X50X3.2) 1 Rp26.000
12 01550-1025A-000
SUB: 01550B1025AN000		 BOLT 1 Rp3.500
13 09283-91001-000 OIL SEAL (91X109X10) 1 Rp314.500
14 12100-98J00-050 PISTON SET (OS:0.50) 6 Rp2.070.500 OPT
15 12140-98J00-050 ?RING SET, PISTON (OS:0.50) 6 Rp623.500 OPT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
