DF300A E01 012

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEADFIG 2 CYLINDER BLOCKFIG 3 RING GEAR COVER (DF300A E1)FIG 4 RING GEAR COVER (DF300A E40)FIG 5 CRANKSHAFTFIG 6 TIMING CHAINFIG 7 CAMSHAFTFIG 8 INTAKE MANIFOLDFIG 9 EXHAUST COVERFIG 10 FUEL PUMP / FUEL VAPOR SEPARATOR (DF300A E1)FIG 11 FUEL PUMP / FUEL VAPOR SEPARATOR (DF300A E40)FIG 12 FUEL INJECTOR (DF300A E1)FIG 13 FUEL INJECTOR (DF300A E40)FIG 14 WATER PUMP (DF300A E1)FIG 15 WATER PUMP (DF300A E40)FIG 16 THERMOSTATFIG 17 THROTTLE BODYFIG 18 OIL PUMPFIG 19 OIL PANFIG 20 CLUTCH SHAFTFIG 21 CLUTCH RODFIG 22 TRANSMISSIONFIG 23 STARTING MOTORFIG 24 MAGNETOFIG 25 RECTIFIER / IGNITION COILFIG 26 SENSORFIG 27 HARNESS (DF300A E1)FIG 28 HARNESS (DF300A E40)FIG 29 PTT SWITCH / ENGINE CONTROL UNITFIG 30 CLAMP BRACKETFIG 31 SWIVEL BRACKETFIG 32 TRIM CYLINDERFIG 33 PTT MOTORFIG 34 ENGINE HOLDERFIG 35 DRIVE SHAFT HOUSINGFIG 36 GEAR CASEFIG 37 SIDE COVERFIG 38 ENGINE COVERFIG 39 FUEL HOSE (DF300A E1)FIG 40 FUEL HOSE (DF300A E40)FIG 41 OPT:METERFIG 42 OPT:HARNESSFIG 43 OPT:SWITCHFIG 44 OPT:TOP MOUNT SINGLEFIG 45 OPT:TOP MOUNT DUALFIG 46 OPT: FLUSH MOUNT REMOCONFIG 47 OPT:GASKET SET (DF300A E1)FIG 48 OPT:GASKET SET (DF300A E40)FIG 49 OPT:LOWRANCE GAUGE

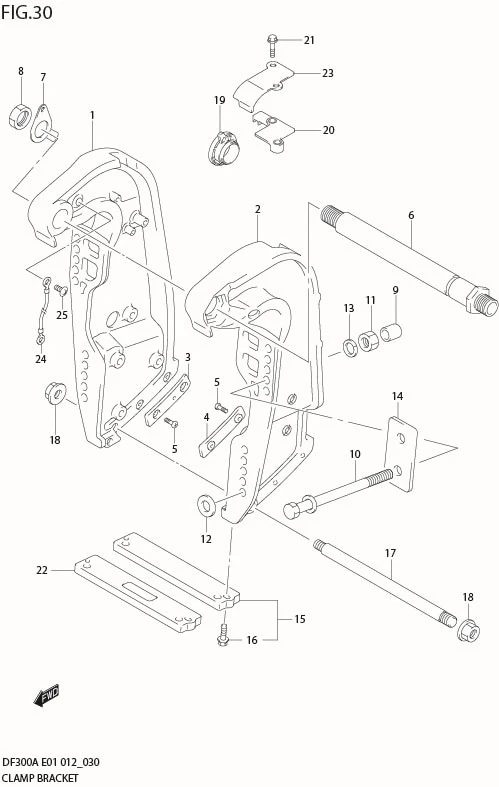

FIG 30 CLAMP BRACKET

FIG 30 CLAMP BRACKET
No No. Part Description Qty Price Per Pcs Remarks
1 41111-93J16-0EP
SUB: 41111-93J14-0EP		 BRACKET, CLAMP STBD (BLACK) 1 Rp6.173.500
2 41121-93J06-0EP BRACKET, CLAMP PORT (BLACK) 1 Rp3.538.000
3 41117-93J02-000
SUB: 41117-93J01-000		 PLATE, CLAMP BRKT LOWER STBD 1 Rp149.000
4 41122-93J01-000 PLATE, CLAMP BRKT LOWER PORT 1 Rp167.000
5 09125-06063-000 SCREW (6X10) 4 Rp16.000
6 41130-93J12-000 SHAFT, CLAMP BRKT 1 Rp2.093.000
7 41135-93J11-000 WASHER, CLAMP BRACKET SHAFT 1 Rp61.500
8 09159-22006-000 NUT 1 Rp188.000
9 DISCONTINUE
SUB: 41153-93J00-000		 CAP, TRANSOM BOLT 6 -
10-1 09100-12085-000 BOLT (12.7X115) 1 Rp166.500 OPT
10-2 09100-12092-000 BOLT (12X75) 1 Rp136.500 OPT
10-3 09100-12085-000 BOLT (12.7X115) 6 Rp166.500
11 09159-12062-000 NUT 6 Rp65.000
12 09160-13022-000
SUB: 09160-13017-000		 WASHER (13.2X45X5) 4 Rp115.500
13 09160-13021-000
SUB: 09160-13016-000		 WASHER (13.2X26X3) 6 Rp112.000
14 41155-93J02-000 PLATE, TRANSOM 2 Rp213.000
15 55320-94910-000
SUB: 55320-94900-000		 ZINC SET, PROTECTION 1 Rp303.000
16 09116-06121-000 ?BOLT (6X25) 2 Rp20.500
17 45421-87D03-000
SUB: 45421-87D02-000		 PIN, TILT LOCK 1 Rp288.000
18 09159-14020-000 NUT 2 Rp35.000
19 48140-93J01-000 CAM, TILT LIMIT SWITCH 1 Rp143.500
20 DISCONTINUE
SUB: 48144-93J00-000		 HOLDER, TILT LIMIT SWITCH 1 -
21 09103-06278-000 BOLT (6X25) 2 Rp17.000
22 55321-94910-000 ANODE (MAGNESIUM) 1 Rp483.000 OPT
23 DISCONTINUE
SUB: 48145-93J00-000		 COVER, TILT LIMIT SWITCH 1 -
24 36894-87D00-000 LEAD (CLAMP TO SWIVEL) 1 Rp105.000
25 09125-06063-000 SCREW (6X10) 2 Rp16.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
