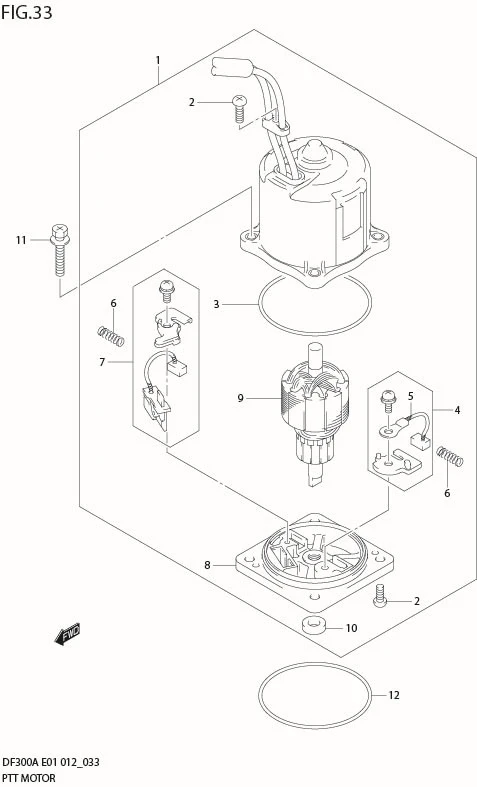

FIG 33 PTT MOTOR

FIG 33 PTT MOTOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	38100-93J05-000 SUB: 38100-93J03-000	MOTOR ASSY, PTT	1	Rp6.004.000
2	31111-94900-000	?SCREW, YOKE	3	Rp36.000
3	31123-94910-000	?O RING	1	Rp111.500
4	31133-90J20-000 SUB: 31133-90J00-000	?BRUSH SET, PLUS	1	Rp123.000
5	31133-94910-000 SUB: 31133-94900-000	??BRUSH	1	Rp132.000
6	31135-94900-000	?SPRING	2	Rp43.000
7	31136-90J30-000 SUB: 31136-90J10-000	?BREAKER	1	Rp629.500
8	31173-94920-000 SUB: 31173-94910-000	?HOLDER, BRUSH	1	Rp3.282.500
9	31311-93J00-000	?ARMATURE	1	Rp3.759.000
10	33799-97E00-000	?OIL SEAL	1	Rp207.000
11	31281-92J10-000 SUB: 31281-92J00-000	BOLT	4	Rp86.500
12	48585-95E00-000	O RING	1	Rp34.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
