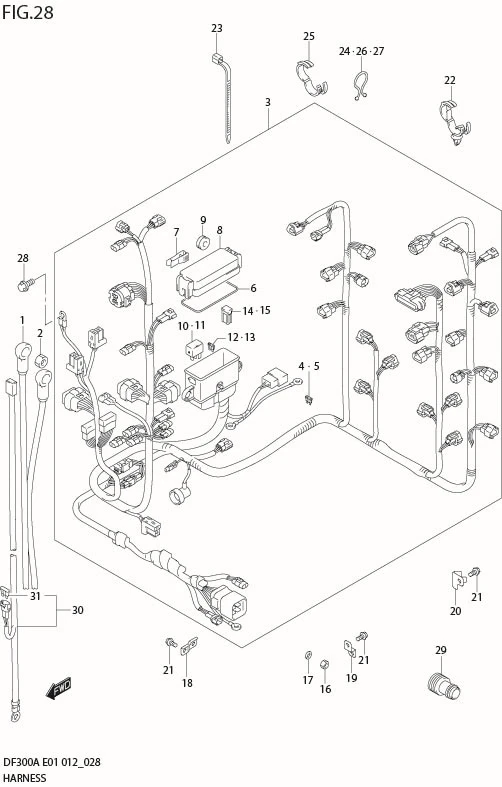

FIG 28 HARNESS (DF300A E40)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	33810-98J01-000 SUB: 33810-93J01-000	CABLE, STARTER MOTOR	1	Rp3.417.000	L:4000
2	08316-10087-000	NUT	1	Rp17.000
3	36610-98J42-000 SUB: 36610-98J40-000	HARNESS ASSY, WIRING	1	Rp14.310.500
4	09481-10501-000 SUB: 09481M10501-000	?FUSE (10A)	2	Rp12.000
5	09481-15501-000 SUB: 09481M15501-000	?FUSE (15A)	2	Rp12.000
6	36721-96J00-000	?O-RING, UPPER COVER	1	Rp95.000
7	36737-96J00-000	?PULLER, FUSE	1	Rp81.500
8	36738-98J00-000	?COVER, FUSE CASE UPPER	1	Rp154.000
9	09320-08510-000 SUB: 09320-08021-000	?CUSHION	2	Rp15.500
10	38860-76F01-000 SUB: 38860B76F01N000	?RELAY, ENG CONTROL UNIT	1	Rp47.000
11	38860-76F01-000 SUB: 38860B76F01N000	?RELAY, STARTER MOTOR	1	Rp47.000
12	09481-15501-000 SUB: 09481M15501-000	?FUSE (15A)	5	Rp12.000
13	09481-30501-000 SUB: 09481M30501-000	?FUSE (30A)	3	Rp13.000
14	09481-40401-000	?FUSE (40A)	1	Rp49.500
15	09481M60401-000	?FUSE (60A)	2	Rp66.000
16	08310-00067-000	NUT	1	Rp13.000
17	08321-01067-000	WASHER	1	Rp13.500
18	36617-93J00-000	BRACKET, HARNESS	3	Rp16.000
19	36617-93J10-000	BRACKET, HARNESS	8	Rp17.000
20	DISCONTINUE SUB: 36617-98J00-000	BRACKET, HARNESS	1	-
21	01550-06127-000	BOLT	12	Rp17.000
22	09403-20308-000	CLAMP	1	Rp20.500
23	09407-18402-000	CLAMP (L:165)	4	Rp8.000
24	DISCONTINUE SUB: 09408-00008-000	CLIP (ID:20)	2	-
25	DISCONTINUE SUB: 09408-00184-000	CLAMP	3	-
26	DISCONTINUE SUB: 09408-00012-000	CLIP (ID:11.5)	1	-
27	DISCONTINUE SUB: 09408-00024-000	CLIP (ID:23)	1	-
28	01550-06127-000	BOLT	1	Rp17.000
29	17917-87L00-000	CONNECTOR, FLUSH WATER	1	Rp67.500
30	36625-98J10-000	WIRE ASSY, BATTEERY	1	Rp925.000	OPT
31	09481-30501-000 SUB: 09481M30501-000	?FUSE (30A)	1	Rp13.000	OPT
