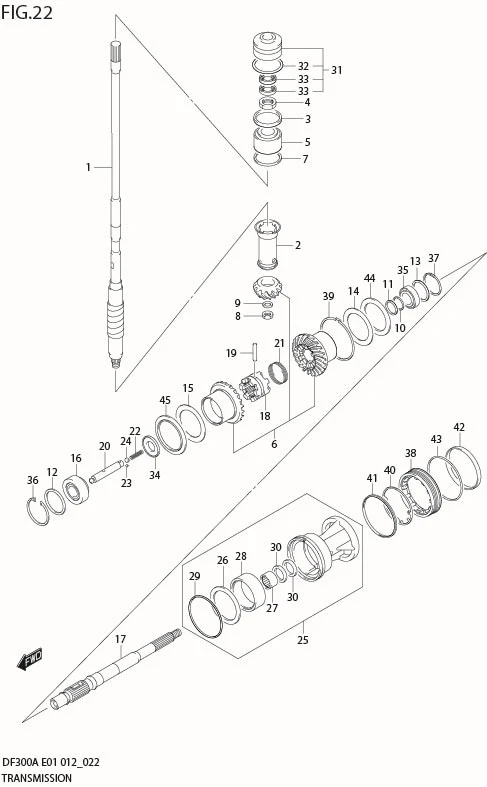

FIG 22 TRANSMISSION

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	57110-93L22-000 SUB: 57110-93L20-000	SHAFT, DRIVE (XX)	1	Rp12.920.500	W/TRANSOM(XX)
1-1	57110-93L12-000 SUB: 57110-93L10-000	SHAFT, DRIVE (X)	1	Rp11.132.500	W/TRANSOM(X)
2	57133-93L00-000	COLLAR, DRIVE SHAFT	1	Rp112.000
3	57134-93J00-000	SPACER, DRIVE SHAFT BEARING	1	Rp208.000
4	09159-28003-000	NUT	1	Rp416.500
5	09269-32002-000	BEARING (32X66X49)	1	Rp1.819.000
6	57300-93L03-000 SUB: 57300-93L00-000	SET GEAR	1	Rp17.619.500
7-4	09181-60007-000	SHIM (60X66X0.6)	1	Rp39.000
7-10	09181-60013-000	SHIM (60X66X0.9)	1	Rp37.500
7-9	09181-60012-000	SHIM (60X66X0.85)	1	Rp39.000
7-8	09181-60011-000	SHIM (60X66X0.8)	1	Rp38.500
7-7	09181-60010-000	SHIM (60X66X0.75)	1	Rp38.500
7-6	09181-60009-000	SHIM (60X66X0.7)	1	Rp37.500
7-5	09181-60008-000	SHIM (60X66X0.65)	1	Rp39.000
7-3	09181-60006-000	SHIM (60X66X0.55)	1	Rp37.500
7-2	09181-60005-000	SHIM (60X66X0.5)	1	Rp39.000
7-1	09181-60004-000	SHIM (60X66X0.45)	1	Rp42.500
8	09140-16026-000	NUT	1	Rp40.000
9	08221-16256-000	WASHER	1	Rp11.500
10	09180-32006-000	SPACER (32.4X40X3)	1	Rp140.500	REV GEAR
11-1	09181-32035-000	SHIM (32X37X0.5)	1	Rp41.500	REV GEAR
11-10	09181-32044-000	SHIM (32X37X0.95)	1	Rp29.000	REV GEAR
11-9	09181-32043-000	SHIM (32X37X0.9)	1	Rp29.000	REV GEAR
11-8	09181-32042-000	SHIM (32X37X0.85)	1	Rp29.000	REV GEAR
11-7	09181-32041-000	SHIM (32X37X0.8)	1	Rp29.000	REV GEAR
11-6	09181-32040-000	SHIM (32X37X0.75)	1	Rp29.000	REV GEAR
11-5	09181-32039-000	SHIM (32X37X0.7)	1	Rp29.000	REV GEAR
11-4	09181-32038-000	SHIM (32X37X0.65)	1	Rp46.000	REV GEAR
11-3	09181-32037-000	SHIM (32X37X0.6)	1	Rp29.000	REV GEAR
11-2	09181-32036-000	SHIM (32X37X0.55)	1	Rp29.000	REV GEAR
12	09160-60012-000	WASHER (60X72X3)	1	Rp96.000	FWD GEAR
13	09160-50006-000	WASHER (50X58X3)	1	Rp65.000	REV GEAR
14-10	09181-78010-000	SHIM (78.5X105X0.95)	1	Rp84.000	REV GEAR
14-9	09181-78009-000	SHIM (78.5X105X0.9)	1	Rp84.000	REV GEAR
14-8	09181-78008-000	SHIM (78.5X105X0.85)	1	Rp84.000	REV GEAR
14-7	09181-78007-000	SHIM (78.5X105X0.8)	1	Rp84.000	REV GEAR
14-6	09181-78006-000	SHIM (78.5X105X0.75)	1	Rp84.000	REV GEAR
14-4	09181-78004-000	SHIM (78.5X105X0.65)	1	Rp84.000	REV GEAR
14-5	09181-78005-000	SHIM (78.5X105X0.7)	1	Rp84.000	REV GEAR
14-1	09181-78001-000	SHIM (78.5X105X0.5)	1	Rp131.500	REV GEAR
14-3	09181-78003-000	SHIM (78.5X105X0.6)	1	Rp84.000	REV GEAR
14-2	09181-78002-000	SHIM (78.5X105X0.55)	1	Rp48.500	REV GEAR
15-9	09181-84009-000	SHIM (83.5X110X0.9)	1	Rp130.500	FWD GEAR
15-10	09181-84010-000	SHIM (83.5X110X0.95)	1	Rp87.000	FWD GEAR
15-8	09181-84008-000	SHIM (83.5X110X0.85)	1	Rp87.000	FWD GEAR
15-7	09181-84007-000	SHIM (83.5X110X0.8)	1	Rp87.000	FWD GEAR
15-6	09181-84006-000	SHIM (83.5X110X0.75)	1	Rp87.000	FWD GEAR
15-5	09181-84005-000	SHIM (83.5X110X0.7)	1	Rp87.000	FWD GEAR
15-4	09181-84004-000	SHIM (83.5X110X0.65)	1	Rp50.000	FWD GEAR
15-3	09181-84003-000	SHIM (83.5X110X0.6)	1	Rp87.000	FWD GEAR
15-2	09181-84002-000	SHIM (83.5X110X0.55)	1	Rp87.000	FWD GEAR
15-1	09181-84001-000	SHIM (83.5X110X0.5)	1	Rp135.500	FWD GEAR
16	09265-30033-000	BEARING (30X72X28.75)	1	Rp627.500
17	57610-93L00-000	SHAFT, PROPELLER	1	Rp9.417.000
18	57621-93L00-000	SHIFTER, CLUTCH DOG	1	Rp3.904.500
19	09202-08013-000	PIN (8X55)	1	Rp78.500
20	57631-93L01-000 SUB: 57631-93L00-000	PIN, CONNECTOR	1	Rp338.500
21	09440-58001-000	SPRING	1	Rp58.000
22	57617-93L00-000	SPRING, DETENT	1	Rp33.000
23	06111M07004-000 SUB: 06111-07004-000	BALL	2	Rp3.000
24	06111-11004-000	BALL	2	Rp12.500
25	56120-93L11-000 SUB: 56120-93L00-0EP	HOUSING, PROP SFT BRG (BLACK)	1	Rp7.470.000
26	56124-93L00-000	?WASHER, REVERSE GEAR THRUST	1	Rp855.500
27	09263-30063-000 SUB: 09263-30023-000	?BEARING (30X40X25)	1	Rp345.000
28	09263-72001-000	?BEARING (72X90X34)	1	Rp6.943.500
29	09280-00047-000	?O RING (D:3,ID:109)	1	Rp83.500
30	09282-30006-000	?OIL SEAL (30X45X6)	2	Rp45.000
31	56130-93J02-000 SUB: 56130-93J01-000	HOUSING, DRIVE SHAFT BRG	1	Rp998.000
32	09280-66004-000	?O RING (D:3.1,ID:65.4)	1	Rp43.500
33	09282-24004-000	?OIL SEAL (24X40X7)	2	Rp43.000
34	57622-93L00-000	SPACER, FORWARD THRUST	1	Rp143.000
35	09265-32003-000	BEARING (32X58X18.9)	1	Rp458.500
36	09381-72001-000	CIRCLIP	1	Rp73.500
37	08331-41589-000 SUB: 08331-4158A-000	CIRCLIP	1	Rp26.000
38	56122-93L00-000	STOPPER, PROP SFT BRG HSG	1	Rp683.000
39	56126-93L00-000	WASHER., PROP SFT BRG HSG NO.1	1	Rp224.000
40	56127-93L00-000	WASHER., PROP SFT BRG HSG NO.2	1	Rp88.500
41	56128-93L00-000	SEAL, PROP SFT BRG HSG	1	Rp113.000
42	56129-93L00-000	BUSH, STOPPER	1	Rp817.000
43	09280-00050-000 SUB: 09280-00030-000	O RING (D:1.8,ID:117.6)	1	Rp87.500
44	09263-78001-000	BEARING (78.26X105X5.45)	1	Rp1.796.500	REVERSE
45	09263-83001-000	BEARING	1	Rp1.518.500	FORWARD
