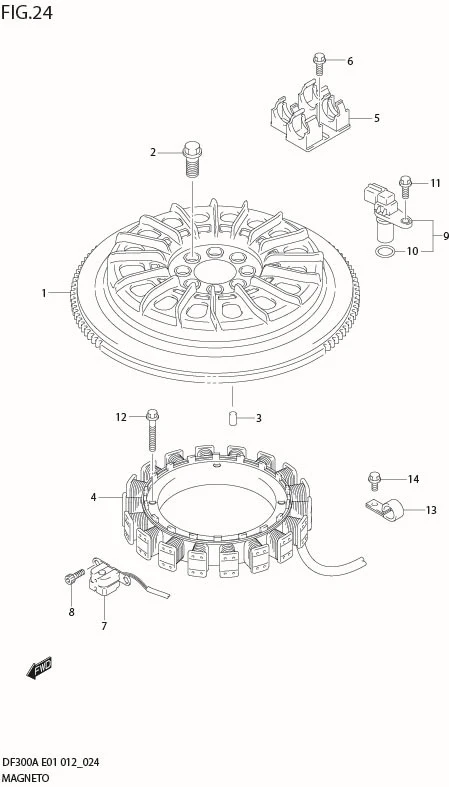

FIG 24 MAGNETO

FIG 24 MAGNETO

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	32102-98J20-000 SUB: 32102-98J01-000	FLYWHEEL	1	Rp11.370.500
2	09103-12071-000	BOLT (12X26)	8	Rp38.000
3	09202-06031-000	PIN (6X12)	1	Rp21.500
4	32120-93J10-000 SUB: 32120-93J00-000	COIL, BATTERY CHARGING	1	Rp5.777.500
5	DISCONTINUE SUB: 32131-93J00-000	HOLDER, STATOR CONNECTING	1	-
6	01550-06167-000	BOLT	2	Rp16.500
7	32160-88L01-000 SUB: 32160-88L00-000	COIL, IGNITION TIMING	1	Rp1.036.000
8	09106-05030-000	BOLT (5X10)	2	Rp16.000
9	33220-98J00-000 SUB: 33220-69J00-000	SENSOR, CAM POSITION	3	Rp998.000
10	33221-42F00-000	?O RING	3	Rp46.500
11	01550-06167-000	BOLT	3	Rp16.500
12	09103-06231-000	BOLT (6X35)	4	Rp17.500
13	09403-13413-000 SUB: 09403-13408-000	CLAMP	2	Rp41.500
14	01550-06127-000	BOLT	2	Rp17.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
