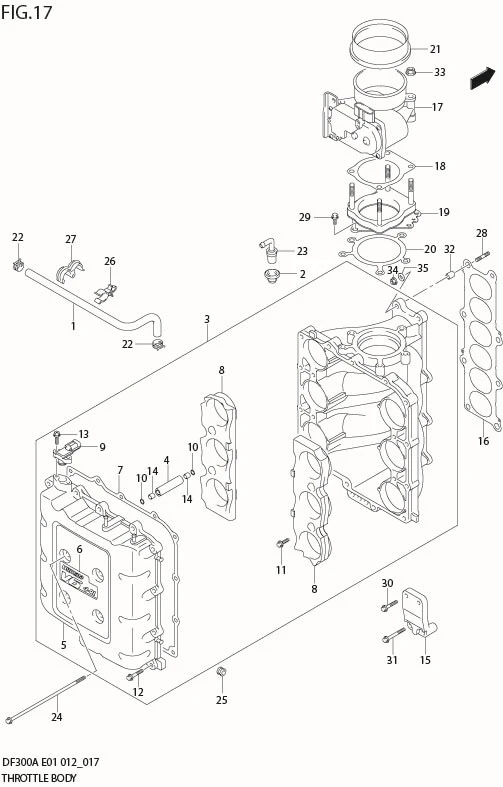

FIG 17 THROTTLE BODY

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 11193-98J00-000	HOSE, PCV	1	-
2	11198M79F00-000 SUB: 11198M58B00-000	SEAL, PCV VALVE	1	Rp16.500
3	DISCONTINUE SUB: 13100-98J01-000	COLLECTOR ASSY	1	-
4	DISCONTINUE SUB: 13137-98J00-000	?SPACER, COLLECTOR	4	-
5	DISCONTINUE SUB: 13140-98J01-000	?COVER, COLLECTOR	1	-
6	61436-98J00-000	??MARK, EMBLEM V6 (4.0L)	1	Rp85.500
7	13147-98J00-000	?GASKET, COLLECTOR COVER	1	Rp550.000
8	DISCONTINUE SUB: 13180-98J00-000	?FUNNEL, COLLECTOR	2	-
9	18590-68H00-000	?SENSOR, MAP	1	Rp1.998.500
10	09280-10009-000	?O RING (D:1.3,ID:9.8)	8	Rp11.500
11	DISCONTINUE SUB: 01550-08167-000	?BOLT	4	-
12	01550-08357-000	?BOLT	11	Rp24.000
13	02162-05207-000	?SCREW	2	Rp12.500
14	04211-11129-000 SUB: 04211B11129N000	?PIN	8	Rp2.000
15	DISCONTINUE SUB: 13134-98J00-000	BRACKET, COLLECTOR	1	-
16	13139-98J01-000 SUB: 13139-98J00-000	GASKET, COLLECTOR	1	Rp325.500
17	13310-98J01-000 SUB: 13310-98J00-000	BODY ASSY, THROTTLE	1	Rp7.303.500
18	13343-98J20-000 SUB: 13343-98J10-000	GASKET, THROTTLE BODY	1	Rp523.000
19	13315-98J00-000	DAMPER, THROTTLE BODY	1	Rp865.000
20	13421-98J00-000	GASKET, THROTTLE BODY	1	Rp58.500
21	DISCONTINUE SUB: 13813-98J00-000	GROMMET, THROTTLE BODY	1	-
22	09401-13423-000	CLIP	2	Rp24.000
23	18118-93J00-000	VALVE, PCV	1	Rp152.500
24	09103-08370-000	BOLT (8X250)	6	Rp81.000
25	DISCONTINUE SUB: 09320-08076-000	GROMMET	4	-
26	09403-13310-000	CLAMP	1	Rp20.000
27	09408-00155-000	CLAMP	1	Rp23.000
28	01421-08357-000	BOLT	2	Rp27.000
29	DISCONTINUE SUB: 01550-08167-000	BOLT	5	-
30	01550-08357-000	BOLT	2	Rp24.000
31	01550-08607-000	BOLT	2	Rp38.000
32	04211-11129-000 SUB: 04211B11129N000	PIN	2	Rp2.000
33	09159-08136-000	NUT	4	Rp16.000
34	08316-10087-000	NUT	2	Rp17.000
35	DISCONTINUE SUB: 09160-08161-000	WASHER (8.2X23X3.2)	2	-
