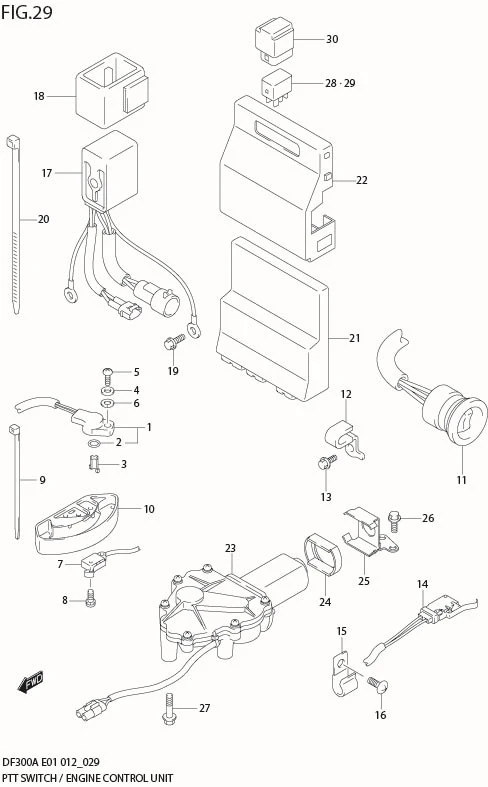

FIG 29 PTT SWITCH / ENGINE CONTROL UNIT

No	No. Part	Description	Qty	Price Per Pcs
1	13580-98J04-000 SUB: 13580-98J02-000	SENSOR ASSY, SHIFT POSITION	1	Rp1.659.500
2	13575-40F00-000	?O RING	1	Rp25.500
3	37729-96L00-000 SUB: 37729-98J00-000	LEVER, SHIFT SENSOR	1	Rp18.500
4	09160-05029-000	WASHER (5.5X12X0.8)	1	Rp14.000
5	07130-05167-000	BOLT	1	Rp16.000
6	08321-0105B-000 SUB: 08321-0105A-000	WASHER	1	Rp13.500
7	37721-93J00-000	SWITCH ASSY, NEUTRAL	1	Rp333.000
8	09137-04004-000	SCREW (4X16)	2	Rp19.500
9	DISCONTINUE SUB: 09407-10404-000	CLAMP (L:100)	2	-
10	37725-93J11-000	COVER, SWITCH ASSY	1	Rp75.000
11	37850-99E05-000 SUB: 37850-99E04-000	SWITCH ASSY, PTT	1	Rp736.000
12	DISCONTINUE SUB: 09403-11315-000	CLAMP	1	-
13	01550-06127-000	BOLT	1	Rp17.000
14	37722-93J14-000 SUB: 37722-93J11-000	SWITCH ASSY, TILT LIMIT	1	Rp371.500
15	09403-09316-000	CLAMP	1	Rp9.000
16	DISCONTINUE SUB: 29125-93J00-000	SCREW, TILT LIMIT CLAMP	1	-
17	38410-93J12-000	RELAY, PTT	1	Rp1.174.500
18	38415-93J00-000	HOLDER, PTT RELAY	1	Rp52.000
19	01550-06127-000	BOLT	1	Rp17.000
20	09407-30401-000	CLAMP (L:300)	1	Rp25.000
21	33920-98JA1-000 SUB: 33920-98JA0-000	UNIT, ENGINE CONTROL	1	Rp23.178.000
22	DISCONTINUE SUB: 33925-98J00-000	CUSHION, ENGINE CONTROL UNIT	1	-
23	38890-98J12-000 SUB: 38890-98J00-000	ACTUATOR, SHIFT	1	Rp6.297.500
24	DISCONTINUE SUB: 38892-98J00-000	DAMPER, SHIFT ACTUATOR	1	-
25	DISCONTINUE SUB: 38895-98J00-000	BRACKET, SHIFT ACTUATOR	1	-
26	01550-06167-000	BOLT	2	Rp16.500
27	01550-06357-000	BOLT	3	Rp18.500
28	38860-76F01-000 SUB: 38860B76F01N000	RELAY, ACTUATOR	2	Rp47.000
29	38860-76F01-000 SUB: 38860B76F01N000	RELAY, OXYGEM SENSOR HEATER	1	Rp47.000
30	38915-90J00-000	HOLDER, RELAY	3	Rp33.000
