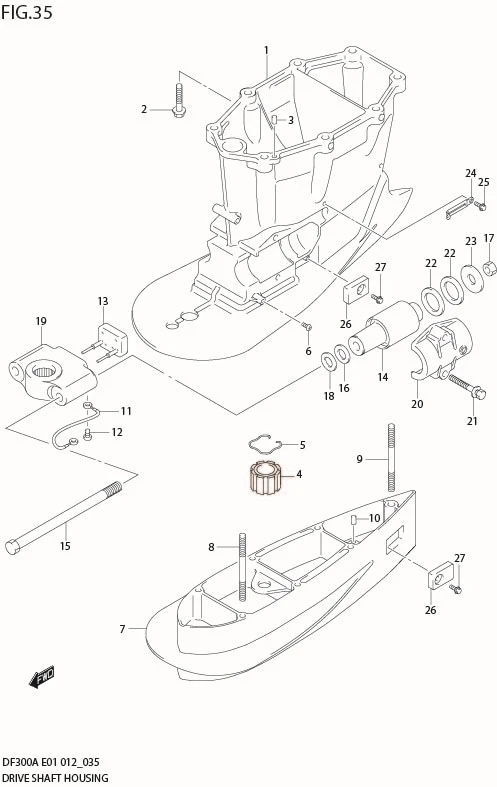

FIG 35 DRIVE SHAFT HOUSING

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	52111-98J00-0EP	HOUSING, DRIVE SHAFT (BLACK)	1	Rp14.545.000
2	09116-10176-000	BOLT (10X44)	8	Rp100.000
3	09202-08006-000	PIN (8X12)	2	Rp27.000
4	57130-87D10-000	BUSH, DRIVE SHAFT	1	Rp381.500
5	09387-38002-000	RING	1	Rp58.000
6	09125-06063-000	SCREW (6X10)	1	Rp15.000
7	52131-93J00-0EP	CASE, EXTENSION (BLACK)	1	Rp9.789.500	W/TRANSOM(XX)
8	09108-10115-000	STUD BOLT	6	Rp198.000	W/TRANSOM(XX)
9	09108-12013-000	STUD BOLT	1	Rp285.000	W/TRANSOM(XX)
10	09202-08006-000	PIN (8X12)	2	Rp27.000	W/TRANSOM(XX)
11	36894-87D00-000	LEAD, MT BRKT TO HSG	1	Rp98.500
12	09125-06063-000	SCREW (6X10)	1	Rp15.000
13	DISCONTINUE SUB: 54150-98J00-000	MOUNT, LOWER THRUST	1	-
14	54160-98J00-000	MOUNT, LOWER	2	Rp939.000
15	54112-93J00-000 SUB: 09100-14004-000	BOLT (14X220)	2	Rp795.500
16	09160-16050-000	WASHER (16X32X3)	2	Rp21.500
17	29159-93J00-000 SUB: 09159-14026-000	NUT	2	Rp140.500
18	09160-16050-000	WASHER (16X32X3)	2	Rp21.500
19	54211-93J00-0EP SUB: 54211-93J00-000	BRACKET, LOWER MOUNT	1	Rp1.725.500
20	54221-93J00-000	COVER, LOWER MOUNT	2	Rp485.500
21	09116-10175-000	BOLT (10X50)	4	Rp77.500
22	54165-98J01-000 SUB: 54165-98J00-000	DAMPER, REVERSE STOPPER LOWER	4	Rp59.000
23	09160-14066-000	WASHER (14X50X4)	2	Rp80.500
24	DISCONTINUE SUB: 29404-93J10-000	CLAMP, SPEEDOMETER HOSE	1	-
25	DISCONTINUE SUB: 29103-93J00-000	BOLT, CLAMP (6X12)	1	-
26-1	55320-95311-000 SUB: 55321-93J00-000	ANODE, PROTECTION	1	Rp119.500	W/TRANSOM(X)
26-2	55320-95311-000 SUB: 55321-93J00-000	ANODE, PROTECTION	2	Rp119.500	W/TRANSOM(XX)
27-1	09116-06094-000	BOLT (6X15)	1	Rp19.000	W/TRANSOM(X)
27-2	09116-06094-000	BOLT (6X15)	2	Rp19.000	W/TRANSOM(XX)
