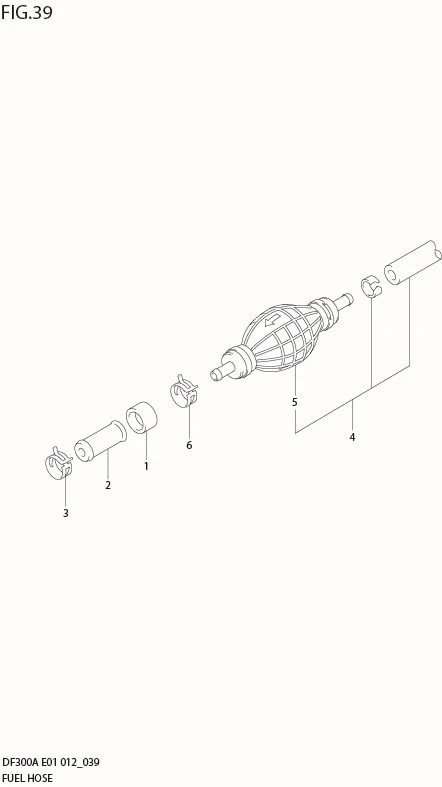

FIG 39 FUEL HOSE (DF300A E1)

FIG 39 FUEL HOSE (DF300A E1)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	09251-09002-000	CAP	1	Rp22.000
2	DISCONTINUE SUB: 09367-10001-000	JOINT	1	-
3	09401-13423-000	CLIP	1	Rp24.000
4	65700-93J06-000 SUB: 65700-93J01-000	HOSE, FUEL (TANK TO ENGINE)	1	Rp1.023.000
5	65770-93J13-000 SUB: 65770-93J10-000	?PUMP, SQUEEZE	1	Rp342.500
6	09401-13423-000	CLIP	1	Rp24.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
