DF300A E01 012

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER BLOCK FIG 3 RING GEAR COVER (DF300A E1)FIG 4 RING GEAR COVER (DF300A E40)FIG 5 CRANKSHAFT FIG 6 TIMING CHAIN FIG 7 CAMSHAFT FIG 8 INTAKE MANIFOLD FIG 9 EXHAUST COVER FIG 10 FUEL PUMP / FUEL VAPOR SEPARATOR (DF300A E1)FIG 11 FUEL PUMP / FUEL VAPOR SEPARATOR (DF300A E40)FIG 12 FUEL INJECTOR (DF300A E1)FIG 13 FUEL INJECTOR (DF300A E40)FIG 14 WATER PUMP (DF300A E1)FIG 15 WATER PUMP (DF300A E40)FIG 16 THERMOSTAT FIG 17 THROTTLE BODY FIG 18 OIL PUMP FIG 19 OIL PAN FIG 20 CLUTCH SHAFT FIG 21 CLUTCH ROD FIG 22 TRANSMISSION FIG 23 STARTING MOTOR FIG 24 MAGNETO FIG 25 RECTIFIER / IGNITION COIL FIG 26 SENSOR FIG 27 HARNESS (DF300A E1)FIG 28 HARNESS (DF300A E40)FIG 29 PTT SWITCH / ENGINE CONTROL UNIT FIG 30 CLAMP BRACKET FIG 31 SWIVEL BRACKET FIG 32 TRIM CYLINDER FIG 33 PTT MOTOR FIG 34 ENGINE HOLDER FIG 35 DRIVE SHAFT HOUSING FIG 36 GEAR CASE FIG 37 SIDE COVER FIG 38 ENGINE COVER FIG 39 FUEL HOSE (DF300A E1)FIG 40 FUEL HOSE (DF300A E40)FIG 41 OPT:METER FIG 42 OPT:HARNESS FIG 43 OPT:SWITCH FIG 44 OPT:TOP MOUNT SINGLE FIG 45 OPT:TOP MOUNT DUAL FIG 46 OPT: FLUSH MOUNT REMOCON FIG 47 OPT:GASKET SET (DF300A E1)FIG 48 OPT:GASKET SET (DF300A E40)FIG 49 OPT:LOWRANCE GAUGE

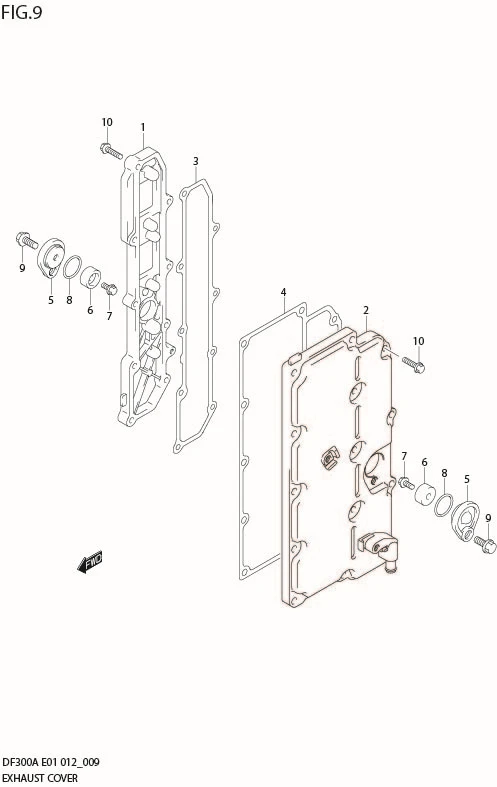

FIG 9 EXHAUST COVER

FIG 9 EXHAUST COVER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 14141-93J01-000	COVER, EXHAUST STBD	1	-
2	14140-98J01-000	COVER, EXHAUST PORT	1	Rp980.500
3	14151-93J00-000	GASKET, EXHAUST COVER STBD	1	Rp80.000
4	14152-93J01-000 SUB: 14152-93J00-000	GASKET, EXHAUST COVER PORT	1	Rp197.500
5	11261-93J00-000	COVER, PROTECTION ANODE	2	Rp132.500
6	55321-87J01-000 SUB: 55321-87J00-000	ANODE, PROTECTION	2	Rp79.500
7	09103-06281-000	BOLT (6X14)	2	Rp20.500
8	09280-22019-000	O RING (D:1.9,ID:21.8)	2	Rp15.500
9	01550-08207-000	BOLT	2	Rp19.000
10	01550-06257-000 SUB: 01550B06257N000	BOLT	23	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
