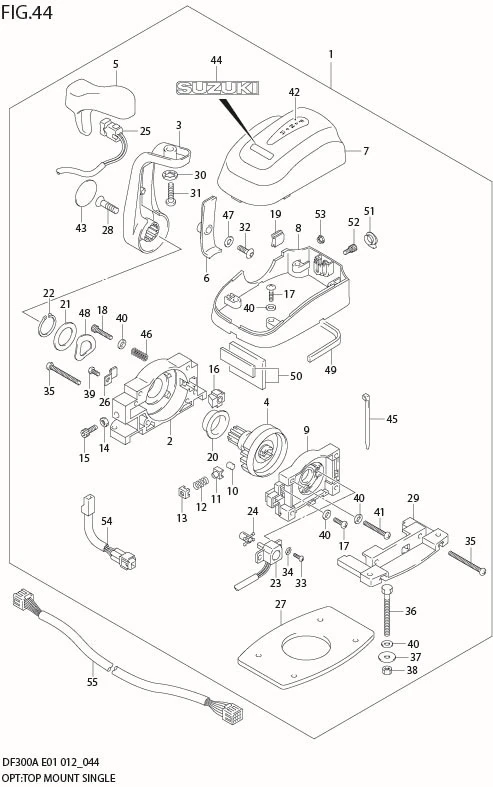

FIG 44 OPT:TOP MOUNT SINGLE

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	67200-98J06-000 SUB: 67200-98J03-000	REMOTE CONTROL ASSY	1	Rp8.556.000
2	67211-98J20-000	?HOUSING	1	Rp907.000
3	DISCONTINUE SUB: 67251-98J00-000	?LEVER, HANDLE	1	-
4	67246-98J10-000	?SHAFT, DRIVE	1	Rp933.500
5	DISCONTINUE SUB: 67261-98J00-000	?GRIP, NO.1	1	-
6	DISCONTINUE SUB: 67263-98J00-000	?COVER, LEVER	1	-
7	67212-98J20-000	?COVER, UPPER	1	Rp1.434.500
8	67271-98J30-000	?COVER, BOTTOM	1	Rp363.500
9	67222-98J10-000	?PANEL ASSY, BACK	1	Rp448.000
10	DISCONTINUE SUB: 67236-98J00-000	?ROOLER, DETENT	1	-
11	67235-98J10-000	?GUIDE, DETENT ROOLER	1	Rp158.000
12	67237-98J30-000	?SPRING, DETENT	1	Rp64.000
13	67233-98J10-000	?HOLDER, DETENT SPRING	1	Rp143.000
14	DISCONTINUE SUB: 67287-92E00-000	?NUT (M5)	1	-
15	67239-98J00-000	?SCREW, DETENT ADJUST (5X14)	1	Rp70.000
16	DISCONTINUE SUB: 67223-98J00-000	?PAD, BRAKE	1	-
17	DISCONTINUE SUB: 67296-98J50-000	?SCREW (5X18)	6	-
18	67296-98JA0-000	?SCREW, BRAKE ADJUST (5X30)	1	Rp41.500
19	67272-98J10-000	?GROMMET, COVER	1	Rp58.000
20	67252-98J10-000	?BUSH, DRIVE SHAFT	1	Rp167.500
21	DISCONTINUE SUB: 67288-98J20-000	?WASHER	1	-
22	DISCONTINUE SUB: 67292-98J00-000	?C-RING	1	-
23	15980-98J00-000	?POTENTIOMETER	1	Rp2.772.000
24	DISCONTINUE SUB: 67227-98J10-000	?LEVER, POTENTIOMETER NO.2	1	-
25	37850-98J02-000	?SWITCH ASSY, PTT	1	Rp487.000
26	DISCONTINUE SUB: 67269-98J00-000	?CLAMP, LEAD	1	-
27	DISCONTINUE SUB: 67273-98J00-000	?PACKING	1	-
28	DISCONTINUE SUB: 67296-98J60-000	?SCREW (8X30)	1	-
29	DISCONTINUE SUB: 67274-98J00-000	?FLANGE, BASE	1	-
30	DISCONTINUE SUB: 67288-92E20-000	?WASHER	1	-
31	DISCONTINUE SUB: 67296-98J90-000	?SCREW	1	-
32	67296-98J80-000	?SCREW (5X14)	1	Rp29.500
33	67296-94300-000	?SCREW (4X10)	2	Rp10.500
34	DISCONTINUE SUB: 67288-98J00-000	?WASHER	2	-
35	DISCONTINUE SUB: 67296-98J20-000	?SCREW (5X50)	2	-
36	DISCONTINUE SUB: 67226-98J00-000	?BOLT (5X50)	4	-
37	09160-05024-000	?WASHER (5.5X16X1.5)	4	Rp9.500
38	DISCONTINUE SUB: 67287-92E00-000	?NUT	4	-
39	DISCONTINUE SUB: 67296-98J00-000	?SCREW (5X12)	1	-
40	DISCONTINUE SUB: 67288-98J40-000	?WASHER	12	-
41	DISCONTINUE SUB: 67296-98J10-000	?SCREW (5X35)	1	-
42	DISCONTINUE SUB: 67284-98J00-000	?MARK (F-N-R)	1	-
43	DISCONTINUE SUB: 68165-98J00-000	?MARK, LEVER (SUZUKI)	1	-
44	DISCONTINUE SUB: 68165-98J10-000	?EMBLEM (SUZUKI)	1	-
45	67269-98J30-000	?BAND	1	Rp39.000
46	DISCONTINUE SUB: 67288-98J10-000	?WASHER, SPRING	8	-
47	DISCONTINUE SUB: 67288-98J30-000	?WASHER	1	-
48	DISCONTINUE SUB: 67228-98J50-000	?WASHER, WAVE	1	-
49	DISCONTINUE SUB: 67273-98J10-000	?PACKING (FRONT)	1	-
50	67273-98J30-000	?PACKING (REAR)	1	Rp98.000
51	67277-98J00-000	?GROMMET	1	Rp94.000
52	67296-98JF0-000	?BOLT (5X14)	1	Rp45.500
53	67297-98J00-000	?NUT	1	Rp23.500
54	36890-98J00-000	?CONDENSER, ADAPTER HARNESS	1	Rp843.000
55-1	36620-98J33-000 SUB: 36620-98J30-000	WIRE ASSY, REMOTE CONTROL	1	Rp3.542.000	L:6500
55-2	36620-98J43-000 SUB: 36620-98J40-000	WIRE ASSY, REMOTE CONTROL	1	Rp4.127.000	L:9500
