DF300A E01 012

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEADFIG 2 CYLINDER BLOCKFIG 3 RING GEAR COVER (DF300A E1)FIG 4 RING GEAR COVER (DF300A E40)FIG 5 CRANKSHAFTFIG 6 TIMING CHAINFIG 7 CAMSHAFTFIG 8 INTAKE MANIFOLDFIG 9 EXHAUST COVERFIG 10 FUEL PUMP / FUEL VAPOR SEPARATOR (DF300A E1)FIG 11 FUEL PUMP / FUEL VAPOR SEPARATOR (DF300A E40)FIG 12 FUEL INJECTOR (DF300A E1)FIG 13 FUEL INJECTOR (DF300A E40)FIG 14 WATER PUMP (DF300A E1)FIG 15 WATER PUMP (DF300A E40)FIG 16 THERMOSTATFIG 17 THROTTLE BODYFIG 18 OIL PUMPFIG 19 OIL PANFIG 20 CLUTCH SHAFTFIG 21 CLUTCH RODFIG 22 TRANSMISSIONFIG 23 STARTING MOTORFIG 24 MAGNETOFIG 25 RECTIFIER / IGNITION COILFIG 26 SENSORFIG 27 HARNESS (DF300A E1)FIG 28 HARNESS (DF300A E40)FIG 29 PTT SWITCH / ENGINE CONTROL UNITFIG 30 CLAMP BRACKETFIG 31 SWIVEL BRACKETFIG 32 TRIM CYLINDERFIG 33 PTT MOTORFIG 34 ENGINE HOLDERFIG 35 DRIVE SHAFT HOUSINGFIG 36 GEAR CASEFIG 37 SIDE COVERFIG 38 ENGINE COVERFIG 39 FUEL HOSE (DF300A E1)FIG 40 FUEL HOSE (DF300A E40)FIG 41 OPT:METERFIG 42 OPT:HARNESSFIG 43 OPT:SWITCHFIG 44 OPT:TOP MOUNT SINGLEFIG 45 OPT:TOP MOUNT DUALFIG 46 OPT: FLUSH MOUNT REMOCONFIG 47 OPT:GASKET SET (DF300A E1)FIG 48 OPT:GASKET SET (DF300A E40)FIG 49 OPT:LOWRANCE GAUGE

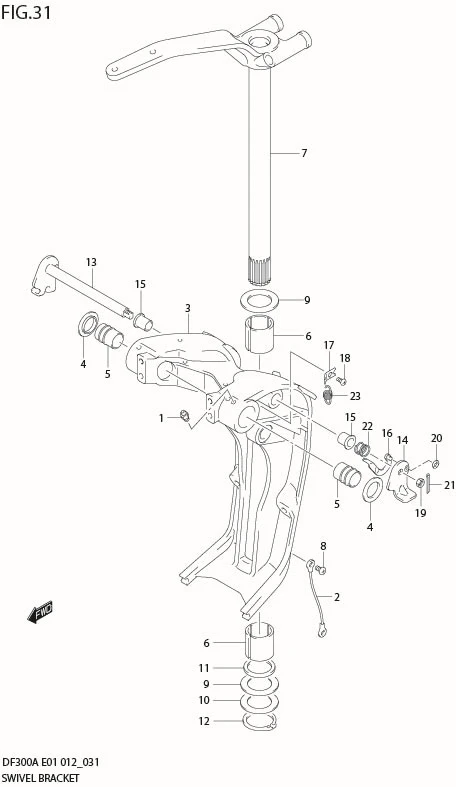

FIG 31 SWIVEL BRACKET

FIG 31 SWIVEL BRACKET
No No. Part Description Qty Price Per Pcs Remarks
1 22511-99011-000 NIPPLE, GREASE SWIVEL BRKT 4 Rp39.500
2 36894-87D00-000 LEAD (SWIVEL TO MOUNT BRKT) 1 Rp98.500
3 43111-93J24-0EP
SUB: 43111-93J23-0EP		 BRACKET, SWIVEL (BLACK) 1 Rp12.582.000
4 43114-93J00-000 WASHER, SWIVEL TO CLAMP BRKT 2 Rp45.500
5 43211-93J11-000
SUB: 43211-93J00-000		 BUSH, CLAMP SHAFT SWIVEL 2 Rp75.000
6 43711-97E11-000
SUB: 43711-97E00-000		 BUSH, STEERING 2 Rp106.500
7 43750-93J03-0EP
SUB: 43750-93J02-0EP		 BRACKET, STEERING (BLACK) 1 Rp12.246.500
8 09125-06063-000 SCREW (6X10) 1 Rp15.000
9 09160-39001-000 WASHER (39.5X64X1) 2 Rp23.000
10 09181-39001-000 SHIM (39.5X64X0.3) 0 Rp31.500
11 09282-39001-000 OIL SEAL (39X51X5) 1 Rp53.000
12 09380-38003-000 CIRCLIP 1 Rp50.500
13 41220-93J12-000
SUB: 41220-93J11-000		 LEVER, TILT LOCK 1 Rp734.000
14 41234-93J12-000
SUB: 41234-93J11-000		 LEVER, TILT LOCK PORT 1 Rp335.000
15 41224-95E01-000 BUSH, TILT STOPPER ROD 2 Rp41.500
16 41230-96J00-000 LINK, TILT LOCK LEVER 1 Rp217.000
17 41233-95E10-000 BRACKET, TILT LOCK SPRING 1 Rp81.000
18 09125-06063-000 SCREW (6X10) 1 Rp15.000
19 09140-10032-000 NUT 1 Rp15.000
20 09160-06082-000 WASHER (6.5X13X1.0) 1 Rp10.500
21 09204-01006-000 PIN 1 Rp14.000
22 09440-19028-000 SPRING 1 Rp24.500
23 09443-10043-000 SPRING 1 Rp29.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
