DF300A E01 012

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEADFIG 2 CYLINDER BLOCKFIG 3 RING GEAR COVER (DF300A E1)FIG 4 RING GEAR COVER (DF300A E40)FIG 5 CRANKSHAFTFIG 6 TIMING CHAINFIG 7 CAMSHAFTFIG 8 INTAKE MANIFOLDFIG 9 EXHAUST COVERFIG 10 FUEL PUMP / FUEL VAPOR SEPARATOR (DF300A E1)FIG 11 FUEL PUMP / FUEL VAPOR SEPARATOR (DF300A E40)FIG 12 FUEL INJECTOR (DF300A E1)FIG 13 FUEL INJECTOR (DF300A E40)FIG 14 WATER PUMP (DF300A E1)FIG 15 WATER PUMP (DF300A E40)FIG 16 THERMOSTATFIG 17 THROTTLE BODYFIG 18 OIL PUMPFIG 19 OIL PANFIG 20 CLUTCH SHAFTFIG 21 CLUTCH RODFIG 22 TRANSMISSIONFIG 23 STARTING MOTORFIG 24 MAGNETOFIG 25 RECTIFIER / IGNITION COILFIG 26 SENSORFIG 27 HARNESS (DF300A E1)FIG 28 HARNESS (DF300A E40)FIG 29 PTT SWITCH / ENGINE CONTROL UNITFIG 30 CLAMP BRACKETFIG 31 SWIVEL BRACKETFIG 32 TRIM CYLINDERFIG 33 PTT MOTORFIG 34 ENGINE HOLDERFIG 35 DRIVE SHAFT HOUSINGFIG 36 GEAR CASEFIG 37 SIDE COVERFIG 38 ENGINE COVERFIG 39 FUEL HOSE (DF300A E1)FIG 40 FUEL HOSE (DF300A E40)FIG 41 OPT:METERFIG 42 OPT:HARNESSFIG 43 OPT:SWITCHFIG 44 OPT:TOP MOUNT SINGLEFIG 45 OPT:TOP MOUNT DUALFIG 46 OPT: FLUSH MOUNT REMOCONFIG 47 OPT:GASKET SET (DF300A E1)FIG 48 OPT:GASKET SET (DF300A E40)FIG 49 OPT:LOWRANCE GAUGE

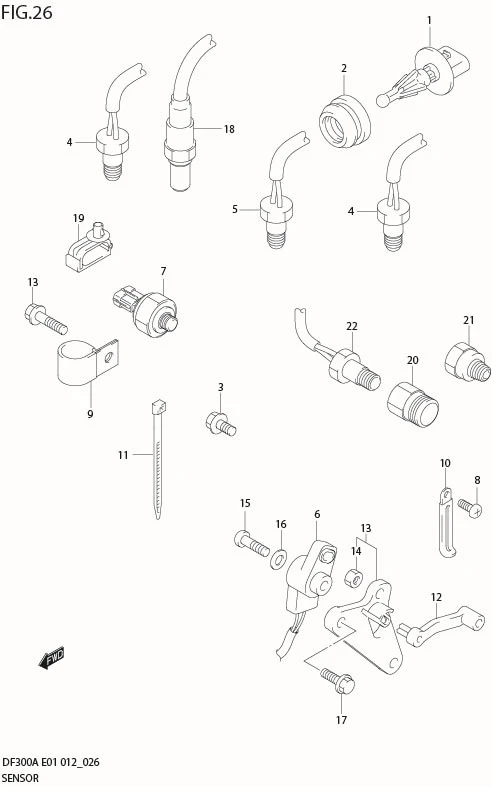

FIG 26 SENSOR

FIG 26 SENSOR
No No. Part Description Qty Price Per Pcs Remarks
1 13650-52G00-000 SENSOR, INLET AIR TEMP 1 Rp762.500
2 13655-87J01-000
SUB: 13655-87J00-000		 GROMMET, AIR TEMP SENSOR 1 Rp31.000
3 DISCONTINUE
SUB: 29103-93J00-000		 BOLT, PTT MOTOR LEAD CLAMP 1 -
4 34830-87J20-000 SENSOR ASSY, EXHAUST TEMP 2 Rp526.000
5 34830-87J20-000 SENSOR ASSY, CYLINDER TEMP 1 Rp526.000
6 34840-98J03-000
SUB: 34840-98J02-000		 SENSOR ASSY, TRIM 1 Rp2.590.500
7 37820-99E02-000
SUB: 37820-99E01-000		 SWITCH ASSY, OIL PRESSURE 1 Rp230.000
8 09125-06063-000 SCREW (6X10) 1 Rp15.000
9 DISCONTINUE
SUB: 09403-19409-000		 CLAMP 1 -
10 DISCONTINUE
SUB: 29404-93J10-000		 CLAMP, PTT MOTOR LEAD 1 -
11 09407-14407-000 CLAMP (L:145) 2 Rp18.500
12 34841-88L01-000
SUB: 34841-88L00-000		 LEVER, TRIM SENSOR 1 Rp61.000
13 34845-88L02-000
SUB: 34845-88L00-000		 BRACKET, TRIM SENSOR 1 Rp125.000
14 09140-05005-000 ?NUT 1 Rp20.000
15 09125-05048-000 SCREW (5X16) 1 Rp14.000
16 09160-05029-000 WASHER (5.5X12X0.8) 1 Rp14.000
17 09103-06093-000 BOLT (6X20) 2 Rp13.000
18 18213-98J30-000
SUB: 18213-98J00-000		 SENSOR, OXYGEN 1 Rp3.345.000
19 09403-07340-000 CLAMP 1 Rp20.500
20 11218-98J02-000
SUB: 11218-98J00-000		 HOLDER, TEMP SENSOR 1 Rp260.500
21 11219-98J00-000 HOLDER, OIL SENSOR 1 Rp213.500
22 34830-98J00-000 SENSOR ASSY, OIL TEMP 1 Rp728.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
