  5. FIG 10 FUEL PUMP / FUEL VAPOR SEPARATOR (DF300A E1)

DF300A E01 012

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEADFIG 2 CYLINDER BLOCKFIG 3 RING GEAR COVER (DF300A E1)FIG 4 RING GEAR COVER (DF300A E40)FIG 5 CRANKSHAFTFIG 6 TIMING CHAINFIG 7 CAMSHAFTFIG 8 INTAKE MANIFOLDFIG 9 EXHAUST COVERFIG 10 FUEL PUMP / FUEL VAPOR SEPARATOR (DF300A E1)FIG 11 FUEL PUMP / FUEL VAPOR SEPARATOR (DF300A E40)FIG 12 FUEL INJECTOR (DF300A E1)FIG 13 FUEL INJECTOR (DF300A E40)FIG 14 WATER PUMP (DF300A E1)FIG 15 WATER PUMP (DF300A E40)FIG 16 THERMOSTATFIG 17 THROTTLE BODYFIG 18 OIL PUMPFIG 19 OIL PANFIG 20 CLUTCH SHAFTFIG 21 CLUTCH RODFIG 22 TRANSMISSIONFIG 23 STARTING MOTORFIG 24 MAGNETOFIG 25 RECTIFIER / IGNITION COILFIG 26 SENSORFIG 27 HARNESS (DF300A E1)FIG 28 HARNESS (DF300A E40)FIG 29 PTT SWITCH / ENGINE CONTROL UNITFIG 30 CLAMP BRACKETFIG 31 SWIVEL BRACKETFIG 32 TRIM CYLINDERFIG 33 PTT MOTORFIG 34 ENGINE HOLDERFIG 35 DRIVE SHAFT HOUSINGFIG 36 GEAR CASEFIG 37 SIDE COVERFIG 38 ENGINE COVERFIG 39 FUEL HOSE (DF300A E1)FIG 40 FUEL HOSE (DF300A E40)FIG 41 OPT:METERFIG 42 OPT:HARNESSFIG 43 OPT:SWITCHFIG 44 OPT:TOP MOUNT SINGLEFIG 45 OPT:TOP MOUNT DUALFIG 46 OPT: FLUSH MOUNT REMOCONFIG 47 OPT:GASKET SET (DF300A E1)FIG 48 OPT:GASKET SET (DF300A E40)FIG 49 OPT:LOWRANCE GAUGE

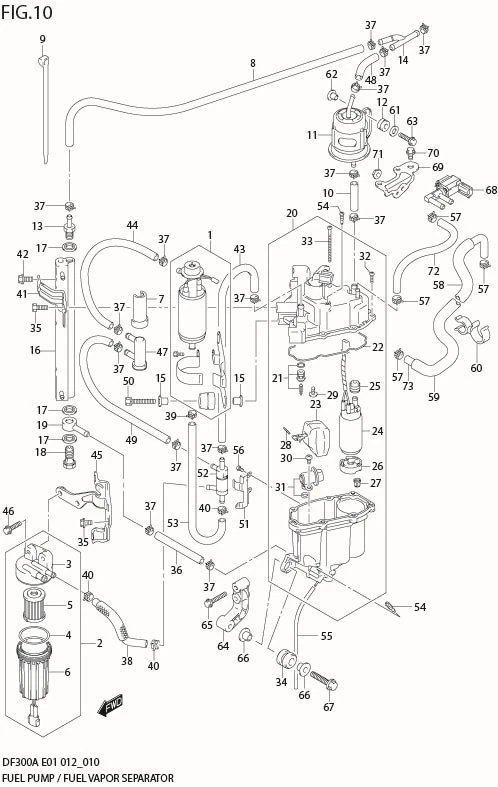

FIG 10 FUEL PUMP / FUEL VAPOR SEPARATOR (DF300A E1)

FIG 10 FUEL PUMP / FUEL VAPOR SEPARATOR (DF300A E1)
No No. Part Description Qty Price Per Pcs Remarks
1 15100-94900-000 PUMP ASSY, FUEL (L) 1 Rp5.974.000
2 15410-93J11-000
SUB: 15410-93J10-000		 FILTER, FUEL (L) 1 Rp1.325.500
3 15411-93J10-000 ?CAP, FILTER 1 Rp439.500
4 15415-93J10-000 ?SEAL, NO.1 1 Rp103.500
5 15412-93J10-000 ?FILTER ASSY, FUEL 1 Rp175.500
6 15413-93J10-000 ?CASE ASSY, FILTER 1 Rp787.000
7 15644-93J00-000 COVER, FUEL FILTER 3 Rp66.000
8 15633-93J20-000 HOSE, FUEL (H) 1 Rp667.500
9 15646-93J00-000 CLAMP, FUEL FILTER 1 Rp38.500
10 09343-75002-600
SUB: 09343-75001-600		 HOSE, FUEL 1 Rp341.500 L:600->65
11 15440-93J00-000 FILTER, FUEL (EPI) 1 Rp673.000
12 09320-08501-000 CUSHION 2 Rp21.500
13 15773-90J10-000
SUB: 15773-90J00-000		 UNION, FUEL HOSE (H) 1 Rp190.000
14 DISCONTINUE
SUB: 15830-93J00-000		 UNION, 3 WAY 1 -
15 09169-06062-000 WASHER 4 Rp16.500
16 15770-93J00-000 COOLER, FUEL 1 Rp752.000
17 09168-12013-000 GASKET (11.8X22X1.2) 3 Rp22.500
18 09360-12008-000 UNION 1 Rp70.500
19 09363-08004-000 UNION 1 Rp135.500
20 15600-98J01-000
SUB: 15600-98J00-000		 SEPARATOR ASSY, FUEL VAPOR 1 Rp8.389.500
21 13370-93J00-000 ?VALVE ASSY, NEEDLE 1 Rp417.500
22 15626-93J00-000 ?GASKET, SEPARATOR 1 Rp115.000
23 DISCONTINUE
SUB: 15650-93J00-000		 ?FLOAT ASSY 1 -
24 15200-98J00-000 ?PUMP ASSY, FUEL (H) 1 Rp3.438.000
25 15647-93J00-000 ?BUSH, FUEL PUMP 1 Rp96.000
26 15641-90J00-000 ?SPACER, FUEL PUMP 1 Rp207.500
27 15642-90J00-000 ?FILTER, FUEL PUMP 1 Rp83.000
28 15654-99E00-000 ?PIN, FLOAT 1 Rp20.500
29 DISCONTINUE
SUB: 02142-0408B-000		 ?SCREW 1 -
30 02112-05107-000 ?SCREW 1 Rp11.500
31 15760-93J01-000
SUB: 15760-93J00-000		 ?REGULATOR, FUEL PRESSURE 1 Rp1.270.500
32 15628-99E00-000 ?SCREW 6 Rp20.500
33 DISCONTINUE
SUB: 15627-93J00-000		 ?SCREW 1 -
34 DISCONTINUE
SUB: 09320-12072-000		 CUSHION 3 -
35 DISCONTINUE
SUB: 15675-93J00-000		 BOLT, COOLER BRACKET 3 -
36 09343-75002-600
SUB: 09343-75001-600		 HOSE (7.5X13.5X600) 1 Rp341.500 L:600->50
37 09401-11414-000 CLIP (ID:11.5) 14 Rp25.000
38 15636-98J21-000
SUB: 15636-98J20-000		 HOSE, FUEL (L) 1 Rp540.000
39 15686-93J00-000 CLIP 1 Rp39.000
40 15685-93J00-000 CLIP 3 Rp50.500
41 DISCONTINUE
SUB: 15672-93J00-000		 BRACKET, FUEL COOLER 1 -
42 01500-0616A-000
SUB: 01500-06167-000		 BOLT 4 Rp6.500
43 15635-93J20-000 HOSE, FUEL (H) 1 Rp814.000
44 15632-93J20-000 HOSE, FUEL (H) 1 Rp840.000
45 DISCONTINUE
SUB: 15673-98J00-000		 BRACKET, FUEL FILTER 1 -
46 01550-06257-000
SUB: 01550B06257N000		 BOLT 2 Rp3.500
47 15643-93J00-000 FILTER, FUEL (L) 1 Rp283.000
48 09343-75002-600
SUB: 09343-75001-600		 HOSE (7.5X13.5X600) 1 Rp341.500 L:600->65
49 15634-93J20-000 HOSE, FUEL (H) 1 Rp819.500
50 01570-06357-000 BOLT 2 Rp19.000
51 15674-93J00-000 BRACKET, CHECK VALVE 1 Rp116.000
52 15645-93J00-000 VALVE, CHECK 1 Rp701.500
53 15637-93J20-000 HOSE, FUEL (L) 1 Rp553.000
54 15629-99E10-000 SCREW, DRAIN 2 Rp45.500
55 DISCONTINUE
SUB: 15683-87J00-000		 HOSE, DRAIN 1 -
56 DISCONTINUE
SUB: 02112-0406B-000		 SCREW 3 -
57 09401-08412-000 CLIP 4 Rp20.000
58 DISCONTINUE
SUB: 18498-87JC0-000		 PROTECTOR, EVAP HOSE (L:450) 1 -
59 DISCONTINUE
SUB: 18498-87JC0-000		 PROTECTOR, EVAP HOSE (L:450) 1 - L:450->300
60 09408-00105-000 CLAMP 1 Rp30.500
61 09160-06006-000
SUB: 09160-06084-000		 WASHER (6.5X18X1.6) 2 Rp11.000
62 09169-06062-000 WASHER 2 Rp16.500
63 DISCONTINUE
SUB: 01500-06257-000		 BOLT 2 -
64 15671-93J00-000 BRACKET, VAPOR SEPARATOR 1 Rp230.000
65 01550-06357-000 BOLT 2 Rp18.500
66 09169-08042-000 WASHER 6 Rp38.000
67 01550-08407-000 BOLT 3 Rp24.000
68 18117M73M00-000
SUB: 18117M52G10-000		 VALVE ASSY, EVAP PURGE 1 Rp486.500
69 DISCONTINUE
SUB: 18417-93J00-000		 BRACKET, PURGE VALVE 1 -
70 01550-06127-000 BOLT 2 Rp17.000
71 08316-10067-000 NUT 1 Rp15.500
72 09352-50823-600
SUB: 09352-50823L600		 HOSE (5X8.2X600) 1 Rp7.000 L:600->220
73 09352-50005-00B
SUB: 09352-50823-00B		 HOSE (5X8.2X2000) 1 Rp122.000 L:2000->810
