DF300A E01 012

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEADFIG 2 CYLINDER BLOCKFIG 3 RING GEAR COVER (DF300A E1)FIG 4 RING GEAR COVER (DF300A E40)FIG 5 CRANKSHAFTFIG 6 TIMING CHAINFIG 7 CAMSHAFTFIG 8 INTAKE MANIFOLDFIG 9 EXHAUST COVERFIG 10 FUEL PUMP / FUEL VAPOR SEPARATOR (DF300A E1)FIG 11 FUEL PUMP / FUEL VAPOR SEPARATOR (DF300A E40)FIG 12 FUEL INJECTOR (DF300A E1)FIG 13 FUEL INJECTOR (DF300A E40)FIG 14 WATER PUMP (DF300A E1)FIG 15 WATER PUMP (DF300A E40)FIG 16 THERMOSTATFIG 17 THROTTLE BODYFIG 18 OIL PUMPFIG 19 OIL PANFIG 20 CLUTCH SHAFTFIG 21 CLUTCH RODFIG 22 TRANSMISSIONFIG 23 STARTING MOTORFIG 24 MAGNETOFIG 25 RECTIFIER / IGNITION COILFIG 26 SENSORFIG 27 HARNESS (DF300A E1)FIG 28 HARNESS (DF300A E40)FIG 29 PTT SWITCH / ENGINE CONTROL UNITFIG 30 CLAMP BRACKETFIG 31 SWIVEL BRACKETFIG 32 TRIM CYLINDERFIG 33 PTT MOTORFIG 34 ENGINE HOLDERFIG 35 DRIVE SHAFT HOUSINGFIG 36 GEAR CASEFIG 37 SIDE COVERFIG 38 ENGINE COVERFIG 39 FUEL HOSE (DF300A E1)FIG 40 FUEL HOSE (DF300A E40)FIG 41 OPT:METERFIG 42 OPT:HARNESSFIG 43 OPT:SWITCHFIG 44 OPT:TOP MOUNT SINGLEFIG 45 OPT:TOP MOUNT DUALFIG 46 OPT: FLUSH MOUNT REMOCONFIG 47 OPT:GASKET SET (DF300A E1)FIG 48 OPT:GASKET SET (DF300A E40)FIG 49 OPT:LOWRANCE GAUGE

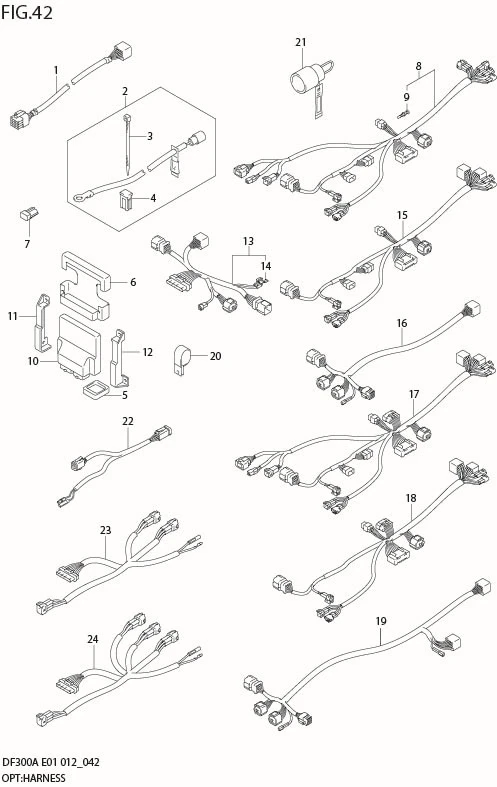

FIG 42 OPT:HARNESS

FIG 42 OPT:HARNESS
No No. Part Description Qty Price Per Pcs Remarks
1 36620-98J53-000
SUB: 36620-98J50-000		 WIRE ASSY, REMOCON EXTENSION 1 Rp1.778.000
2 33830-98J11-000
SUB: 33830-98J10-000		 SET, BATTERY ISOLATOR LEAD 1 Rp1.559.500
3 DISCONTINUE
SUB: 09407-10404-000		 ?CLAMP (L:100) 2 -
4 09481-40401-000 ?FUSE (40A) 1 Rp49.500
5 33911-88BL0-000 CAP, BCM CONNECTOR 1 Rp71.000
6 33925-93J00-000 CUSHION, BCM 1 Rp93.500
7 33926-98J00-000 RESISTOR, TERMINAL 2 Rp153.000
8 36623-98J21-000
SUB: 36623-98J20-000		 HARNESS ASSY, BCM NO.1 FOR 1 Rp3.509.000
9 36615-96300-000 ?TERMINAL RESIN 2 Rp11.000
10 36770-98J13-000
SUB: 36770-98J10-000		 CONTROLLER ASSY, BOAT ELECTRIC 1 Rp6.826.000
11 36775-98J00-000 HOLDER, BCM (L) 1 Rp20.500
12 36776-98J00-000 HOLDER, BCM (R) 1 Rp20.500
13 36622-98J00-000 HARNESS ASSY, DUAL STATION 1 Rp1.310.500
14 09481-10501-000
SUB: 09481M10501-000		 ?FUSE (10A) 1 Rp12.000
15 36624-98J02-000 HARNESS ASSY, BCM NO.2 FOR 1 Rp2.296.500
16 36621-98J00-000 HARNESS ASSY, DUAL ENGINE 1 Rp1.395.500
17 36623-98J30-000 HARNESS ASSY, BCM NO.1 FOR 1 Rp6.450.500
18 36624-98J11-000 HARNESS ASSY, BCM NO.2 FOR 1 Rp2.936.500
19 36621-98J10-000 HARNESS ASSY, TRIPLE ENGINE 1 Rp1.968.500
20 09403-13402-000 CLAMP 18 Rp18.500
21 36612-98J01-000
SUB: 36612-98J00-000		 CONNECTOR, COUNTER SELECT 1 Rp116.000
22 36661-98J10-000 ADAPTER, INTERFACE SINGLE 1 Rp510.000
23 36661-98J20-000 ADAPTER, INTERFACE DUAL 1 Rp662.500
24 36661-98J30-000 ADAPTER, INTERFACE TRIPLE 1 Rp659.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
