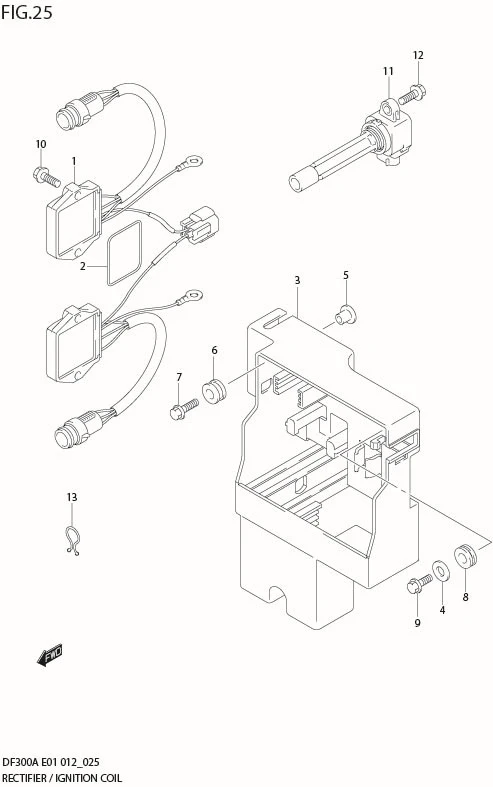

FIG 25 RECTIFIER / IGNITION COIL

FIG 25 RECTIFIER / IGNITION COIL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	32800-98J01-000	RECTIFIER & REGULATOR	1	Rp4.034.500
2	32805-93J00-000	O RING, RECTIFIER & REGULATOR	2	Rp31.000
3	32890-98J01-000	HOLDER, ELECTRIC PARTS	1	Rp225.000
4	09160-06134-000	WASHER (6.5X24X1.6)	1	Rp14.000
5	09169-06062-000	WASHER	3	Rp16.500
6	09320-09016-000 SUB: 09320-09016L000	CUSHION	3	Rp4.000
7	DISCONTINUE SUB: 09116-06202-000	BOLT (6X25)	3	-
8	DISCONTINUE SUB: 09320-12076-000	CUSHION	1	-
9	01550-06127-000	BOLT	1	Rp17.000
10	01550-06257-000 SUB: 01550B06257N000	BOLT	4	Rp3.500
11	33410-93J00-000	COIL ASSY, IGNITION	6	Rp1.038.500
12	01550-06207-000 SUB: 01550B06207N000	BOLT	6	Rp3.000
13	DISCONTINUE SUB: 09408-00184-000	CLAMP	1	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
