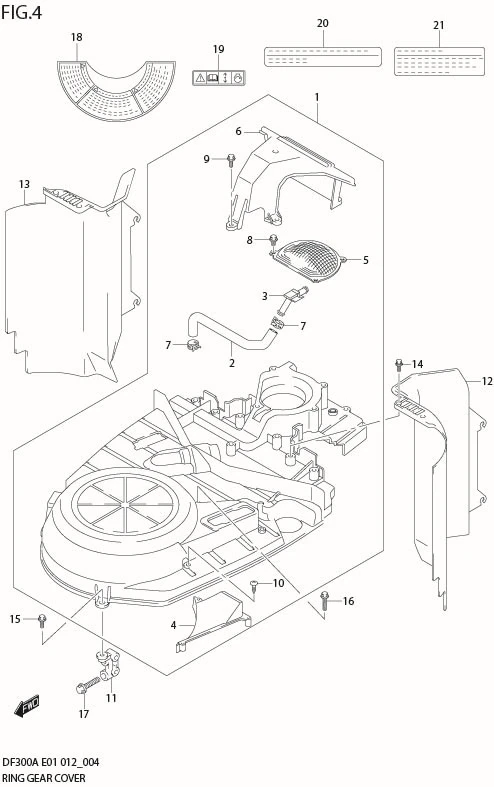

FIG 4 RING GEAR COVER (DF300A E40)

FIG 4 RING GEAR COVER (DF300A E40)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11510-98J02-000	COVER, RING GEAR	1	Rp1.580.500
2	DISCONTINUE SUB: 11174-98J00-000	?HOSE, BREATHER	1	-
3	DISCONTINUE SUB: 11176-98J00-000	?UNION, BREATHER	1	-
4	DISCONTINUE SUB: 11514-98J00-000	?PLATE, RING GEAR COVER	1	-
5	DISCONTINUE SUB: 13710-98J00-000	?ARRESTER, FLAME	1	-
6	DISCONTINUE SUB: 13811-98J00-000	?SILENCER, UPPER COVER	1	-
7	09401-18410-000	?CLIP	2	Rp27.000
8	01550-06127-000	?BOLT	4	Rp17.000
9	01550-06207-000 SUB: 01550B06207N000	?BOLT	5	Rp3.000
10	11517-98J00-000	?SCREW	3	Rp18.500
11	11515-93J00-000	BRACE, RING GEAR COVER	1	Rp208.500
12	13841-98J10-000	GUARD, AIR DUCT STBD	1	Rp767.500
13	13851-98J10-000	GUARD, AIR DUCT PORT	1	Rp767.500
14	01550-06207-000 SUB: 01550B06207N000	BOLT	4	Rp3.000
15	01550-06207-000 SUB: 01550B06207N000	BOLT	2	Rp3.000
16	DISCONTINUE SUB: 01550-06407-000	BOLT	1	-
17	01550-08357-000	BOLT	2	Rp24.000
18	61472-93E33-000 SUB: 61472-93E32-000	LABEL, MAG COVER	1	Rp98.000
19	69711-93E11-000 SUB: 69711-93E10-000	LABEL (S.I.G.P)	1	Rp39.000
20	61493-93J00-000	LABEL, CLEARANCE	1	Rp63.500
21	61494-96J00-000	LABEL, OIL	1	Rp33.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
