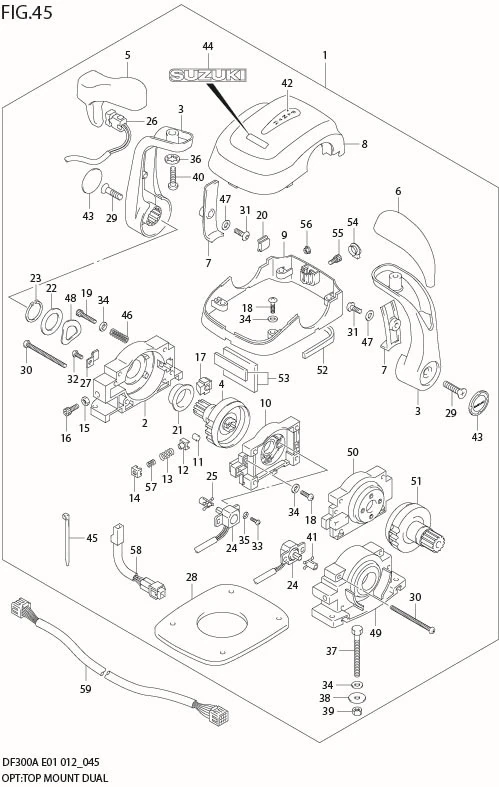

FIG 45 OPT:TOP MOUNT DUAL

FIG 45 OPT:TOP MOUNT DUAL
No No. Part Description Qty Price Per Pcs Remarks
1 67200-98J15-000
SUB: 67200-98J13-000		 REMOTE CONTROL ASSY 1 Rp17.253.000
2 67211-98J20-000 ?HOUSING (L) 1 Rp907.000
3 DISCONTINUE
SUB: 67251-98J00-000		 ?LEVER, HANDLE 2 -
4 67246-98J10-000 ?SHAFT, DRIVE (L) 1 Rp933.500
5 DISCONTINUE
SUB: 67261-98J00-000		 ?GRIP, NO.1 1 -
6 DISCONTINUE
SUB: 67261-98J10-000		 ?GRIP, NO.2 1 -
7 DISCONTINUE
SUB: 67263-98J00-000		 ?COVER, LEVER 2 -
8 67212-98J30-000 ?COVER, UPPER 1 Rp1.058.500
9 67271-98J40-000 ?COVER, BOTTOM 1 Rp283.500
10 67222-98J10-000 ?PANEL ASSY, BACK (L) 1 Rp448.000
11 67236-98J10-000 ?ROOLER, DETENT 2 Rp77.500
12 67235-98J10-000 ?GUIDE, DETENT ROOLER 2 Rp158.000
13 67237-98J40-000 ?SPRING, DETENT 2 Rp148.500
14 67233-98J10-000 ?HOLDER, DETENT SPRING 2 Rp143.000
15 DISCONTINUE
SUB: 67287-92E00-000		 ?NUT (M5) 2 -
16 67239-98J00-000 ?SCREW, DETENT ADJUST (5X14) 2 Rp70.000
17 DISCONTINUE
SUB: 67223-98J00-000		 ?PAD, BRAKE 2 -
18 DISCONTINUE
SUB: 67296-98J50-000		 ?SCREW (5X18) 8 -
19 67296-98JA0-000 ?SCREW, BRAKE ADJUST (5X30) 2 Rp41.500
20 67272-98J10-000 ?GROMMET, COVER 2 Rp58.000
21 67252-98J10-000 ?BUSH, DRIVE SHAFT 2 Rp167.500
22 DISCONTINUE
SUB: 67288-98J20-000		 ?WASHER 2 -
23 DISCONTINUE
SUB: 67292-98J00-000		 ?C-RING 2 -
24 15980-98J00-000 ?POTENTIOMETER 2 Rp2.772.000
25 DISCONTINUE
SUB: 67227-98J10-000		 ?LEVER, POTENTIOMETER NO.2 1 -
26 37850-98J02-000 ?SWITCH ASSY, PTT 1 Rp487.000
27 DISCONTINUE
SUB: 67269-98J00-000		 ?CLAMP, LEAD 1 -
28 67273-98J20-000 ?PACKING 1 Rp49.500
29 DISCONTINUE
SUB: 67296-98J60-000		 ?SCREW (8X30) 2 -
30 DISCONTINUE
SUB: 67296-98J30-000		 ?SCREW (5X65) 4 -
31 67296-98J80-000 ?SCREW (5X14) 2 Rp29.500
32 DISCONTINUE
SUB: 67296-98J00-000		 ?SCREW (5X12) 1 -
33 67296-94300-000 ?SCREW (4X10) 4 Rp10.500
34 DISCONTINUE
SUB: 67288-98J40-000		 ?WASHER 14 -
35 DISCONTINUE
SUB: 67288-98J00-000		 ?WASHER 4 -
36 DISCONTINUE
SUB: 67288-92E20-000		 ?WASHER 2 -
37 DISCONTINUE
SUB: 67226-98J00-000		 ?BOLT (5X50) 4 -
38 09160-05024-000 ?WASHER (5.5X16X1.5) 4 Rp9.500
39 DISCONTINUE
SUB: 67287-92E00-000		 ?NUT 4 -
40 DISCONTINUE
SUB: 67296-98J90-000		 ?SCREW 2 -
41 DISCONTINUE
SUB: 67227-98J00-000		 ?LEVER, POTENTIOMETER NO.1 1 -
42 DISCONTINUE
SUB: 67284-98J00-000		 ?MARK (F-N-R) 1 -
43 DISCONTINUE
SUB: 68165-98J00-000		 ?MARK, LEVER (SUZUKI) 2 -
44 DISCONTINUE
SUB: 68165-98J10-000		 ?EMBLEM (SUZUKI) 1 -
45 67269-98J30-000 ?BAND 1 Rp39.000
46 DISCONTINUE
SUB: 67288-98J10-000		 ?WASHER, SPRING 16 -
47 DISCONTINUE
SUB: 67288-98J30-000		 ?WASHER 2 -
48 DISCONTINUE
SUB: 67228-98J50-000		 ?WASHER, WAVE 2 -
49 67211-98J30-000 ?HOUSING (R) 1 Rp1.113.000
50 67222-98J20-000 ?PANEL ASSY, BACK (R) 1 Rp448.000
51 67246-98J20-000 ?SHAFT, DRIVE (R) 1 Rp933.500
52 DISCONTINUE
SUB: 67273-98J10-000		 ?PACKING (FRONT) 1 -
53 67273-98J30-000 ?PACKING (REAR) 1 Rp98.000
54 67277-98J00-000 ?GROMMET 1 Rp94.000
55 67296-98JF0-000 ?BOLT (5X14) 1 Rp45.500
56 67297-98J00-000 ?NUT 1 Rp23.500
57 67237-98J50-000 ?SPRING, DETENT 2 Rp51.500
58 36890-98J00-000 ?CONDENSER, ADAPTER HARNESS 1 Rp843.000
59-1 36620-98J33-000
SUB: 36620-98J30-000		 WIRE ASSY, REMOTE CONTROL 1 Rp3.542.000 L:6500
59-2 36620-98J43-000
SUB: 36620-98J40-000		 WIRE ASSY, REMOTE CONTROL 1 Rp4.127.000 L:9500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
