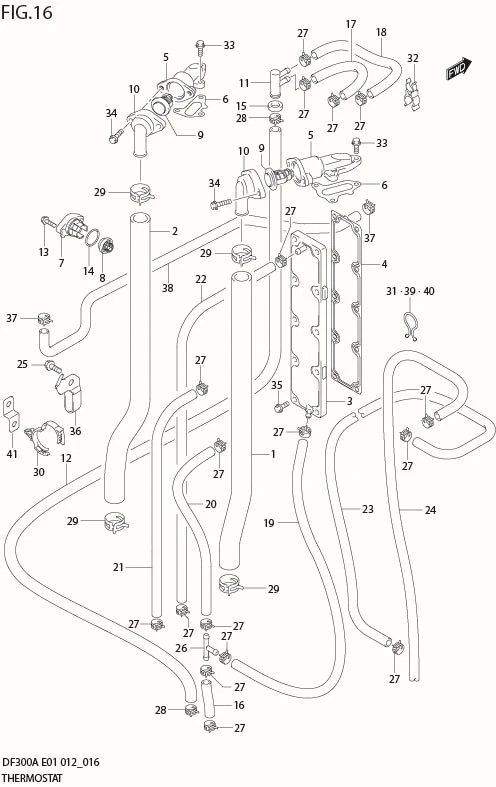

FIG 16 THERMOSTAT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11196-93J00-000	HOSE, WATER RETURN STBD	1	Rp129.000
2	11197-93J00-000	HOSE, WATER RETURN PORT	1	Rp129.000
3	DISCONTINUE SUB: 11270-93J00-000	PLATE, CYL BLOCK WTR JKT	1	-
4	11272-93J00-000	GASKET, CYL BLOCK PLATE	1	Rp66.000
5	17581-93J00-000	PIPE, OUTLET	2	Rp345.500
6	17582-93J00-000	GASKET, OUTLET PIPE	2	Rp24.500
7	17611-90J00-000 SUB: 17611-90J00-0EP	COVER, WATER PRESS VALVE	1	Rp342.000
8	17660-99E01-000	VALVE, WATER PRESSURE	1	Rp142.500
9-1	17670-90J21-000 SUB: 17670-90J20-000	THERMOSTAT (50áC)	2	Rp615.000
9-2	17670-90J11-000 SUB: 17670-90J10-000	THERMOSTAT (71áC)	1	Rp478.000	OPT
10	17681-93J00-000	COVER, THERMOSTAT	2	Rp162.000
11	17711-90J00-000	3 WAY, WATER HOSE	1	Rp31.500
12	17712-93J01-000 SUB: 17712-93J00-000	HOSE (3 WAY TO E/H COV)	1	Rp158.000
13	09116-06121-000	BOLT (6X25)	2	Rp18.000
14	09280-26006-000	O RING (D:3.1,ID:26.4)	1	Rp16.500
15	09320-12014-000	CUSHION	1	Rp12.000
16	09352-50006-600 SUB: 09352-50903-600	HOSE (5X9X600)	1	Rp46.000	L:600->60
17	09352-50006-600 SUB: 09352-50903-600	HOSE (5X9X600)	1	Rp46.000	L:600->120
18	09352-50006-600 SUB: 09352-50903-600	HOSE (5X9X600)	1	Rp46.000	L:600->190
19	09352-50006-600 SUB: 09352-50903-600	HOSE (5X9X600)	1	Rp46.000	L:600->300
20	09352-50006-600 SUB: 09352-50903-600	HOSE (5X9X600)	1	Rp46.000	L:600->330
21	09352-50006-600 SUB: 09352-50903-600	HOSE (5X9X600)	1	Rp46.000
22	09352-50006-600 SUB: 09352-50903-600	HOSE (5X9X600)	1	Rp46.000
23	09352-50006-00B SUB: 09352-50903-00B	HOSE (5X9X2000)	1	Rp158.000	L:2000->850
24	09352-50006-00B SUB: 09352-50903-00B	HOSE (5X9X2000)	1	Rp158.000	L:2000->1010
25	DISCONTINUE SUB: 01550-08127-000	BOLT	1	-
26	09367-06002-000	JOINT, 3 WAY	1	Rp21.000
27	09401-08413-000	CLIP	18	Rp19.500
28	09401-14409-000	CLIP	2	Rp23.500
29	09401-25406-000	CLIP	4	Rp35.000
30	09403-25304-000	CLAMP	1	Rp20.000
31	DISCONTINUE SUB: 09408-00008-000	CLIP (ID:20)	1	-
32	DISCONTINUE SUB: 09408-00189-000	CLAMP	1	-
33	01550-06207-000 SUB: 01550B06207N000	BOLT	6	Rp3.000
34	01550-06207-000 SUB: 01550B06207N000	BOLT	4	Rp3.000
35	01550-06257-000 SUB: 01550B06257N000	BOLT	10	Rp3.500
36	DISCONTINUE SUB: 17713-98J00-000	HOLDER, WATER HOSE	1	-
37	09401-15414-000	CLIP	2	Rp19.000
38	17915-98J02-000 SUB: 17915-98J01-000	HOSE, WATER FLUSH	1	Rp153.000
39	DISCONTINUE SUB: 09408-00024-000	CLIP (ID:23)	1	-
40	DISCONTINUE SUB: 09408-00021-000	CLIP (ID:16)	1	-
41	36617-93J10-000	BRACKET, HOSE CLAMP	1	Rp17.000
