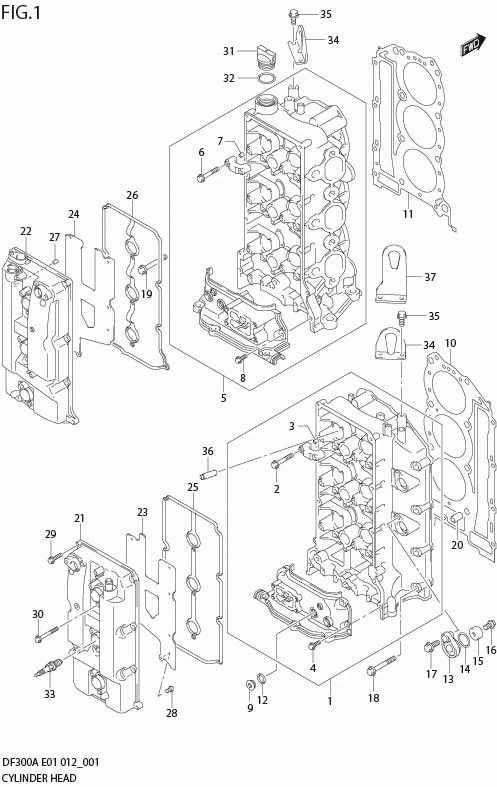

FIG 1 CYLINDER HEAD

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11101-98J10-000 SUB: 11101-98J02-000	HEAD ASSY, CYLINDER STBD	1	Rp20.893.500
2	11128-90J00-000	?BOLT, CAM SHAFT HOUSING	16	Rp24.000
3	02112-0612A-000 SUB: 02112B0612AN000	SCREW	1	Rp3.500
3	09206-08001-000 SUB: 09206B08001N000	?PIN (8X11)	14	Rp5.500
4	01550-06207-000 SUB: 01550B06207N000	?BOLT	4	Rp3.000
5	11103-98J02-000	HEAD ASSY, CYLINDER PORT	1	-
6	11128-90J00-000	?BOLT, CAM SHAFT HOUSING	16	Rp24.000
7	09206-08001-000 SUB: 09206B08001N000	?PIN (8X11)	14	Rp5.500
8	01550-06207-000 SUB: 01550B06207N000	?BOLT	2	Rp3.000
9	11116-93J01-000	PLUG	4	Rp27.000
10	11141-98J10-000	GASKET, CYL HEAD STBD	1	Rp1.030.000
11	11142-98J10-000	GASKET, CYL HEAD PORT	1	Rp1.021.500
12	09168-16009-000	GASKET (16X22X0.8)	4	Rp15.500
13	11261-93J00-000	COVER, PROTECTION ANODE	4	Rp132.500
14	09280-22019-000	O RING (D:1.9,ID:21.8)	4	Rp15.500
15	55321-87J01-000 SUB: 55321-87J00-000	ANODE, PROTECTION	4	Rp79.500
16	09103-06281-000	BOLT (6X14)	4	Rp20.500
17	01550-08207-000	BOLT	4	Rp19.000
18	01550-08607-000	BOLT	5	Rp38.000
19	01550-08607-000	BOLT	4	Rp38.000
20	09206-14004-000	PIN (14X11.4X23)	4	Rp32.000
21	DISCONTINUE SUB: 11170-93J01-000	COVER, CYL HEAD STBD	1	-
22	11180-98J01-000	COVER, CYLINDER HEAD PORT	1	Rp2.333.500
23	DISCONTINUE SUB: 11173-93J00-000	PLATE, BREATHER STBD	1	-
24	DISCONTINUE SUB: 11183-93J00-000	PLATE, BREATHER PORT	1	-
25	11179-93J00-000	GASKET, CYL HEAD COVER STBD	1	Rp200.500
26	11189-93J00-000	GASKET, CYL HEAD COVER PORT	1	Rp189.500
27	09206-08001-000 SUB: 09206B08001N000	PIN (8X11)	1	Rp5.500
29	01547-06257-000	BOLT	16	Rp14.000
30	01547-0650A-000 SUB: 01547-06507-000	BOLT	6	Rp7.000
31	11382-93J00-000	CAP, OIL FILLER	1	Rp52.000
32	09280-26006-000	O RING (D:3.1,ID:26.4)	1	Rp16.500
33	09482-00427-000	SPARK PLUG (NGK, BKR6E)	6	Rp55.000
34	DISCONTINUE SUB: 11291-93J00-000	HOOK, ENGINE	2	-
35	01550-08207-000	BOLT	4	Rp19.000
36	11115-93J10-001	GUIDE, VALVE OS	24	Rp321.000	OPT
37	11291-98J00-000	HOOK, ENGINE	1	Rp110.500	OPT
