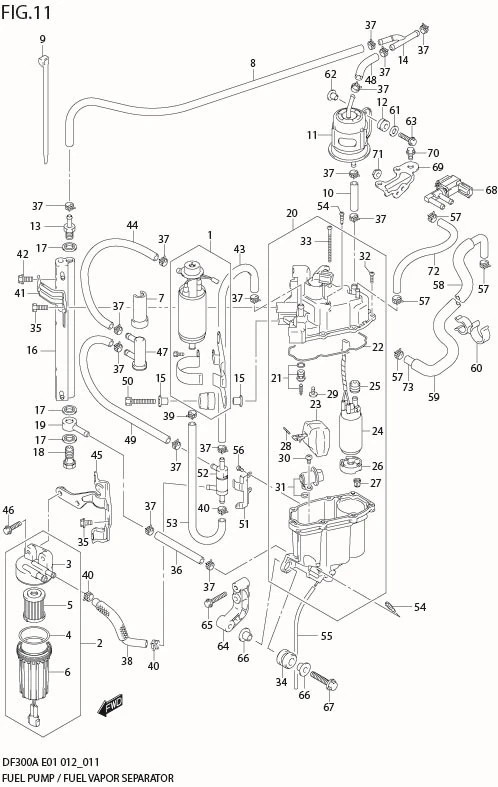

FIG 11 FUEL PUMP / FUEL VAPOR SEPARATOR (DF300A E40)

FIG 11 FUEL PUMP / FUEL VAPOR SEPARATOR (DF300A E40)
No No. Part Description Qty Price Per Pcs Remarks
1 15100-94900-000 PUMP ASSY, FUEL (L) 1 Rp6.100.500
2 15410-93J11-000
SUB: 15410-93J10-000		 FILTER, FUEL (L) 1 Rp1.325.500
3 15411-93J10-000 ?CAP, FILTER 1 Rp523.500
4 15415-93J10-000 ?SEAL, NO.1 1 Rp103.500
5 15412-93J10-000 ?FILTER ASSY, FUEL 1 Rp175.500
6 15413-93J10-000 ?CASE ASSY, FILTER 1 Rp787.000
7 15644-93J00-000 COVER, FUEL FILTER 3 Rp79.500
8 15633-93J20-000 HOSE, FUEL (H) 1 Rp667.500
9 15646-93J00-000 CLAMP, FUEL FILTER 1 Rp38.500
10 09343-75002-600
SUB: 09343-75001-600		 HOSE (7.5X13.5X600) 1 Rp351.000 L:600->65
11 15440-93J10-000 FILTER, FUEL (EPI) 1 Rp742.000
12 09320-08501-000 CUSHION 2 Rp21.500
13 15773-90J10-000
SUB: 15773-90J00-000		 UNION, FUEL HOSE (H) 1 Rp200.000
14 DISCONTINUE
SUB: 15830-93J00-000		 UNION, 3 WAY 1 -
15 09169-06062-000 WASHER 4 Rp18.500
16 15770-93J00-000 COOLER, FUEL 1 Rp779.500
17 15762-90J00-000 GASKET, FUEL COOLER UNION 3 Rp64.000
18 09360-12013-000 UNION 1 Rp79.000
19 15830-90J00-000 UNION, FUEL COOLER 1 Rp211.500
20 15600-98J10-000 SEPARATOR ASSY, FUEL VAPOR 1 Rp10.239.000
21 13370-93J10-000
SUB: 13370-93J00-000		 ?VALVE ASSY, NEEDLE 1 Rp494.500
22 15626-93J10-000 ?GASKET, SEPARATOR 1 Rp166.000
23 DISCONTINUE
SUB: 15650-93J00-000		 ?FLOAT ASSY 1 -
24 15200-98J10-000 ?PUMP ASSY, FUEL (H) 1 Rp3.614.500
25 15647-93J10-000 ?BUSH, FUEL PUMP 1 Rp127.000
26 DISCONTINUE
SUB: 15641-90J10-000		 ?SPACER, FUEL PUMP 1 -
27 15642-90J00-000 ?FILTER, FUEL PUMP 1 Rp83.000
28 15654-99E00-000 ?PIN, FLOAT 1 Rp25.000
29 13614-93J00-000 ?SCREW 1 Rp23.500
30 DISCONTINUE
SUB: 15631-99E10-000		 ?SCREW, REGULATOR 1 -
31 15760-93J01-000
SUB: 15760-93J00-000		 ?REGULATOR, FUEL PRESSURE 1 Rp1.270.500
32 15628-99E00-000 ?SCREW 6 Rp25.000
33 DISCONTINUE
SUB: 15627-93J00-000		 ?SCREW 1 -
34 DISCONTINUE
SUB: 09320-12072-000		 CUSHION 3 -
35 DISCONTINUE
SUB: 15675-93J00-000		 BOLT, COOLER BRACKET 3 -
36 09343-75002-600
SUB: 09343-75001-600		 HOSE (7.5X13.5X600) 1 Rp351.000 L:600->50
37 09401-11414-000 CLIP (ID:11.5) 14 Rp25.000
38 15636-98J21-000
SUB: 15636-98J20-000		 HOSE, FUEL (L) 1 Rp553.000
39 15686-93J00-000 CLIP 1 Rp50.000
40 15685-93J00-000 CLIP 3 Rp50.500
41 DISCONTINUE
SUB: 15672-93J00-000		 BRACKET, FUEL COOLER 1 -
42 01500-0616A-000
SUB: 01500-06167-000		 BOLT 4 Rp6.500
43 15635-93J20-000 HOSE, FUEL (H) 1 Rp814.000
44 15632-93J20-000 HOSE, FUEL (H) 1 Rp840.000
45 DISCONTINUE
SUB: 15673-98J00-000		 BRACKET, FUEL FILTER 1 -
46 01550-06257-000
SUB: 01550B06257N000		 BOLT 2 Rp3.500
47 15643-93J00-000 FILTER, FUEL (L) 1 Rp283.000
48 09343-75002-600
SUB: 09343-75001-600		 HOSE (7.5X13.5X600) 1 Rp351.000 L:600->65
49 15634-93J20-000 HOSE, FUEL (H) 1 Rp819.500
50 01570-06357-000 BOLT 2 Rp23.500
51 15674-93J00-000 BRACKET, CHECK VALVE 1 Rp138.500
52 15645-93J10-000 VALVE, CHECK 1 Rp741.500
53 15637-93J20-000 HOSE, FUEL (L) 1 Rp574.000
54 15629-99E10-000 SCREW, DRAIN 2 Rp55.000
55 DISCONTINUE
SUB: 15683-87J00-000		 HOSE, DRAIN 1 -
56 DISCONTINUE
SUB: 02112-0406B-000		 SCREW 3 -
57 09401-08412-000 CLIP 4 Rp20.000
58 DISCONTINUE
SUB: 18498-87JC0-000		 PROTECTOR, EVAP HOSE (L:450) 1 -
59 DISCONTINUE
SUB: 18498-87JC0-000		 PROTECTOR, EVAP HOSE (L:450) 1 - L:450->300
60 09408-00105-000 CLAMP 1 Rp37.000
61 09160-06006-000
SUB: 09160-06084-000		 WASHER (6.5X18X1.6) 2 Rp11.000
62 09169-06062-000 WASHER 2 Rp18.500
63 DISCONTINUE
SUB: 01500-06257-000		 BOLT 2 -
64 15671-93J00-000 BRACKET, VAPOR SEPARATOR 1 Rp230.000
65 01550-06357-000 BOLT 2 Rp19.500
66 09169-08042-000 WASHER 6 Rp43.000
67 01550-08407-000 BOLT 3 Rp24.500
68 18117M73M00-000
SUB: 18117M52G10-000		 VALVE ASSY, EVAP PURGE 1 Rp486.500
69 DISCONTINUE
SUB: 18417-93J00-000		 BRACKET, PURGE VALVE 1 -
70 01550-06127-000 BOLT 2 Rp17.000
71 08316-10067-000 NUT 1 Rp16.000
72 09352-50823-600
SUB: 09352-50823L600		 HOSE (5X8.2X600) 1 Rp7.000 L:600->220
73 09352-50005-00B
SUB: 09352-50823-00B		 HOSE (5X8.2X2000) 1 Rp122.000 L:2000->810
