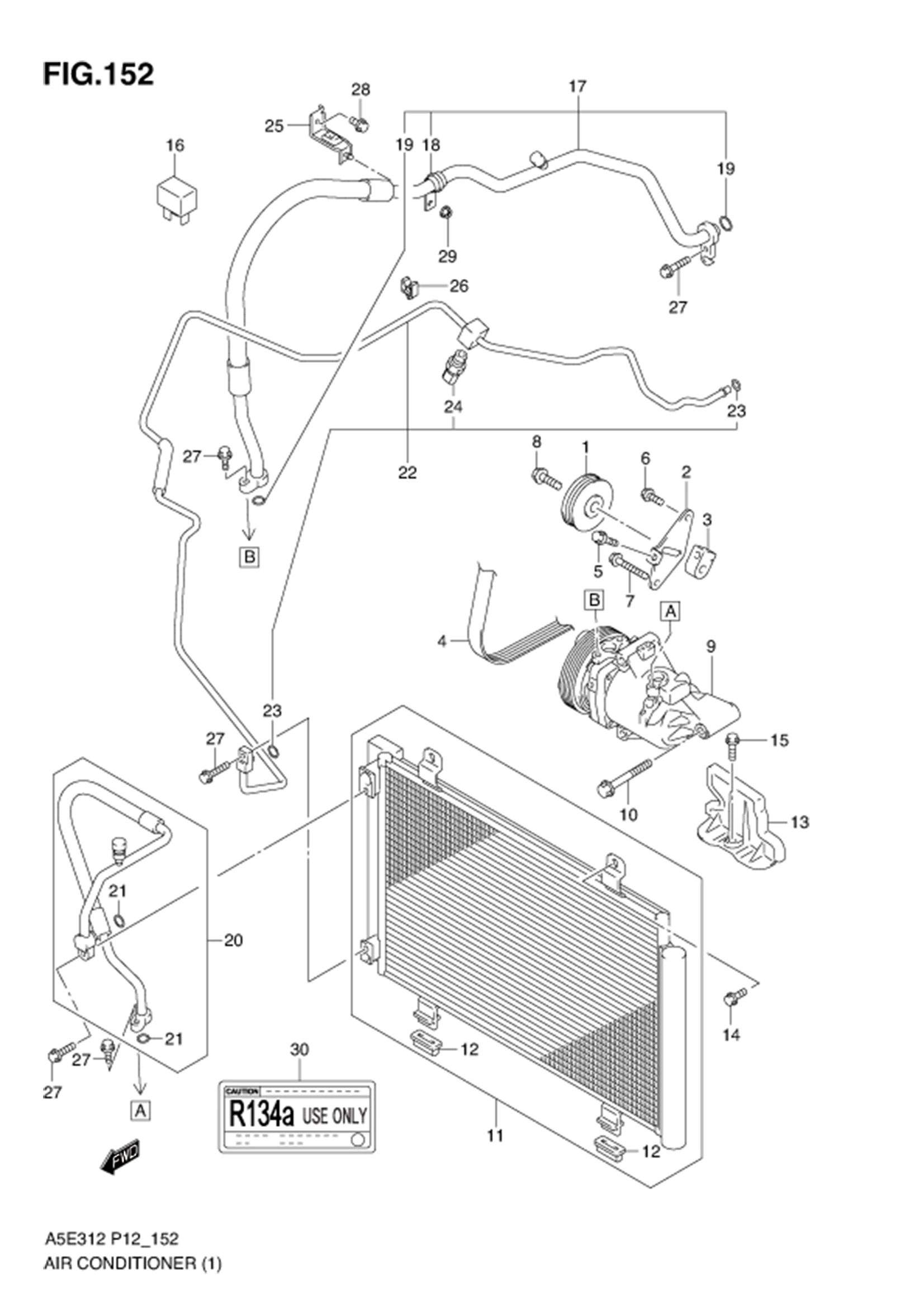

FIG.152 AIR CONDITIONER (TYPE 1)

FIG.152 AIR CONDITIONER (TYPE 1)
No No. Part Description Qty Price Per Pcs Remarks
1 95130M68K00-000 PULLEY ASSY,BELT TENSION 1 Rp646.500
2 95123M68K00-000 BRACKET,TENSION PULLEY 1 Rp53.000
3 95125M68K00-000 TENSIONER,COMPRESSOR 1 Rp55.000
4 95141M65L00-000 V-BELT (4PK 780) 1 Rp135.000
5 95126-58J00-000
SUB: 09103-08352-000		 BOLT (8X75) 1 Rp48.500
6 01550-0825A-000
SUB: 01550B0825AN000		 BOLT 1 Rp3.500
7 01550-0860A-000 BOLT 1 Rp5.500
8 01550-1040A-000
SUB: 01550B1040AN000		 BOLT 1 Rp7.000
9 95200M83KA0-000 COMPRESSOR ASSY 1 Rp6.627.000
10 01550-0875A-000 BOLT 3 Rp6.000
11 95310M83K00-000 CONDENSER ASSY 1 Rp2.991.000
12 DISCONTINUE
SUB: 95851-75F00L000		 •BUSH,CONDENSER 2 -
13 95340M83K00-000 SEAL,CONDENSER LOWER 1 Rp29.500
14 02162-0610A-000 BOLT 2 Rp5.000
15 02162-0616A-000 BOLT 1 Rp3.000
16 38860-76F01-000
SUB: 38860B76F01N000		 RELAY,A/C 1 Rp47.000
17 95710M83K00-000 HOSE,SUCTION 1 Rp739.000
18 95771-70G10-000
SUB: 95771M70G10-000		 •CLAMP 1 Rp22.500
19 95896-50G00-000
SUB: 95896M50G00-000		 •O RING 2 Rp19.000
20 95720M83K00-000 HOSE,DISCHARGE 1 Rp563.500
21 95895-50G00-000
SUB: 95895M50G00-000		 •O RING 2 Rp12.500
22 95731M83K00-000 PIPE,LIQUID 1 Rp416.000
23 95891-50G00-000
SUB: 95891M50G00-000		 •O RING 2 Rp12.500
24 95546-58J00-000
SUB: 95546B58J00N000		 •SENSOR,PRESSURE 1 Rp326.000
25 95781M75J00-000 STAY,SUCT HOSE 1 Rp44.000
26 09403M08331-000
SUB: 09403-08331-000		 CLAMP 4 Rp6.500
27 01550-0620B-000
SUB: 01550B0620AN000		 BOLT 5 Rp3.500
28 02162-0612A-000 SCREW 1 Rp11.000
29 08316-1006A-000
SUB: 08316B1006AN000		 NUT 1 Rp2.000
30 DISCONTINUE
SUB: 95951M59K00-000		 PLATE,CAUTION 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
