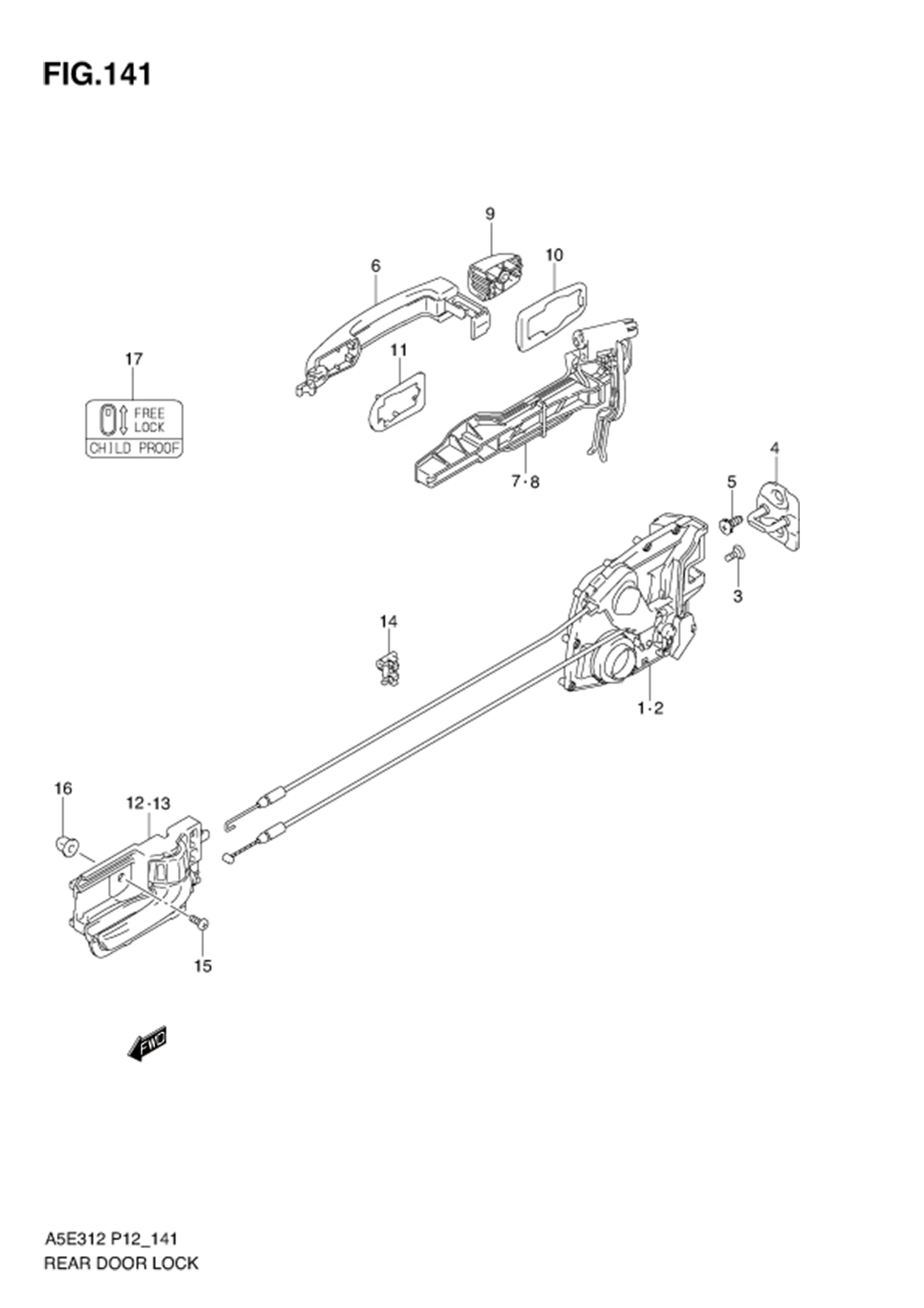

FIG.141 REAR DOOR LOCK

FIG.141 REAR DOOR LOCK

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	82301M83K62-000	LATCH ASSY,REAR DOOR RH	1	Rp909.000
2	82302M83K62-000	LATCH ASSY,REAR DOOR LH	1	Rp954.000
3	09137-06028-000	SCREW (6X18)	6	Rp18.500
4	DISCONTINUE SUB: 82610M75J00-000	STRIKER,DOOR LATCH	2	-
5	09137-08014-000 SUB: 09137-08004-000	SCREW (8X18)	4	Rp23.000
6	82812M83K00-5PK	HANDLE,SIDE DOOR OUT (BLACK)	2	Rp73.500	TYPE 1,TYPE 2
7	82831M83K30-000	FREAME,REAR DOOR RH	1	Rp161.000
8	82841M83K30-000	FREAME,REAR DOOR LH	1	Rp165.500
9	82833M83K00-5PK	CAP,REAR DOOR OUT (BLACK)	2	Rp39.500	TYPE 1,TYPE 2
10	82815M83K00-000	CUSHION,SIDE DOOR OUT	2	Rp16.000
11	82814M83K00-000	PAD,REAR DOOR OUT	2	Rp10.000
12	83110M75J31-BWR SUB: 83110M75J30-BWR	HANDLE,DOOR INSIDE RH (GRAY)	1	Rp80.000
13	83130M75J31-BWR SUB: 83130M75J30-BWR	HANDLE,DOOR INSIDE LH (GRAY)	1	Rp80.000
14	83271M50E00-000	CLIP,INSIDE HANDLE CABLE	2	Rp6.500
15	09132-05058-000	SCREW (5X12)	2	Rp14.000
16	DISCONTINUE SUB: 09148-05049-000	NUT	2	-
17	DISCONTINUE SUB: 86951M59K00-000	PLATE,CHILD LOCK CAUTION	2	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
