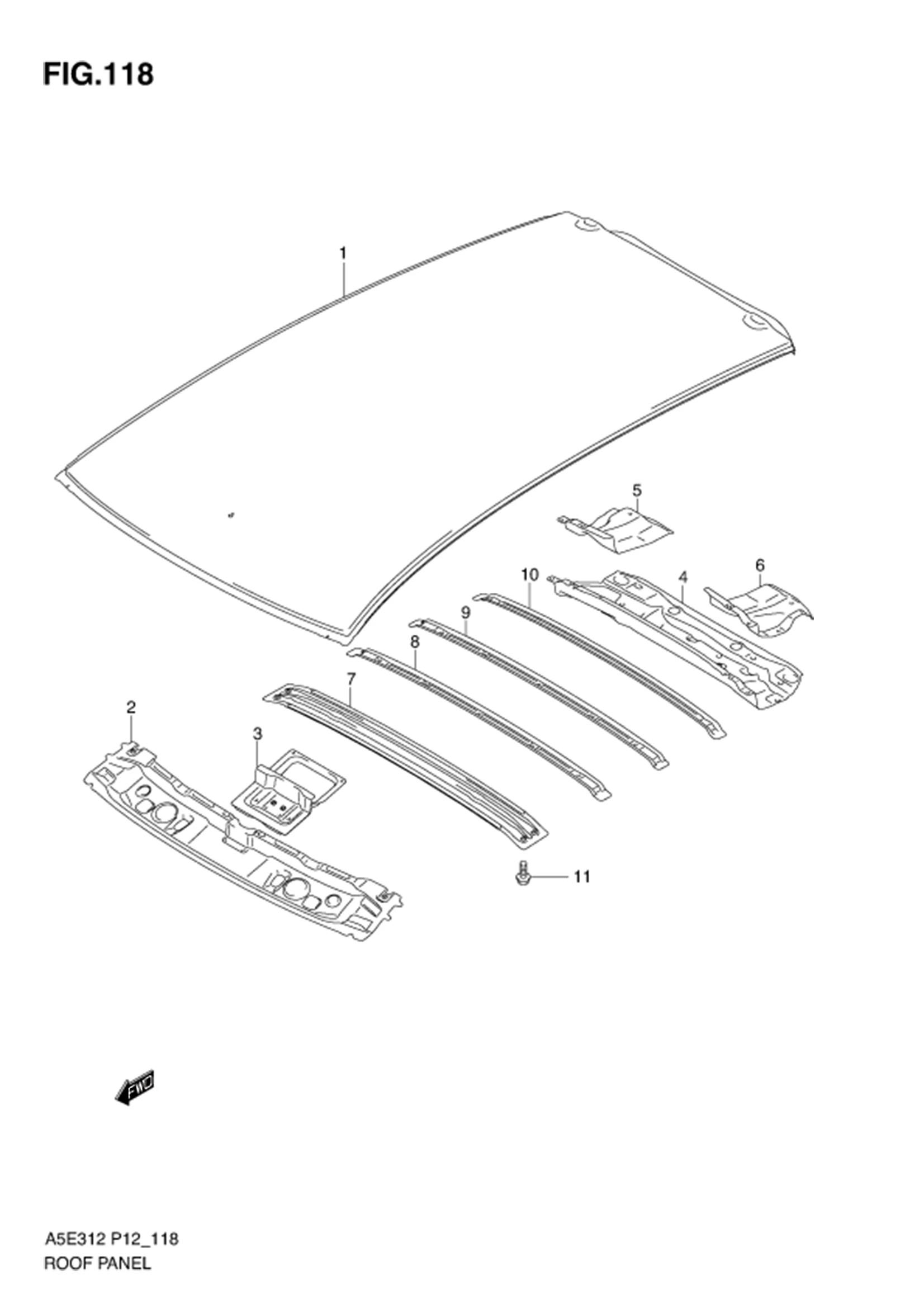

FIG.118 ROOF PANEL

FIG.118 ROOF PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	65111M83K00-000	PANEL,ROOF	1	Rp1.691.000
2	65121M51K00-000	RAIL,ROOF FRONT INNER	1	Rp248.000
3	65140M51K00-000	BRACKET,ROOM MIRROR	1	Rp79.000
4	65131M83K00-000	MEMBER,ROOF BACK INNER	1	Rp196.500
5	65132M83K00-000	REINF,BACK DOOR HINGE RH	1	Rp79.000
6	65133M83K00-000	REINF,BACK DOOR HINGE LH	1	Rp79.000
7	65151M83K00-000	MEMBER,ROOF PANEL CTR NO.1	1	Rp179.500
8	65161M83K00-000	MEMBER,ROOF PANEL CTR NO.2	1	Rp52.000
9	65162M83K00-000	MEMBER,ROOF PANEL CTR NO.3	1	Rp52.000
10	65163M83K00-000	MEMBER,ROOF PANEL CTR NO.4	1	Rp57.000
11	01550M0612A-000	BOLT	10	Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
