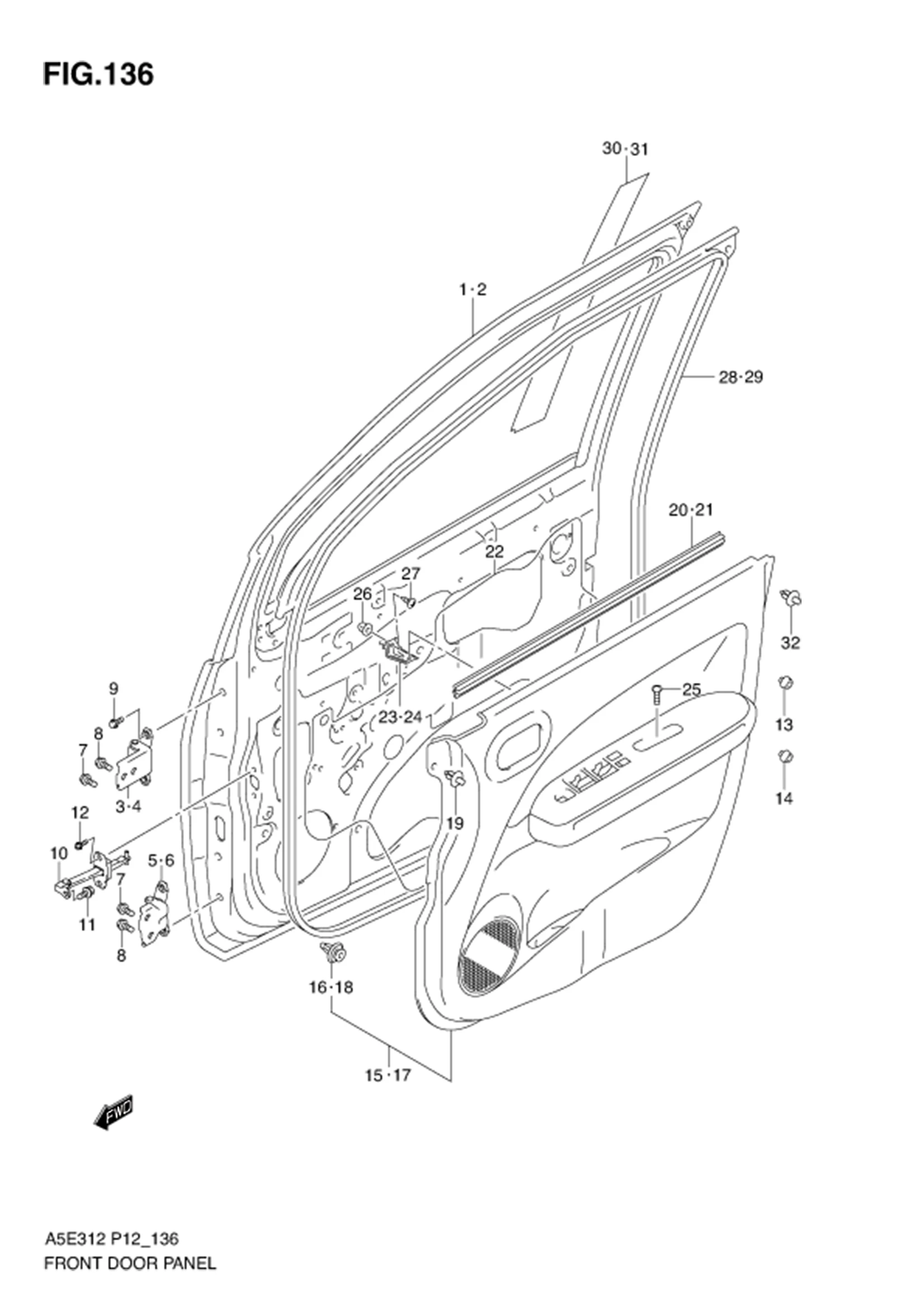

FIG.136 FRONT DOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	68001M83K03-000 SUB: 68001M83K01-000	PANEL ASSY,FRONT DOOR RH	1	Rp4.046.000	TYPE 2
1-1	68001M83K03-000 SUB: 68001M83K00-000	PANEL ASSY,FRONT DOOR RH	1	Rp4.046.000	TYPE 1
2-2	68002M83K03-000 SUB: 68002M83K01-000	PANEL ASSY,FRONT DOOR LH	1	Rp4.046.000	TYPE 2
2-1	68002M83K03-000 SUB: 68002M83K00-000	PANEL ASSY,FRONT DOOR LH	1	Rp4.046.000	TYPE 1
3	69310-65J00-000 SUB: 69310M65J00-000	HINGE,DOOR UPPER RH	1	Rp473.500
4	DISCONTINUE SUB: 69320M65J00-000	HINGE,DOOR UPPER LH	1	-
5	69320-63J00-000	HINGE,DOOR LOWER RH	1	Rp437.000
6	69310-63J00-000	HINGE,DOOR LOWER LH	1	Rp437.000
7	01550-0820A-000 SUB: 01550B0820AN000	BOLT	4	Rp5.500
8	09113-08001-000	BOLT (8X20)	4	Rp18.500
9	09103M08557-000 SUB: 09103-08389-000	BOLT (8X24)	8	Rp8.500
10	81810M75J03-000 SUB: 81810M75J02-000	STOP,SIDE DOOR OPEN	2	Rp72.000
11	09112-08015-000	BOLT (8X25)	2	Rp32.000
12	09122-86004-000	BOLT (6X20)	4	Rp15.000
13	82711-51K00-000	CUSHION	2	Rp39.000
14	82711-65J00-000	CUSHION	2	Rp34.000
15-1	83710M83K70-000	TRIM,FRONT DOOR RH (GRAY)	1	-	TYPE 1
15-2	83710M83K90-ADH	TRIM,FRONT DOOR RH (GRAY)	1	Rp1.441.000	TYPE 2
16	09409-10327-000 SUB: 09409M10312-000	•CLIP	9	Rp5.000
17-2	83720M83KB0-ADH	TRIM,FRONT DOOR LH (GRAY)	1	Rp1.441.500	TYPE 2
17-1	83720M83KB0-FYZ	TRIM,FRONT DOOR LH (GRAY)	1	Rp1.479.000	TYPE 1
18	09409-10327-000 SUB: 09409M10312-000	•CLIP	9	Rp5.000
19	09409-06314-P4Z	CLIP (GRAY)	2	Rp22.000
20	83851M83K00-000	WEATHERSTRIP,DOOR INNNER RH	1	Rp144.500
21	83861M83K00-000	WEATHERSTRIP,DOOR INNNER LH	1	Rp144.500
22	83911M51K10-000 SUB: 83911M51K00-000	COVER,FRONT DOOR SEALING	2	Rp10.000
23	83751-75HA0-000 SUB: 83751M75HA0-000	BRACKET,FRONT DOOR TRIM RH	1	Rp8.000
24	83756-75HA0-000 SUB: 83756M75HA0-000	BRACKET,FRONT DOOR TRIM LH	1	Rp8.000
25	09132-05058-000	SCREW (5X12)	2	Rp14.000
26	71851M70F00-000	NUT	2	Rp4.000
27	03241M0612A-000	SCREW	2	Rp6.500
28	84641M83K00-000	WEATHERSTRIP,FRONT DOOR OPENING RH	1	Rp374.500
29	84651M83K00-000	WEATHERSTRIP,FRONT DOOR OPENING LH	1	Rp374.500
30	83921M83K10-0CB SUB: 83921M83K00-0CB	TAPE,FRONT DOOR OUTER RH	1	Rp304.500
31	83922M83K10-0CB SUB: 83922M83K00-0CB	TAPE,FRONT DOOR OUTER LH (BLACK)	1	Rp304.500
32	09409M07308-P4Z	CLIP (GRAY)	2	Rp7.500
