SPLASH

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.111 FRONT HOOD PANEL (TYPE 1)FIG.112 FRONT HOOD PANEL (TYPE 2)FIG.113 FRONT FENDERFIG.114 FRONT BODY PANEL (TYPE 1)FIG.115 FRONT BODY PANEL (TYPE 2)FIG.116 FLOOR PANELFIG.117 SIDE BODY PANELFIG.118 ROOF PANELFIG.119 FRONT BUMPER (TYPE 1)FIG.120 FRONT BUMPER (TYPE 2)FIG.121 REAR BUMPERFIG.122 INSTRUMENT PANELFIG.123 VENTILATORFIG.124 HEATER UNITFIG.125 HEATER UNIT (FROM 2012-11)FIG.126 HEATER CONTROLFIG.127 CONSOLE BOXFIG.128 FLOOR CARPETFIG.129 INTERIOR TRIMFIG.130 COVER/CAPFIG.131 FUEL LID OPENERFIG.132 ROOF LININGFIG.133 ROOF MOLDING/GARNISHFIG.134 EMBLEMFIG.135 WINDSHIELD GLASSFIG.136 FRONT DOOR PANELFIG.137 FRONT DOOR REGULATORFIG.138 FRONT DOOR LOCKFIG.139 REAR DOOR PANELFIG.140 REAR DOOR REGULATORFIG.141 REAR DOOR LOCKFIG.142 BACK DOOR PANELFIG.143 BACK DOOR LOCKFIG.144 MIRROR/SUNVISOR (TYPE 1)FIG.145 MIRROR/SUNVISOR (TYPE 2)FIG.146 SEAT BELTFIG.147 FRONT SEATFIG.148 REAR SEATFIG.149 FUEL TANK (TYPE 1)FIG.150 FUEL TANK (TYPE 2)FIG.151 TOOLFIG.152 AIR CONDITIONER (TYPE 1)FIG.153 AIR CONDITIONER (TYPE 2)FIG.154 COMPRESSOR

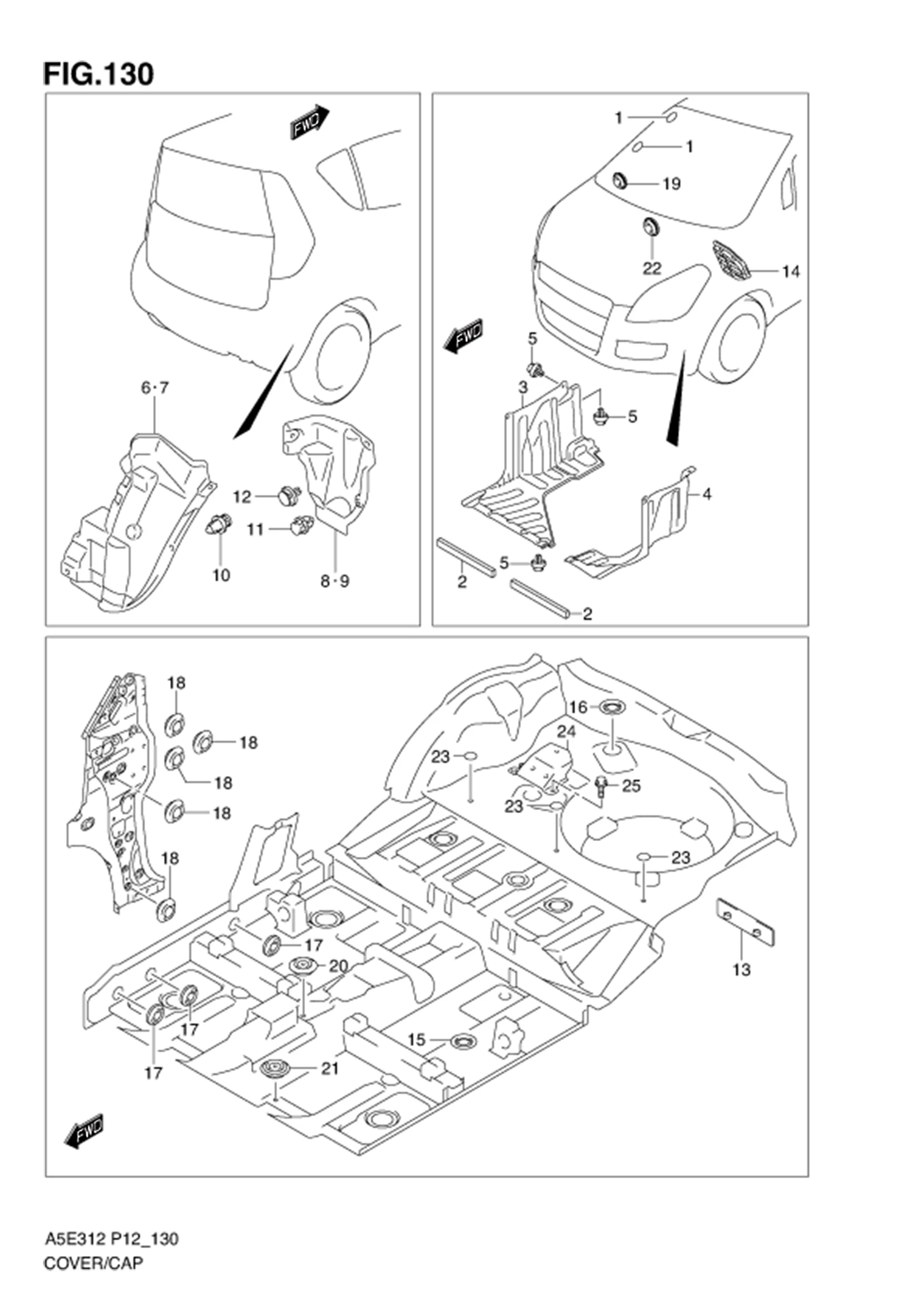

FIG.130 COVER/CAP

FIG.130 COVER/CAP
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 84761-50X50-000		 FILM,FR PILLAR INNER 2 -
2 71772M85L00-000 PAD,RDTR SUPPORT LWR MBR 2 Rp8.000 TYPE 2
3 72391M83K10-000 COVER,ENGINE UNDER RH 1 Rp105.000
4-1 72392M63J10-000 COVER,ENGINE UNDER LH 1 Rp73.000 MT
4-2 72392M85L10-000 COVER,ENGINE UNDER LH 1 Rp88.500 AT
5 09409M07L01-000 CLIP 6 Rp5.000
6 75511M83K00-000 LINING,RR FENDER RH 1 Rp154.000
7 75521M83K00-000 LINING,RR FENDER LH 1 Rp154.000
8 75551M83K00-000 LINING,RR FENDER FR RH 1 Rp44.500
9 75561M83K00-000 LINING,RR FENDER FR LH 1 Rp52.500
10 09409M07L01-000 CLIP,FENDER LINING 7 Rp5.000
11 09409M07L01-000 CLIP,FENDER LINING FR 6 Rp5.000
12 09409M15L01-000 CLIP,FENDER LINING FR 2 Rp5.500
13 DISCONTINUE
SUB: 75542-63J00-000		 COVER,MAIN FLOOR END 2 -
14 DISCONTINUE
SUB: 75420M63J00-000		 CAP,DASH LOWER 2 -
15 75431-75J00-000
SUB: 75431M75J00-000		 CAP,MAIN FLOOR DRAIN 4 Rp8.000
16 75431-75J00-000
SUB: 75431M75J00-000		 CAP,RR FLOOR DRAIN 7 Rp8.000
17 09250M20031-000
SUB: 09250-20015-000		 CAP,SIDE SILL FR (OD:28.5) 8 Rp4.500
18 09250-15012-000
SUB: 09250M15L01-000		 CAP,DASH SIDE (OD:23.5) 10 Rp5.000
19 09250-15012-000
SUB: 09250M15L01-000		 CAP,COWL TOP (OD:23.5) 2 Rp5.000
20 09250-15L03-000
SUB: 09250-15015-000		 CAP,FLOOR TUNNEL (OD:23.5) 1 Rp5.500
21 09250M25L02-000
SUB: 09250M25L01-000		 CAP,MAIN FLOOR FR (OD:31) 2 Rp5.500
22 09250M20031-000
SUB: 09250-20015-000		 CAP,DASH PANEL (OD:28.5) 1 Rp4.500
23 DISCONTINUE
SUB: 84761-50X50-000		 SEAL,CARPET HOLE 3 -
24 75611M83K00-000 BRACKET,RR SEAT RR CTR 1 Rp187.500
25 01551-1020A-000 BOLT 4 Rp18.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
